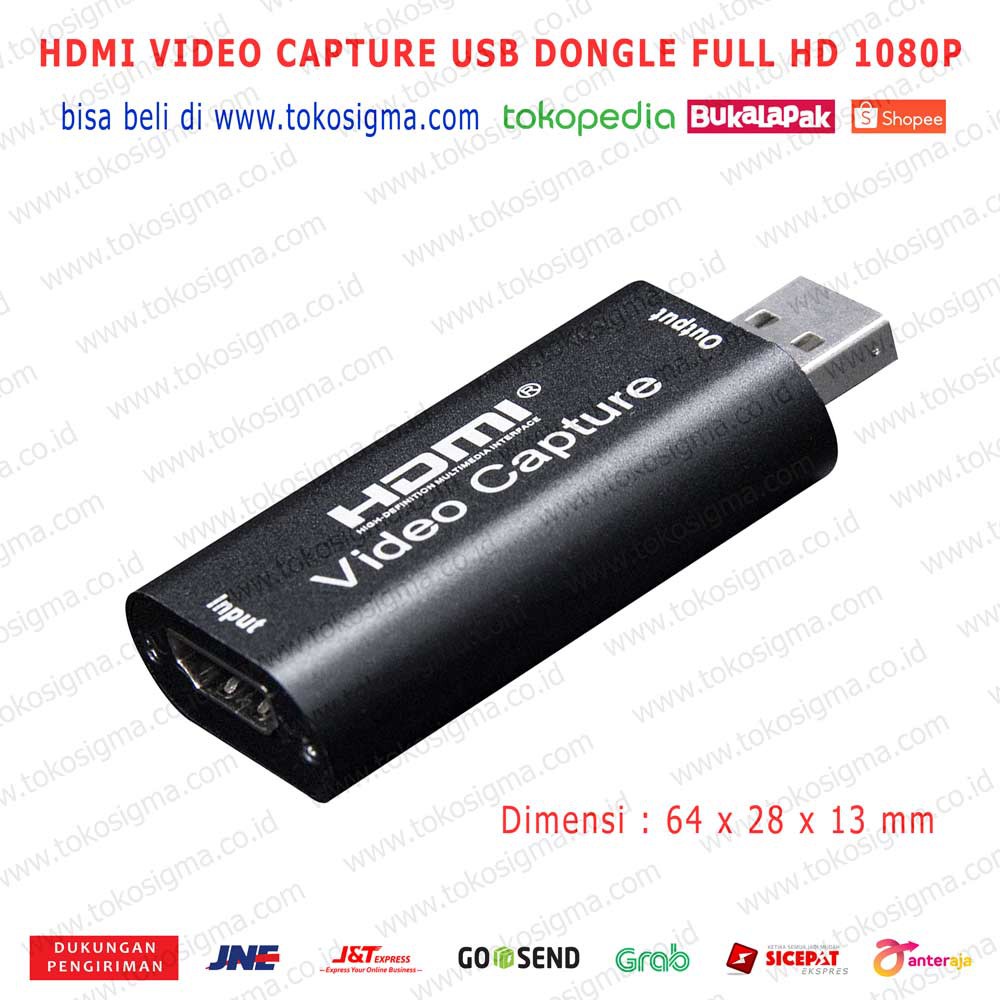

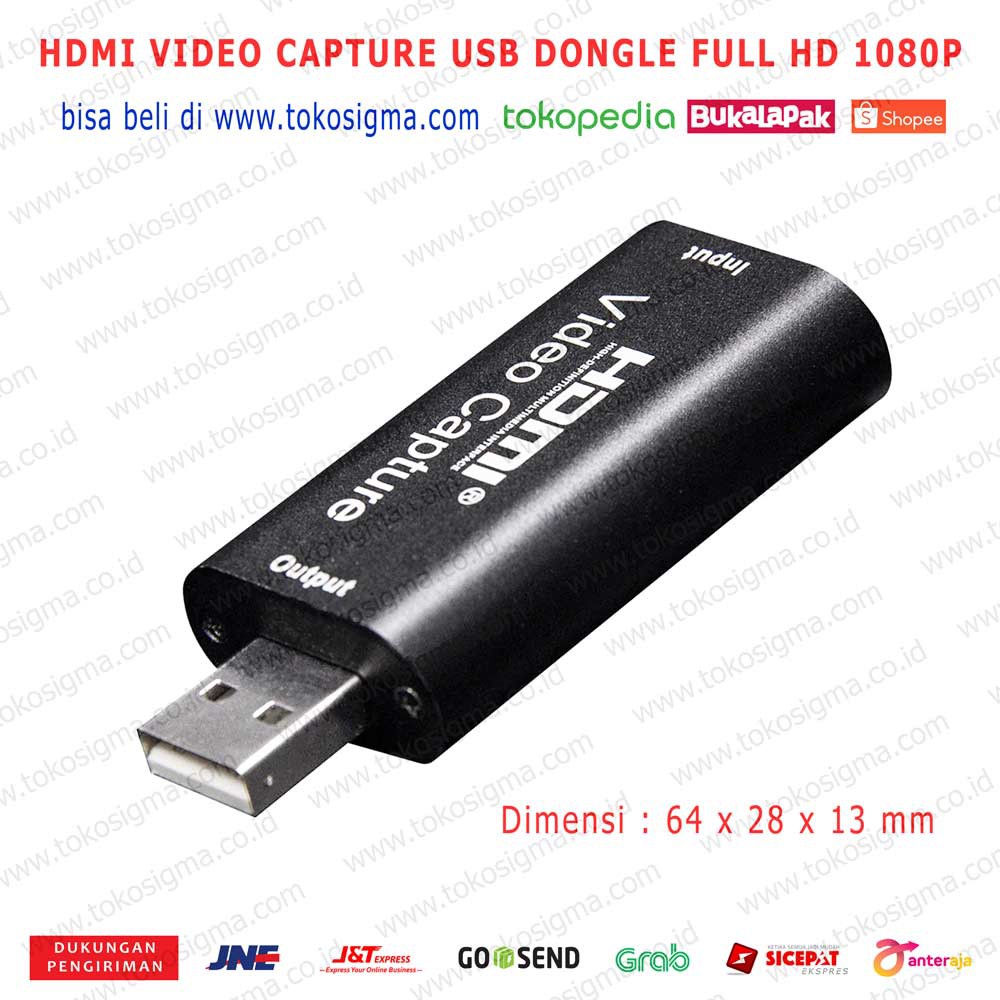

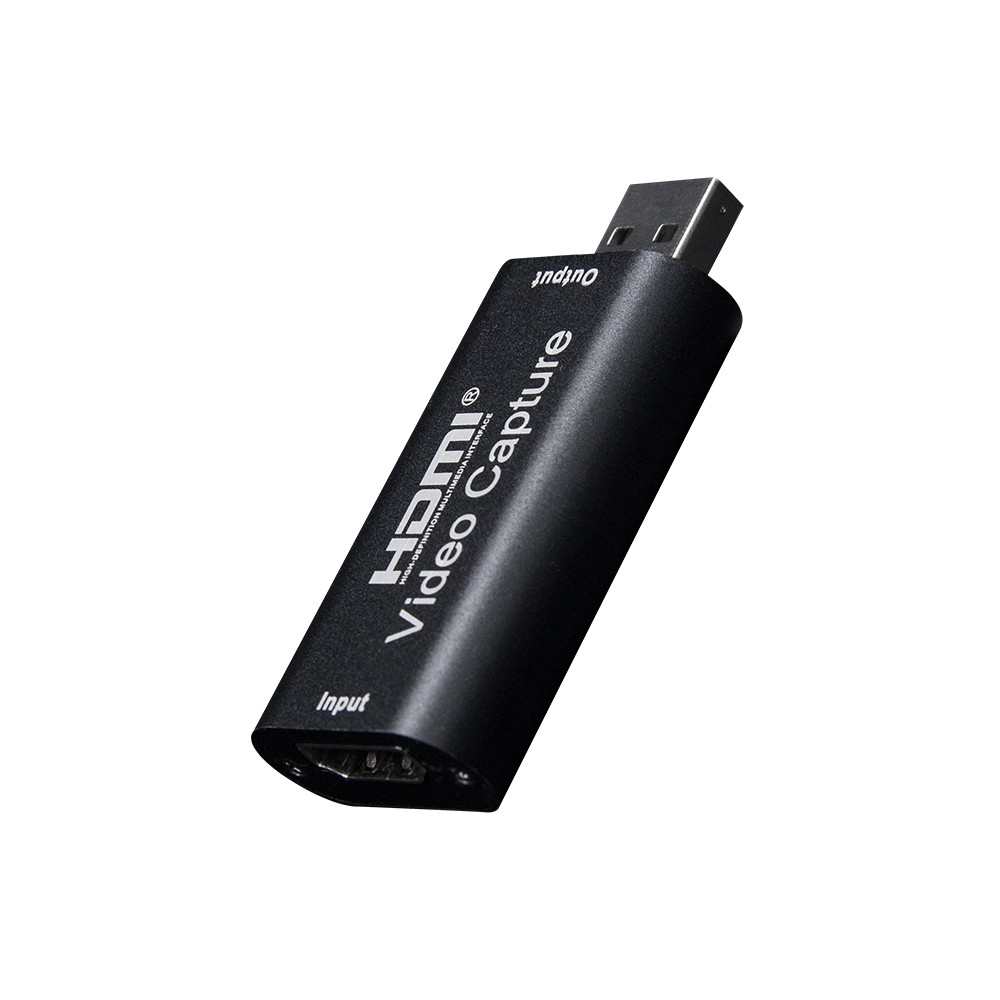

HDMI Video Capture USB GRABBER IN 4K GAME LIVE STREAMING FULL HD 1080P

Detail HDMI Video Capture USB GRABBER IN 4K GAME LIVE STREAMING FULL HD 1080P

JUAL : HDMI Video Capture USB GRABBER IN 4K GAME LIVE STREAMING FULL HD 1080P

The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage.
Suitable for high definition acquisition, teaching recording, medical imaging, etc.

Feature :

* Support input max resolution 4K, 3840x2160 @30Hz
* Support output max resolution 1080P, 1920x1080@30Hz
* Support 8/10/12bit deep color
* Support AWG26 HDMI standard cable: input up to 15 meters (max1080P)
* Support most PC Capture software : Vmix, VLC, OBS, Amcap, etc
* Support PC Video Conference : Zoom, Webex, Microsof Team, Skype, etc
* Support OS Window , Android and MacOS
* Android use App EasyCap Recorder, ClonerAlliance, Camera Fi-LIVE
* Conform to USB Video ( UVC standard ) and USB Audio ( UAC standard )
* Without external power supply.


Spec :

HDMI input Resolution : Max 3840x2160 @30Hz
Support video format : 8/10/12bit Deep color
Video output format : YUV、JPEG
Video output resolution : Max 1920x1080 @30Hz
Support audio format : L-PCM
Interface : USB 2.0 AM
Max working current : 0.4A/5VDC
Dimensi : 64x28x13 mm
Weight : 21.4g

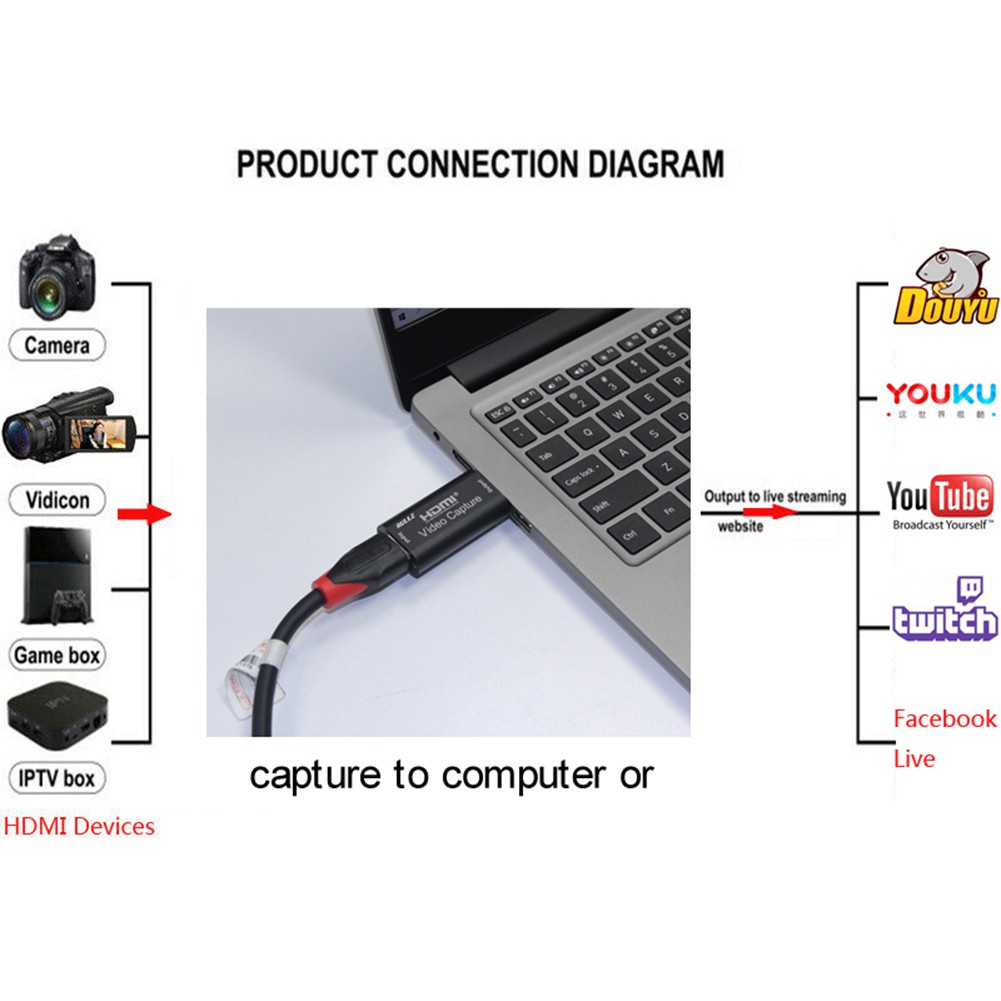

Connection operation OBS
1: Connect the UHD signal source with HDMI Cable into HDMI input of USB Capture Dongle
2: Plug the USB male Capture dongle into the USB port of the computer
3: open the software - add a new source - select video capture device ; - set the screen size - select studio mode (double window) - click start recording or Live Streaming

Computer hardware configuration requirement:
CPU : minimal PC i5-3400 or above;
NB / Laptop : min i7-3537u 2.0GHz or above
Display card Min :
PC : NVIDIA GT630 or above;
NB : NVIDIA GT735M or above
RAM : min 4Gb

Review :
Di OBS bisa max res 1080p 30fps dengan hasil lancar mulus
Di Vmix set res 1080p 30fps hasil capture patah patah, di res720p sedang, di res 480p baru mulus.

Isi paket : Dikirim berdasarkan varian yang di pilih pembeli

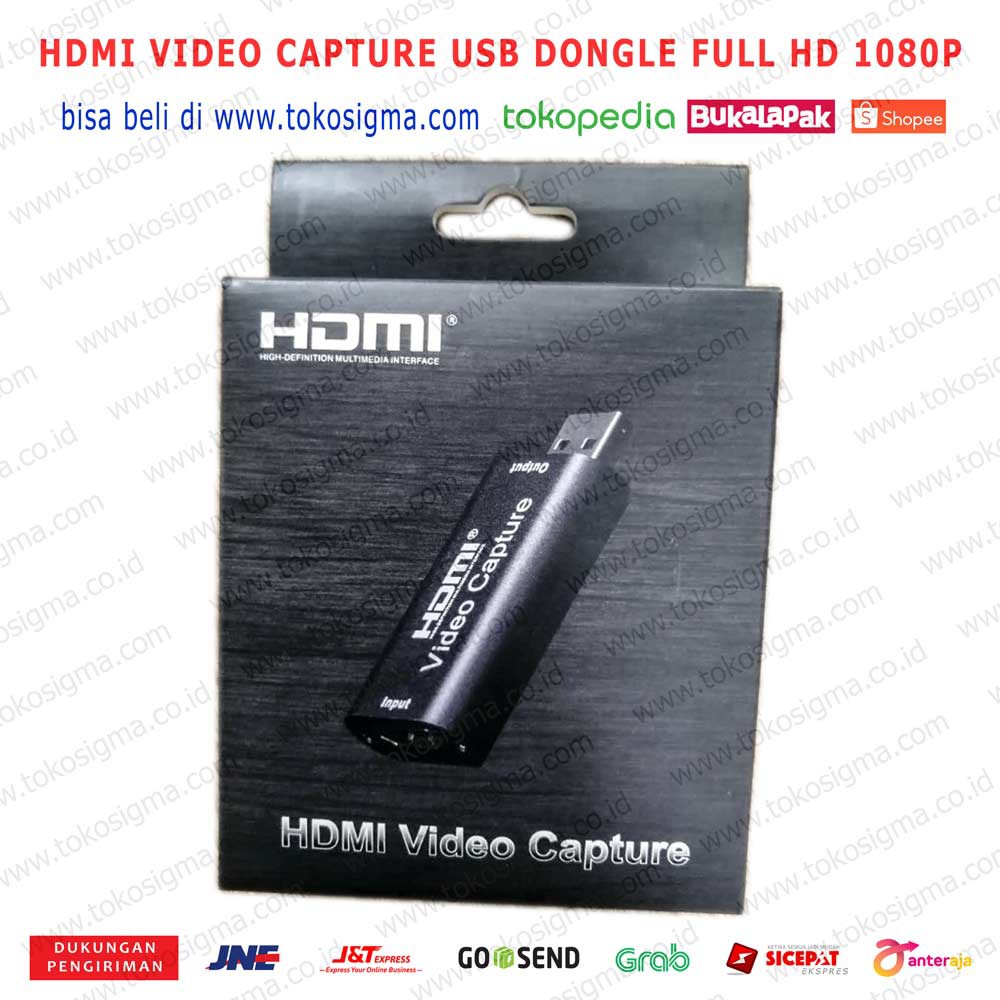

1 x USB Dongle HDMI Video Capture
1 x Manual

Note :

WAJIB VIDEO UNBOXING !!!!!!!
Tanpa Video Unboxing Paket,Komplain Kerusakan/Kekurangan Tidak di terima !!!!

Gambar produk
