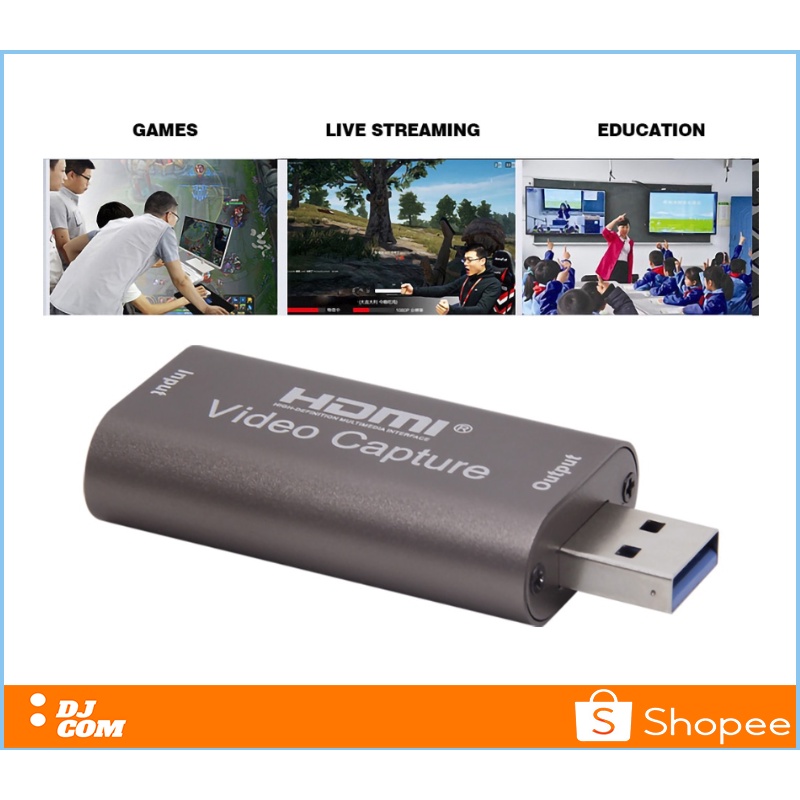

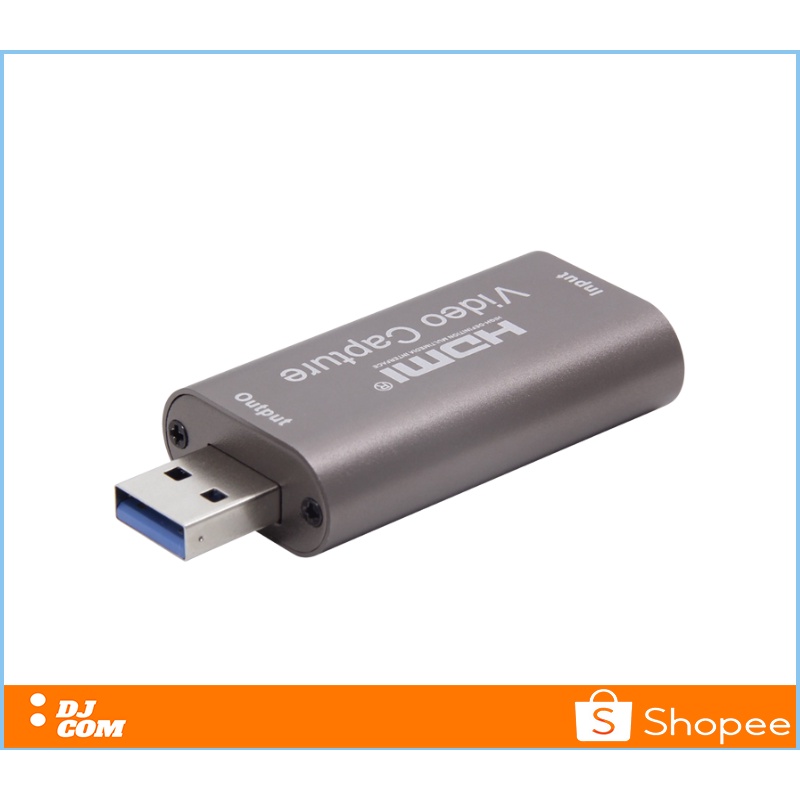

HDMI Video Capture Card USB 3.0 4K Full HD 1080P 60Hz

Elektronik > TV & Aksesoris > TV Box & Receiver TV > HDMI Video Capture Card USB 3.0 4K Full HD 1080P 60Hz
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HDMI Video Capture Card USB 3.0 4K Full HD 1080P 60Hz

HDMI Video Capture adalah alat untuk mengimport gambar dari device lain, Bisa kamera DSLR, Mirrorless, Handycam, PSP, PS3, XBox selama alat mempunyai HDMI Output, agar bisa diStream atau di streamingkan ke Platform Video Streaming seperti, Youtube, Twitch, Zoom, dll

Spesifikasi:
* HDMI resolution: Max input can be 3840x2160@60Hz.
* Video output resolution: Max output can be 1920x1080@60Hz
* Video output format: YUV/JPEG
* Support video format: 8/10/12bit Deep color
* Support AWG26 HDMI standard cable: input up to 15 meters
* Support most acquisition software, such as VLC / OBS / Amcap, etc
* Support Windows / Android / MacOS
* Conform to USB Video and UVC standard
* Conform to USB Audio UAC standard
* Max working current: 0.4A/5V DC
* Support Capture dari Smartphone ( Port USB Type C ) dengan tambahan konverter

Koneksi dan Operasi
1: Hubungkan sumber sinyal UHD ke input HDMI dari pengambilan video dengan satu kabel HDMI.
2: Hubungkan komputer ke port usb dari pengambilan video dengan kabel usb.
3: Langkah-langkah operasi untuk pengambilan video USB (OBS): Buka perangkat lunak → Pilih sumber "Perangkat pengambilan video" → Atur ukuran gambar → Pilih "Mode Studio" (jendela ganda) →Pilih "Mulai Merekam".

***Catatan:
Computer hardware configuration requirements
CPU: for PC i5-3400 or above ;NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Run memory: 4G RAM

1 x Video capture
1 x User manual
1 x Box
