HDMI to SDI + SDI Converter FULL HD HDMI to SDI Adapter 2 SDI Output Audio Embedder Support 2.970 Gbit/s

Detail HDMI to SDI + SDI Converter FULL HD HDMI to SDI Adapter 2 SDI Output Audio Embedder Support 2.970 Gbit/s

Ready stock kirim dr jakarta langsung, bukan dr luar negeri, jadi tidak tunggu lama
Description:
Our Micro HD Multimedia Interface to SDI Converter allows HD Multimedia Interface signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s.

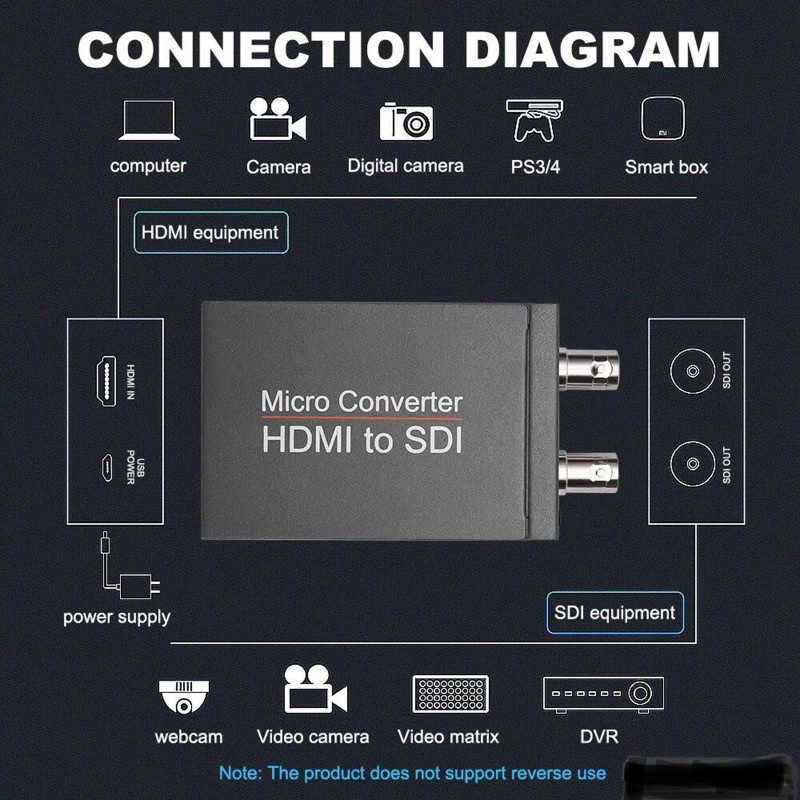

Function: Easier to convert your high def HD Multimedia Interface signal with audio to SDI for long distance transmission and display your work on two SDI display.
Supports HD Multimedia Interface input timings: 480i, 576i, 720p, 1080i, 1080p.
Converts HD Multimedia Interface signal to SDI: 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s); 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s).
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI).
Specification:
Material: Iron
Size: Approx. 9.7x5.5x2.3cm/ 3.8x2.2x0.9 inch
Input Port: 1 x HD Multimedia Interface
Output Port :2 x BNC (HD-SDI/3G-SDI)
Power Supply :DC 5V
Operating Temperature :0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature : -20°C ~ 60°C / -4°F ~ 140°F
Elative Humidity: 20 ~ 90% RH (Non-condensing)
Power Consumption: (Max) 5W

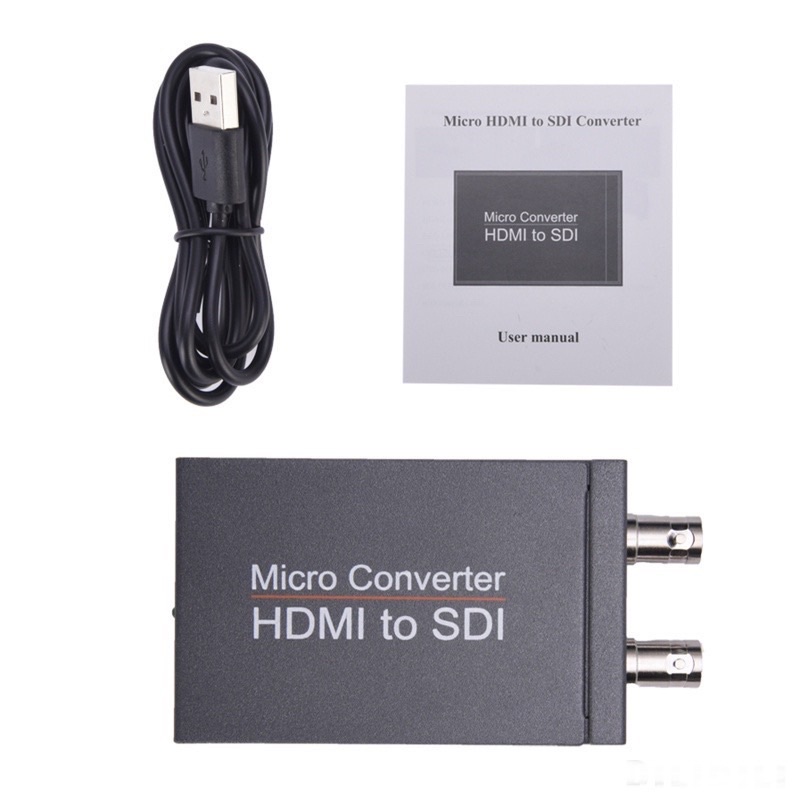

Package Includes:
1 Piece HD Multimedia Interface to SDI Converter
1 Piece USB Power Supply Cable
1 Piece Operation Manual
Note:
1. Please allow 1-3mm error due to manual measurement.
2. Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
