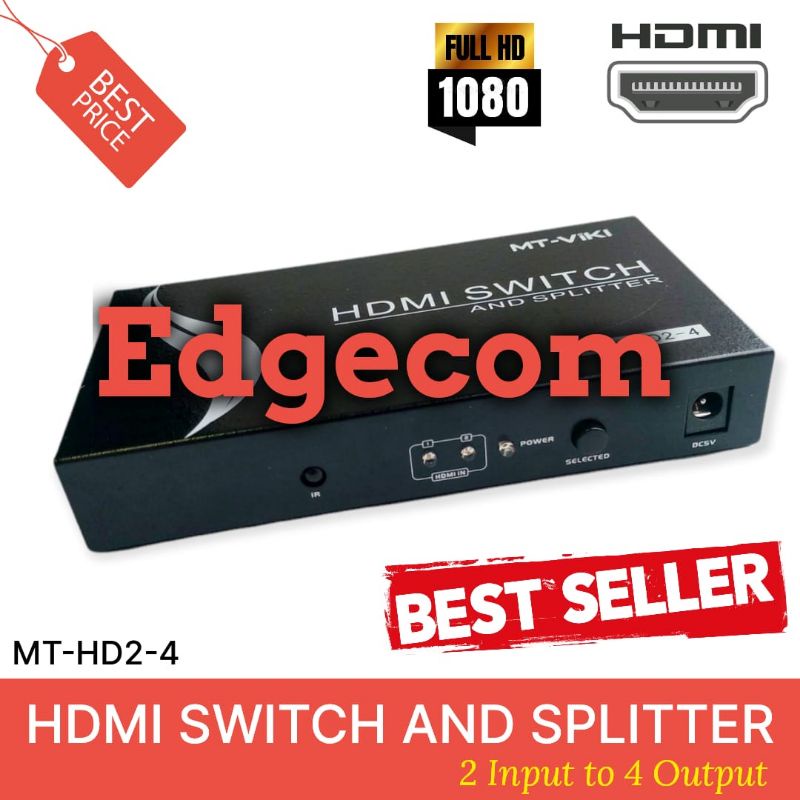

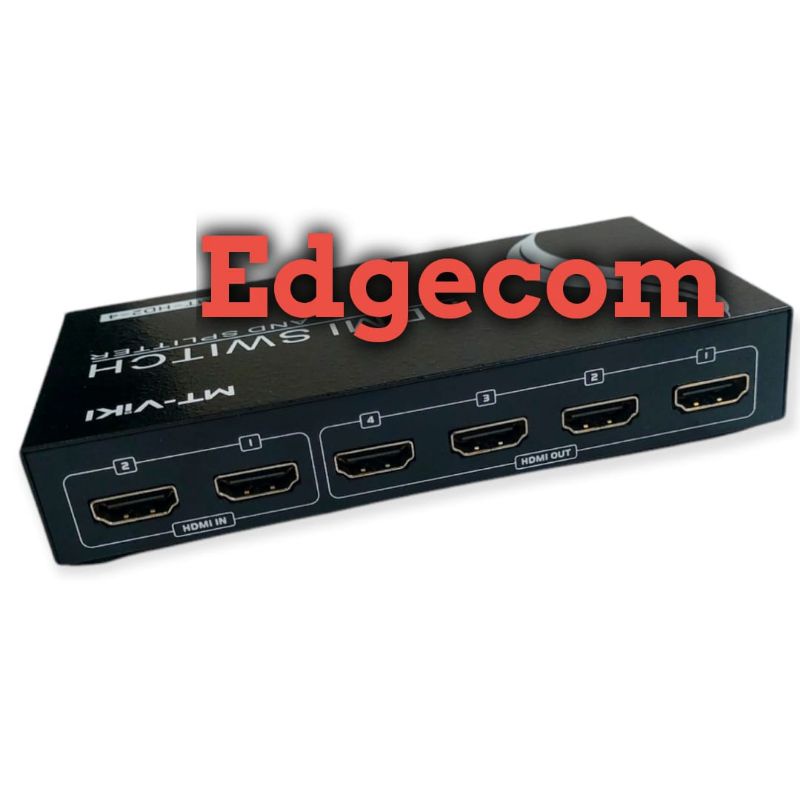

HDMI Switch and Splitter 2 input to 4 Output Selector with IR Remote

Detail HDMI Switch and Splitter 2 input to 4 Output Selector with IR Remote

The HDMI HD2-4 switch and splitter allows you to quickly and easily switch and split 2 HDMI input siganls to 4 HDMI output sources to your HDMI display device such as DVD players, satellite receivers and digital camcorders. You can select the desired input source via a remote control unit or pushbuttons located on the front of the switch.

Product feature:
Allows up to 2 HDMI sources to be distributed or switch to 4 HDMI displays simultaneously
Switch between sources using remote control or front panel pushbuttons
Superior video quality – HDTV resolutions of 480p, 720p, 1080i, 1080p, PC resolutions of VGA (1920x1200)
Supports Dolby True HD and DTS HD Master Audio
Plug-and-play – no software installation required
DDC Compatible
HDMI (3D, Deep Color)
HDCP compatible
Front-Panel LED for port and power status
Easy and affordable wayto your home theater system
Power: DC 5V

Product Specifications:
Video InputInterface4 x HDMI Type A Female (Black)Impedance100 ΩMax. Distance1.8 mVideo OutputInterface2 x HDMI Type A Female (Black)Impedance100 ΩVideoMax. Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)Max. Pixel Clock225 MHzComplianceHDMI (3D, Deep Color)HDCP CompatibleMax. ResolutionUp to 1080pMax. DistanceUp to 15 mControlIR or Pushbuttons PowerConnector: 1 x DC JackConsumption: DC5V, 500mA(optional)EnvironmentOperating Temp.-45- 75°CStorage Temp.5%-90%Humidity5-90% RH, Non-CondensingHousingmetalWeight0.525 kg(L x W x H)14.3*8*2.5cm

packing list:
1* HDMI HD2-4
1* Remote
1* Power Adaptor 5V
1* User Manual
