HDMI Splitter 4 Port - Splitter HDMI 4 port

Detail HDMI Splitter 4 Port - Splitter HDMI 4 port

Description:
The 1x4 HDMI splitteroffers HD video solution for super market; shopping MallHDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, etc.
Digital TV, HDMI Flat Panel Monitors, HDTV,DVD player, Satellite Receivers, Ste-top Boxes,Digital Projectors,Audio Video Receivers,Other HDMI enable Devices

Features:

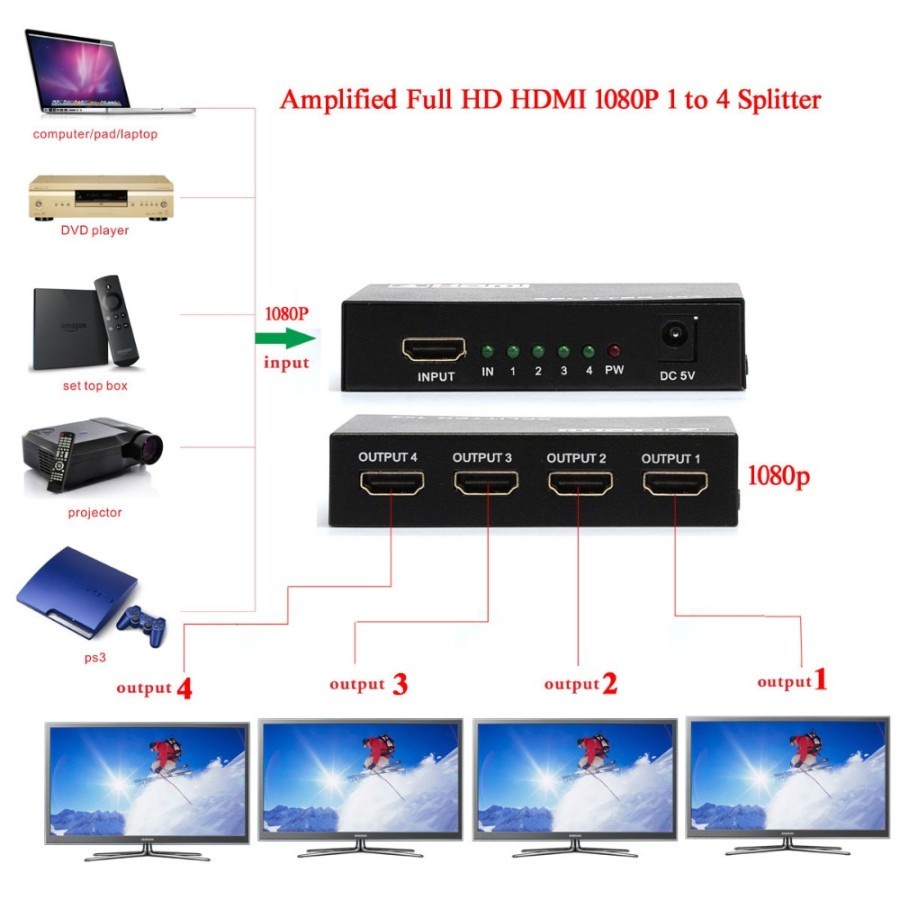

Distributes HDMI input into four identical outputs while maintaining the best video quality.
Supports 480i; 480p; 720i; 720p; 1080i and 1080p resolution based on your needs.
When two or more splitters are cascaded they can be used to create a larger distribution.
Achieve long distance transmission of HDMI signal of more than 15 meters.
Maximum Single Link Range: 1920 x 1200 - 1080p.
Supports 8bit per channel (24bit all channel) deep color.
Supports compressed audio such as DTS Digital, Dolby Digital, DTS HD & Dolby True HD.
3D supported.HDMI 1.4 compliant
Video formats supported VGA: 640x480, 800x600, 1024x768, 1280x1024
Video formats supported - DTV/HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Supports 8bit per channel (24bit all channel) deep color
Supports compressed audio such as DTS Digital, Dolby Digital, DTS HD & Dolby True HD
Input Video Signal:0.5 -1.0 volts p-p
Input DDC Signal:5 volts p-p (TTL)
Bandwidth:Up to 225MHz
EDID Duration:6 seconds

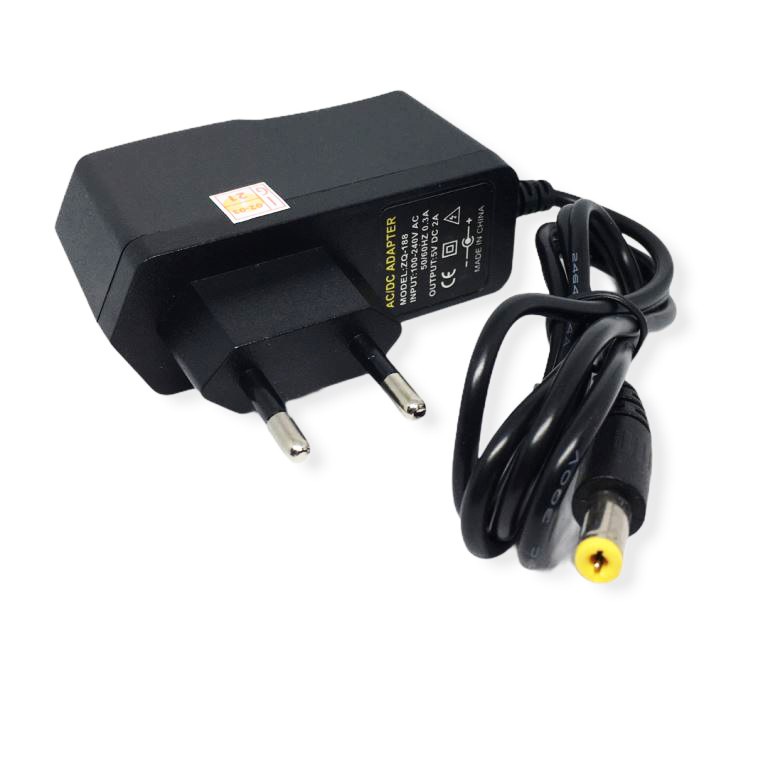

Power supply :DC 5V@2A US Standard
Power input :100-240V AC 50/60Hz 0.3A
Plug Type: EU and US PLUG

Gambar produk
