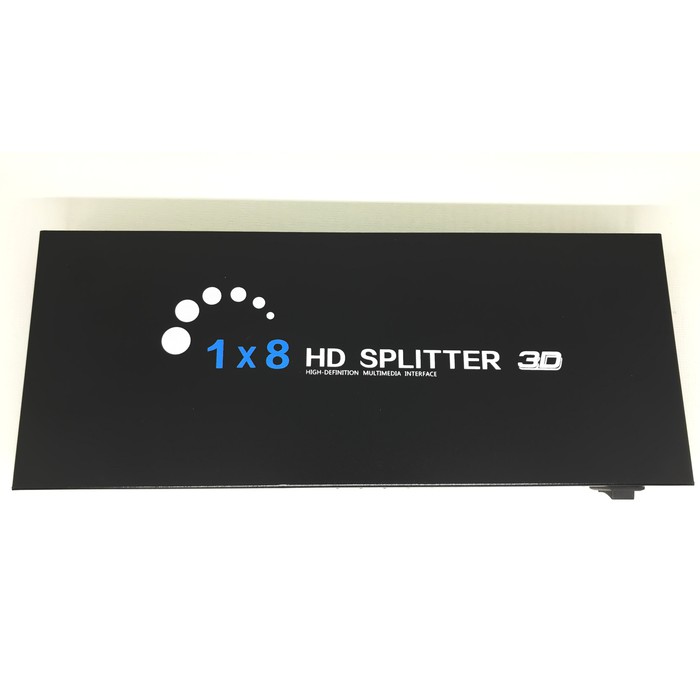

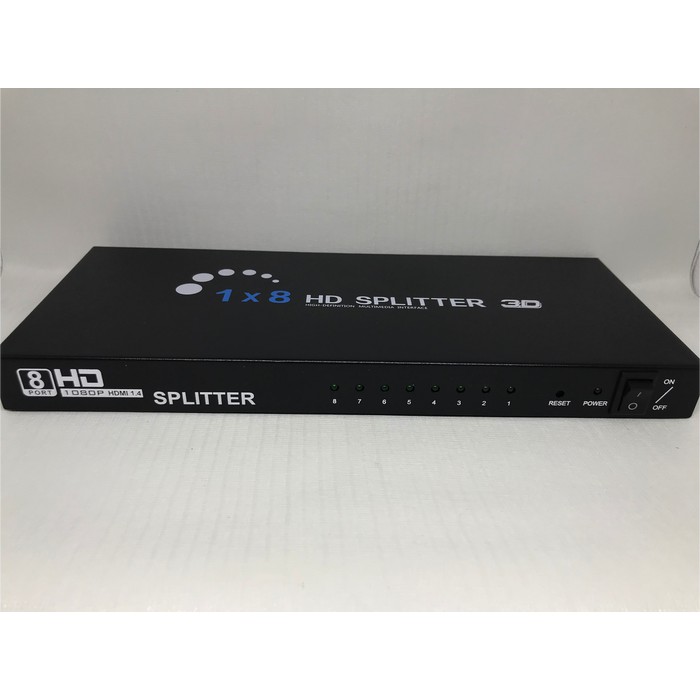

HDMI Splitter 1x8 Port

Detail HDMI Splitter 1x8 Port

HDMI 1080P 3D
VIDEO FORMAT : HDTV supported 480i / 576i / 480P/576P/720P/1080i/1080P VGA copliant with

HDMI SPLITTER / SWITCHER
FEATURES
-Allows simultaneous display
-Single link bandwidth 340Mhz
-support lossless compressed digital audio formate dolby trueHD and DTS-HD Master audio for theater-like, profe-ssional sound quality
-support 30-bit 36bit (RGB or YCbCr) color depths up from 24-bit depths in pervious of the HDMI specification
-NEXT generation xvYCC color space supports 1.8 times as many color as exising HDTV signals
-VIDEO Format : HDTV supported 480i / 576i / 480P/576P/720P/1080i/1080P VGA copliant with
640x480/800x600/1024x768/1280x1024/1600x1200/1920x1200/4kx2k
-Transmit distance (28AWG HDMI cable) 1080i 15M(input)+20M(output): 1080p 8M(input)+10M(output)
-Maintains highest HDMI single link video resolution for beautiful HDTV
-Maintains highestHDMI Digital audio signal
-HDMI or DVI to HDMI cables are used to connect to the input or output
-HDCP compliant
-HDMI 1.4 HDMI belowversion compliant

OPERATING
Connecting and Operating the hdmi splitter/switcher
how to connect the HDMI Splitter/switcher to your devices
1 connect the cables from the hdmi sources into the hdmi splitter/switcher
input port (HDMI to HDMI cable for HDMI source or hdmi to DVI cable for DVI SOURCE)
2 connect the cables from your display ( monitor or projector ) into the hdmi outputs port of the HDMI Splitter /switcher

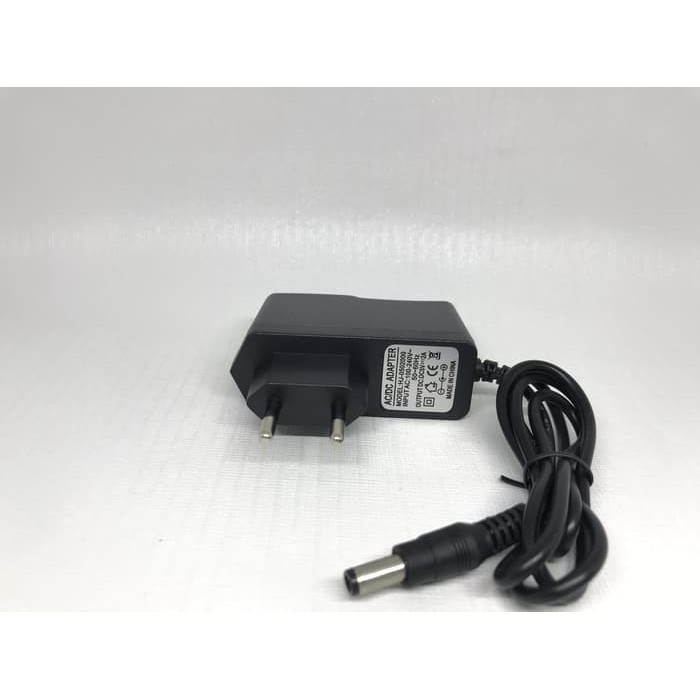

3 plug the power suplier into the hdmi splitter.switcher power jack

SPECIFICATIONS
Video amplifier bandwidth : 340MHz
Input video signal: 1.2 volts p-p
Input DDC signal : 5 volt p-p (TTL)
Single link Range : 1080P
Input Conncetor Type : HDMI Type A 19 pin Female
Outputs connector Type: HDMI Type A 19 pin Female
Power Consumption : 10 watts (max)
Power supplier : 5VDC 12V DC

Gambar produk
