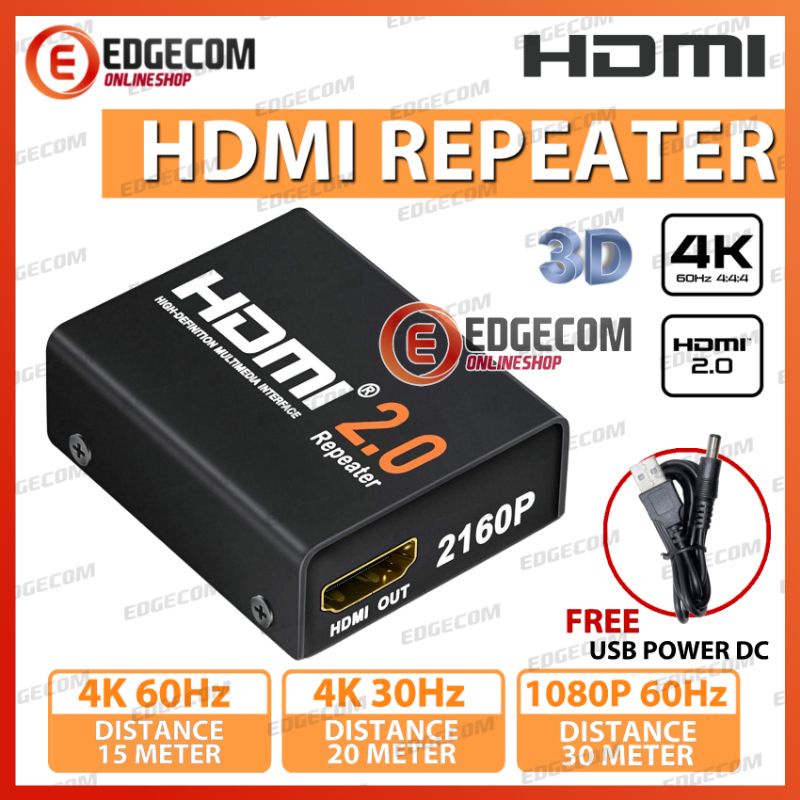

HDMI REPEATER V2.0 4K 3D With External Power Adapter

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > HDMI REPEATER V2.0 4K 3D With External Power Adapter
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HDMI REPEATER V2.0 4K 3D With External Power Adapter

HDMI 2.0 REPEATER SUPPORT 4K x 2K, 3D

Penguat HDMI ukuran mini ini dirancang untuk menumbuhkan sinyal HDMI yang masuk dengan decoding dan mengkodekan ulang ke sinyal HDMI standar baru dan memperpanjang jangkauan transmisi tanpa degradasi.

Alat ini mengharuskan Di input dan Di output memakai Kabel HDMI yang sama satu merek dan yang sama satu spesifikasi.

Features

Compliant to HDMI 2.0 and HDMI 1.x specification
serial data rate up to 6.0 Gbps, capable of supporting ultra-high resolution 4K/2K 60 Hz format.
Support HDCP 2.2
Supports 3D transmission

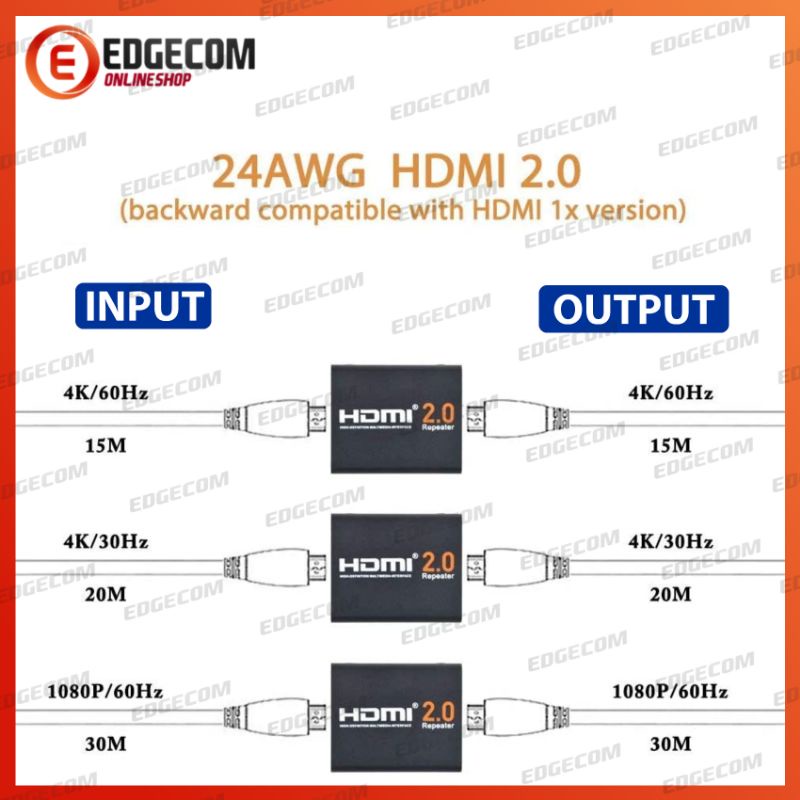

When input resolution is 4K/60Hz, RGB 4:4:4, both input and output transmission distance are up to 15 meters using HDMI 2.0 AWG24 cable.
When input resolution is 4K/30Hz, RGB 4:4:4 or 4K / 60Hz RGB 4:2:0, both input and output transmission distance are up to 20 meters using HDMI 2.0 AWG 24 cable.
When input resolution is both input and output transmission distance are up to 30 meters using HDMI 2.0 AWG24 cable.
Audio and video lossless transmission without any delay.
Simple installation.


Specification

HDMI Input/output Resolution : Up to 4K/60fs (2160P)
Support HDMI Video Color Format. : 24bitDeep color 30bit/36bit
HDMI Audio Channel Quantity : 32 Channels
HDMI Maximum Bandwidth 300MHz
HDMI Maximum Transmission Rate : 18Gbps
Max Working Current : 300mA
Power Adapter Format : AC 100V-240V 50/60 Hz, DC 5V 1A (not include in package)
ESD Protection Human Body Model :
+/- 8kV(Air-gap Discharge)
+/- 4kV(Contact Discharge)
Case Dimension 52.8x44.5x19.4 mm .
Weight : 35 g


Isi paket :

1 x HDMI 2.0 Repeater
1 x Kabel Power USB
1 x Kertas Manual
