HDMI Male To Vga Female With Audio 1080P Converter Kabel HDMI To Vga

Detail HDMI Male To Vga Female With Audio 1080P Converter Kabel HDMI To Vga

Deskripsi Converter Cable HDTV to VGA + Audio / Konverter / Adapter / Kabel #51

PENTING : Semua Hub Type C yang bisa mengeluarkan display (HDTV, VGA, DVI-D), device dan colokan yang digunakan HARUS compatible dengan USB 3.1 Gen 2 dan atau THUNDERBOLT. Produk TIDAK BISA DI RETUR dalam hal dimana Device anda tidak sesuai dengan requirement ini. (LIHAT FOTO PRODUK UNTUK LEBIH JELASNYA)

Description of Product

The HDTV converter box can convert one input HDTV signal into a VGA analog video signal and one analog audio output. The HDTV input port can be connected to any standard HDTV signal source device ( such as the DVD player, Ps3, S Xbox360, STB, PC), The VGA output port can be connect to display device(TV/Monitor/Projector).

The 3.5mm jack/AUDIO port can output Stereo audio to a av surround amplifier.

PRODUCT PICTURES

1.One single HDTV signal input convert to one VGA + analog audio signal output.

2.Support HDTV input: 480P/720P/1080P@60Hz.

3.VGA output resolution format with the input format automatically changes: 640 x 480@60Hz, 800 x 600@60Hz, 1024 x 768@60Hz, 1280x 720@60Hz,

1280 x 768@60Hz, 1280 x 800@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz,

1600 x 1200@60Hz, 1920x 1080@60Hz,

4.The corresponding HDMI resolution:

HDTV INPUT
VGA OUTPUT

5.Support PCM 2.0 channel stereo audio output.

6.Built-in digital audio decoder, the LPCM/PCM digtal audio decoding into analog stereo output.

FEATURE
HDMI Version---------------- HDTV 1.3

HDCP Version -----------------HDCP 1.1

HDTV resolution ------------------1080P/720P/480P@60Hz

Support up to VGA -------------------1920 x 1080@60Hz

Support audio format -----------------------PCM

Max bandwidth ---------------------------------------165MHz

Input/Output TMDS signa-----------------------0.5-1.5Vp-p(TTL)

Input/Output DDS signal ---------------------------5Vp-p(TTL)

Output cable distance----------------------------- =3m VGA standard cable

HDTV cable length----------------------------------- 110mm

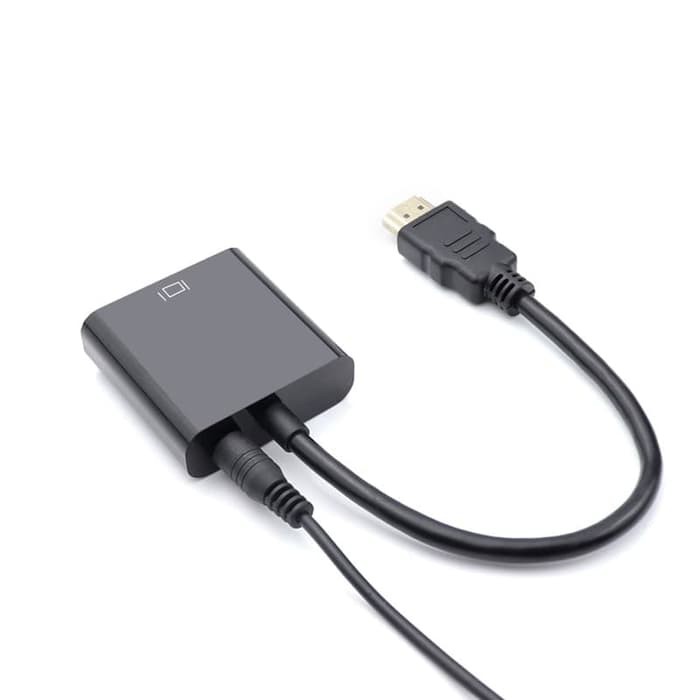

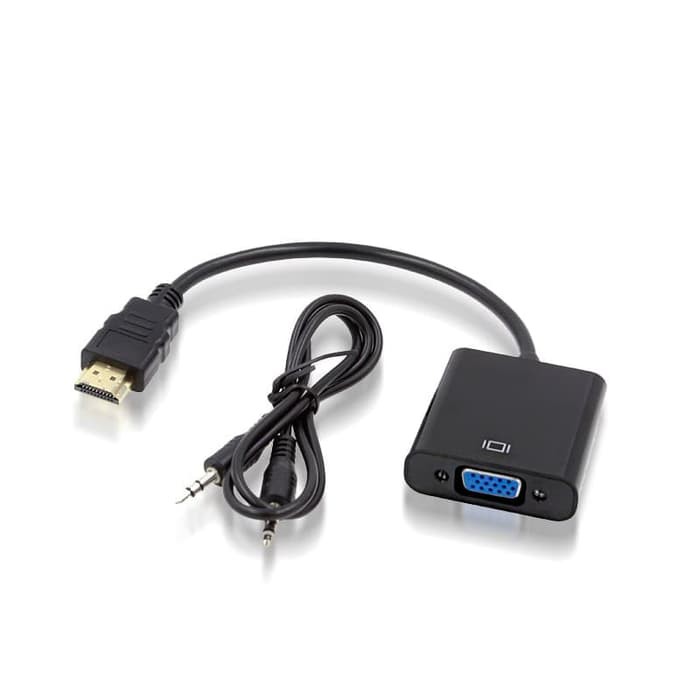

Gambar produk
