Detail HDMI EXTENDER VIA SINGLE LAN RJ-45 UTP CAT5E cat 6 up to 150 meter

Jual : HDMI EXTENDER SINGLE UTP CAT5E/6 up to 150M

HDMI extender adalah alat yang berupa sepasang konverter dengan mengkonversi kabel LAN UTP cat 5-e/6 sebagai pengganti fungsi Kabel HDMI.
Sepasang konverter ini terdiri dari Transmitter (pengirim) dan Receiver (Penerima).

Features :

Use only one (single) CAT 5e/ cat 6 cable to substitute HDMI cable to achieve long distance transmission.
Follow the standard of IEEE-568 B.
Transmission distance up to 150 meters.
Auto-adjustment of feedback, equalization and amplify, the user does not need to care about the length of the cable.
Signaling support 1080p display.
HDMI 1.4, HDCP Compliant.

Specifications :
Netline
Gaintech
Input video signal: 0.5 to 1.0 v p-p
Output DDC signal: 5V p-p (TTL)
Support : 480i / 480p @60Hz, 576p / 576i @50Hz, 720p, 1080i, 1080p @50/60Hz
Transmitter (Sender) unit :
Weight : 280 g
Size : 92 x 75 x 28 mm
Case : Metal
Input :
Gold plated HDMI A type female ( IN )
Power port : DC 5V
Reset Button
Status & POWER - LED to show work status
Output :
1 x shielded RJ45 female ( LAN Tx)
IR OUT

Receiver Unit :
Weight : 280 g
Size : 92 x 75 x 28 mm
Case : Metal
Input :
IR IN
1 x shielded RJ45 female ( LAN Rx )
Power Port : DC 5V
Output :
Gold plated HDMI A type female (OUT)
Status & POWER - LED to show work status
Reset Button

ISI paket :

1 x Transmitter unit HDMI Extender
1 x Receiver Unit HDMI Extender
2 x Power Adapters dc 5v
1 x User Instructions

Berat sebelum di bungkus menjadi paket : 850 gram

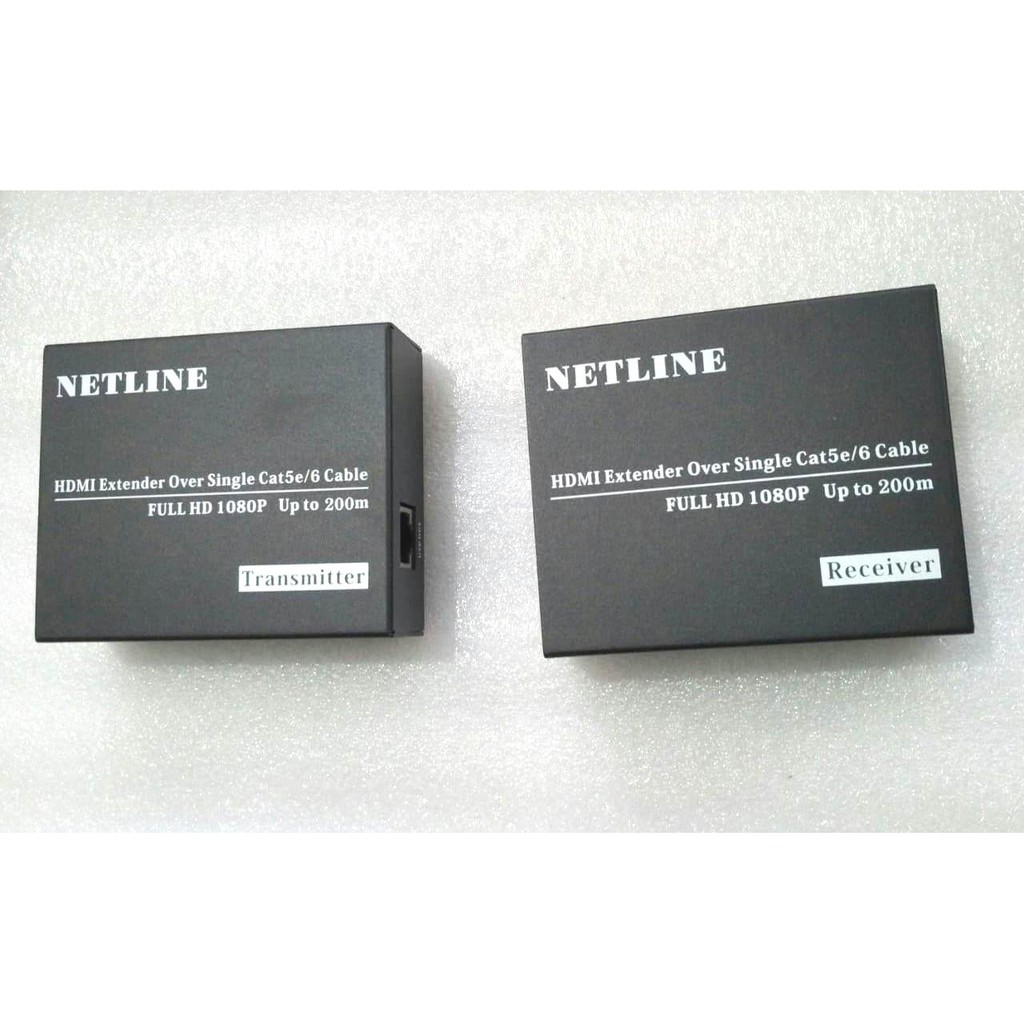

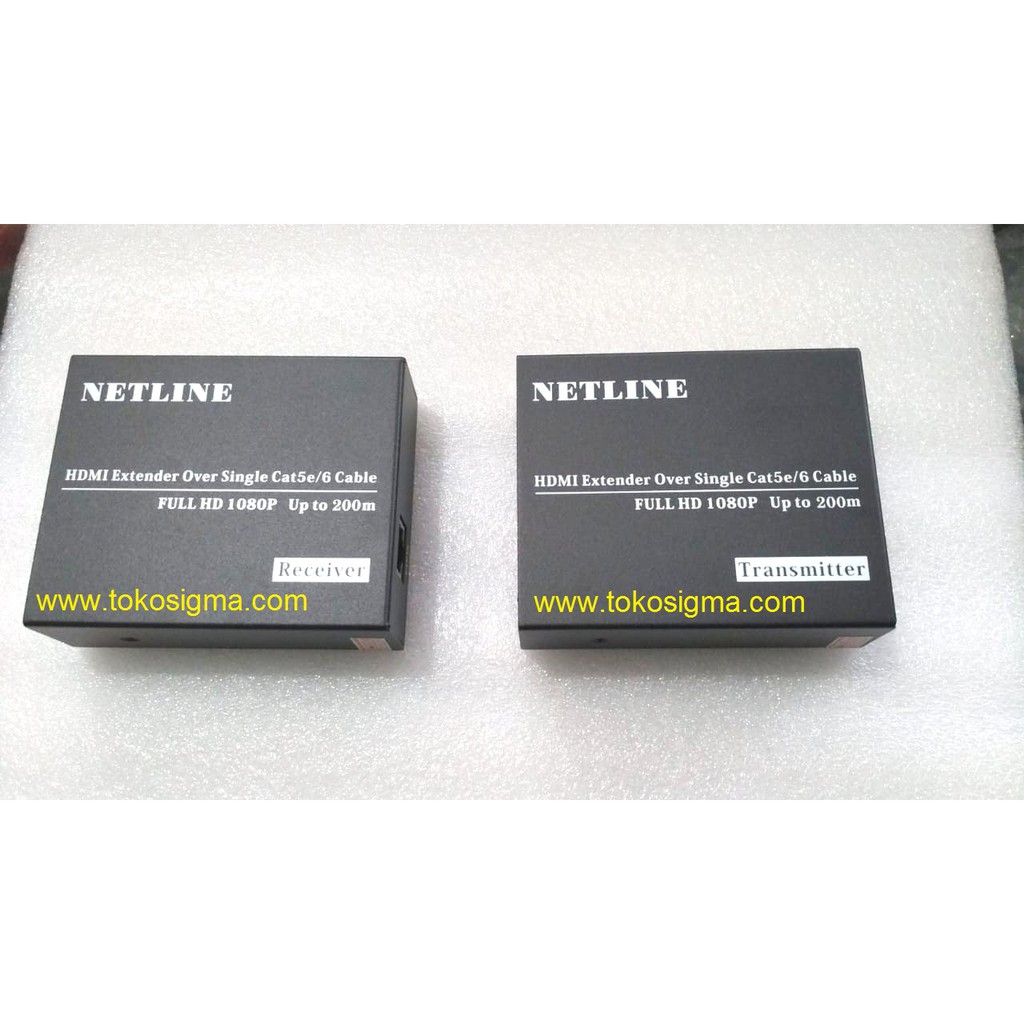

Gambar produk
