HDMI EXTENDER PASIF BY CAT-5E/6 CABLE 30 METER

Detail HDMI EXTENDER PASIF BY CAT-5E/6 CABLE 30 METER

JUAL : HDMI EXTENDER PASIF BY CAT-5E/6 CABLE 30 METER

NOTE : karena EXTENDER ini jenis PASIF (tidak ada power) maka harus memakai Kabel LAN dan JEK RJ45 yang bagus, seperti merk BELDEN atau AMP atau yang setara.
Tidak bisa memakai Kabel LAN yang pabrikan Jadi, hasil gambar tidak akan bagus.

This kind of HDMI Extender by CAT-5e/6 uses two pieces of CAT-5e/6 cables to extend the HDTV display up to 30 meters for 1080p.
It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e/6 has more flexibility and convenience in cable construction.


Features:

this HDMI Extender has many features that enable it to perform in a superior manner.
Among those features you will find: One pair as a full functional module, no need of setting.
CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
Follow the standard of IEEE-568B.
Transmission distance can be up to 30 meters for 1080p using CAT-6 Cable.
Compact size.
Signaling rater up to 1.65Gbps in support or 1080P display.
HDCP compliant.



Connection and Operation

Plug the fixed HDMI cable of the sender into the HDMI input source such as:HD-DVD,Ps3,STB etc.
Connect two CAT-5e/6 cables to both the output of the transmitter and input of the receiver.
Plug the fixed HDMI cable of the receiver into the HDMI display (such as: HD-LCK,HD-DLP)



Isi Paket :

1 set HDMI EXTENDER (1 x sender unit and 1 x receiver unit)

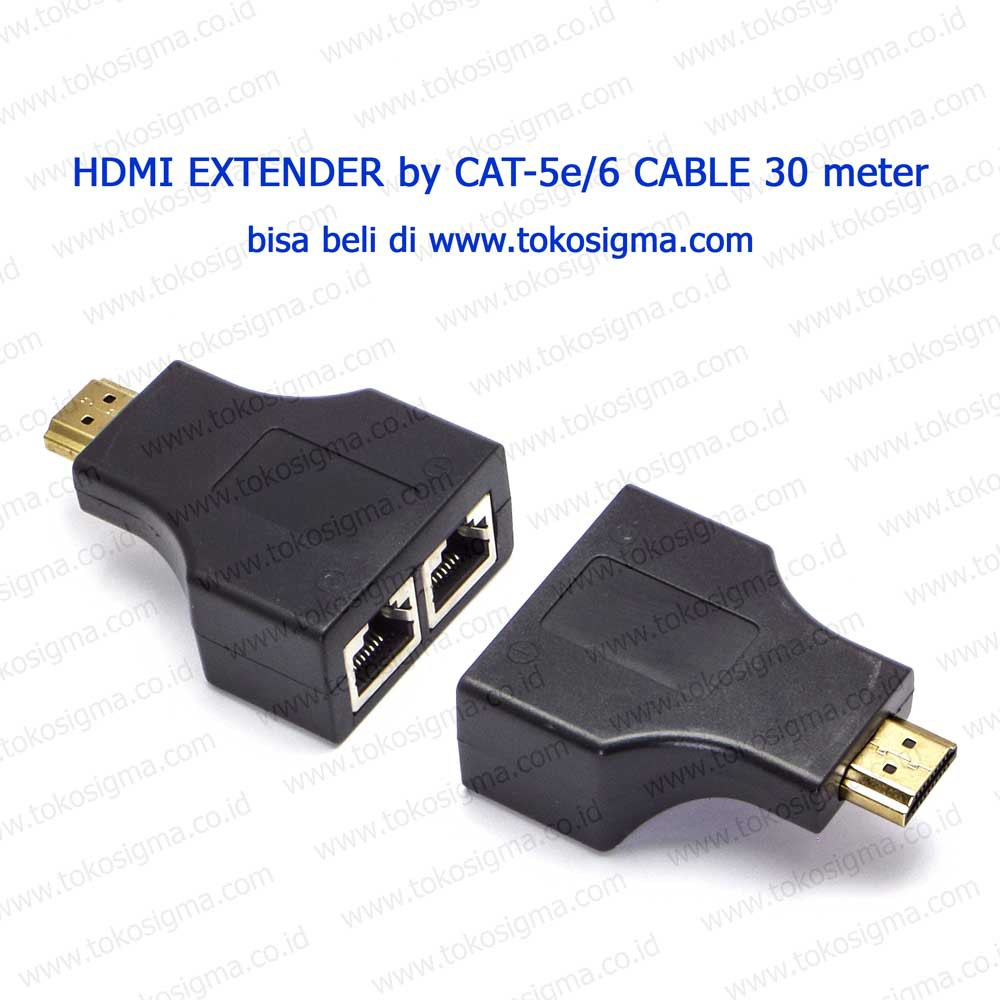

Gambar produk
