HDMI 4K USB VIDEO CAPTURE BOX 1080P 60FPS GAME HD60 LIVE STREAMING A19

Detail HDMI 4K USB VIDEO CAPTURE BOX 1080P 60FPS GAME HD60 LIVE STREAMING A19

JUAL : HDMI 4K input to USB VIDEO CAPTURE BOX 1080P 60FPS GAME HD60 LIVE STREAMING A19

4K HDMI to USB Video Capture Dongle,it is easy to carry, have a superior performance,superior compatibility,simple installation. The video capture can capture both HDMI video and HDMI audio, sending audio and video signals to computers and smart phones for preview and storage. Suitable for high definition
acquisition, teaching recording, medical imaging, etc


Features

The capture resolution up to 1080P/60Hz, input resolution up to 4K/30Hz
Support capture format MJPEG
Support 8/10/12bit deep color;
Conform to USB Video and UVC standard;
Conform to USB Audio UAC standard;
Support Windows、Linux and MacOS;
Support most thrid-party player software compatible with UVC and UAC protocol such as VLC、OBS 、Amcap, etc;
No need external power supply, compact and portable.

Spec :

Model : HCA19
Input interface : HDMI interface
Output interface : USB2.0
HDMI input Res : Max 4K 30fps
supports 225 MHZ 4K/30Hz 12bit deep color
Audio input : Through HDMI

Output Capture Formats : Full HD 1920x1080 , 1080P 60fps
Output color space YUV, RGB
support : Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS

Size : 75 x 41 x 12mm

Requirements:

PC: min Intel® Core™ i5-3440 3.20 GHz + NVIDIA® GeForce® GTX 630or above
Notebook: min Intel Core i7-4810MQ + NVIDIA GeForce GTX 7350QM or above
RAM : 4 GB
Graphics card compatible with DirectX10

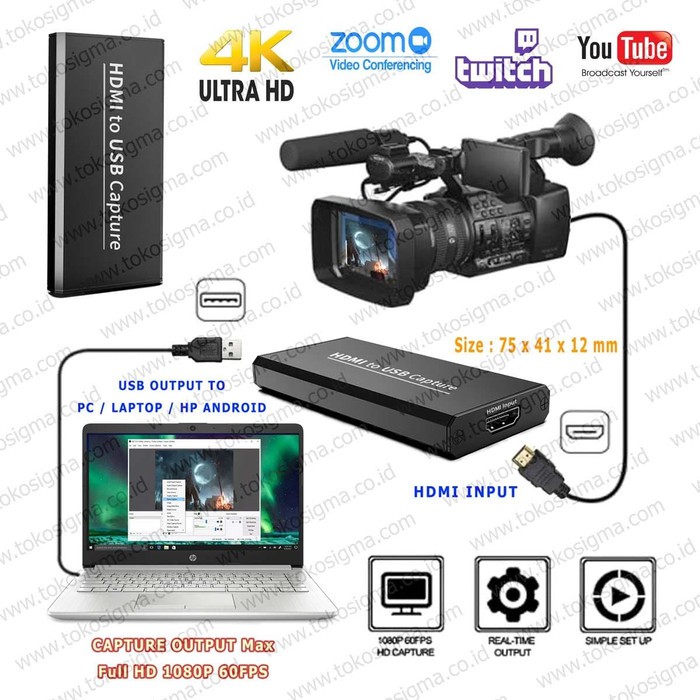

Connection operation OBS
1: Connect the UHD signal source with HDMI Cable into HDMI input of USB Capture Dongle
2: Plug the USB male Capture dongle into the USB port of the computer
3: open the software - add a new source - select video capture device ; - set the screen size - select studio mode (double window) - click start recording or Live Streaming

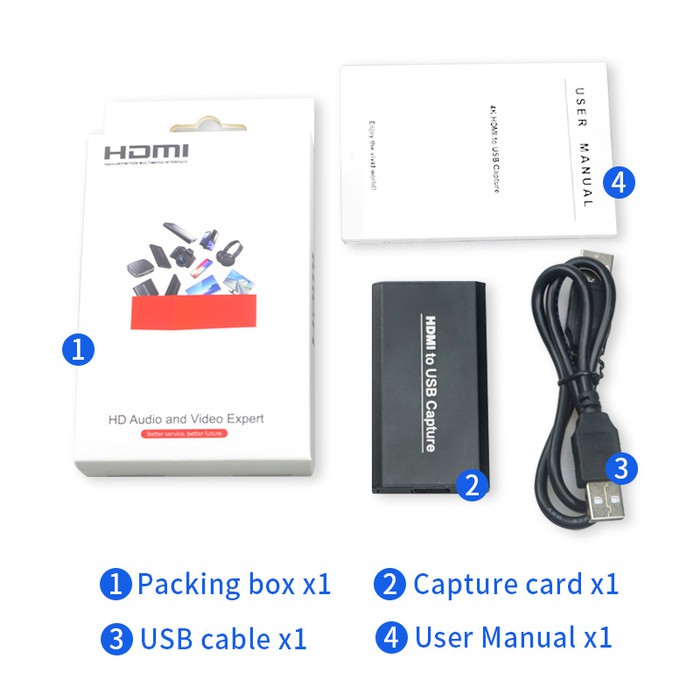

Isi paket :

1 x HDMI to USB Capture Box
1 x Cable AM-AM
1 x Manual

Gambar produk
