HD VIDEO CAPTURE USB 2.0 4K 30 FPS MOBILE GAME LIVE RECORDING

Detail HD VIDEO CAPTURE USB 2.0 4K 30 FPS MOBILE GAME LIVE RECORDING

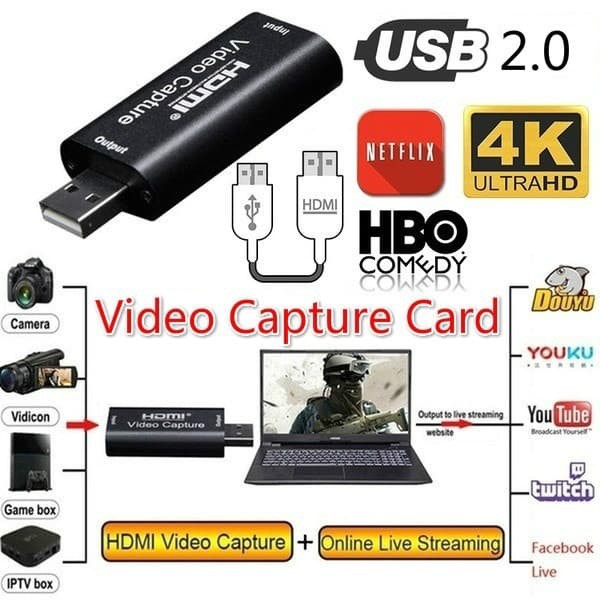

This USB 2.0 capture card can capture both HDMI video and HDMI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

Features:

* Support maximum input resolution up to 4K;

* Support maximum output resolution up to 1080P;

* Support 8/10/12 bit color depth;

* When using standard AWG26 cables, the input transmission distance is up to 15 meters (1080P and below resolution);

* Support most acquisition software, such as VLC, OBS, Amcap, etc.;

* Support Windows, Android and MacOS;

* Comply with USB video UVC specification;

* Comply with USB audio UAC specification;

* No need for external power supply, compact and easy to carry

Specification:

HDMI resolution : The highest input can support 4K

Video input format : 8/10/12 bit color depth

Video output mode : YUV, JPEG

Video output resolution : Maximum output resolution 1080P

Support audio format : L-PCM

Input cable length : ≤15 meters, AWG26 HDMI standard cable

Maximum working current : 0.4A/5VDC

size : 64x28x13 (mm)

Connection operation:

1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable

2: Insert the USB male connector of the USB capture card into the USB port of the computer

3: Acquisition operation steps (OBS): open the software → add a new source → select'video capture device' → set the screen size →

Select'Studio Mode' (dual windows) → click'Start Recording', see the example below for details

1. Add a new source, select'Video capture device' 2. Set the screen size

3. Select the'studio mode' (dual window) and the above settings are completed.

Note: computer hardware configuration requirements

CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above

Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above

Storage: 4G RAM
