HCPL2530 HCPL 2530 ORIGINAL

Elektronik > Elektronik Lainnya > HCPL2530 HCPL 2530 ORIGINAL
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail HCPL2530 HCPL 2530 ORIGINAL

Hi #RekanEasyWare ...
EasyWare Part#: EP001224

Specification
* Part Number : HCPL2530
* Package : DIP-8
* Manufacturer : ON Semiconductor
* Description : OPTOISO 2.5KV 2CH TRANS 8DIP
* Part Status : NEW AND ORIGINAL
* Datasheet : Lihat di sini
* Categories : Isolators > Optoisolators - Transistor, Photovoltaic Output
* Series : -
* Number of Channels : 2
* Voltage - Isolation : 2500Vrms
* Current Transfer Ratio (Min) : 7% @ 16mA
* Current Transfer Ratio (Max) : 50% @ 16mA
* Turn On / Turn Off Time (Typ) : 450ns, 500ns
* Rise / Fall Time (Typ) : -
* Input Type : DC
* Output Type : Transistor
* Voltage - Output (Max) : 20V
* Current - Output / Channel : 8mA
* Voltage - Forward (Vf) (Typ) : 1.45V
* Current - DC Forward (If) (Max) : 25mA
* Vce Saturation (Max) : -
* Operating Temperature : -55C ~ 100C

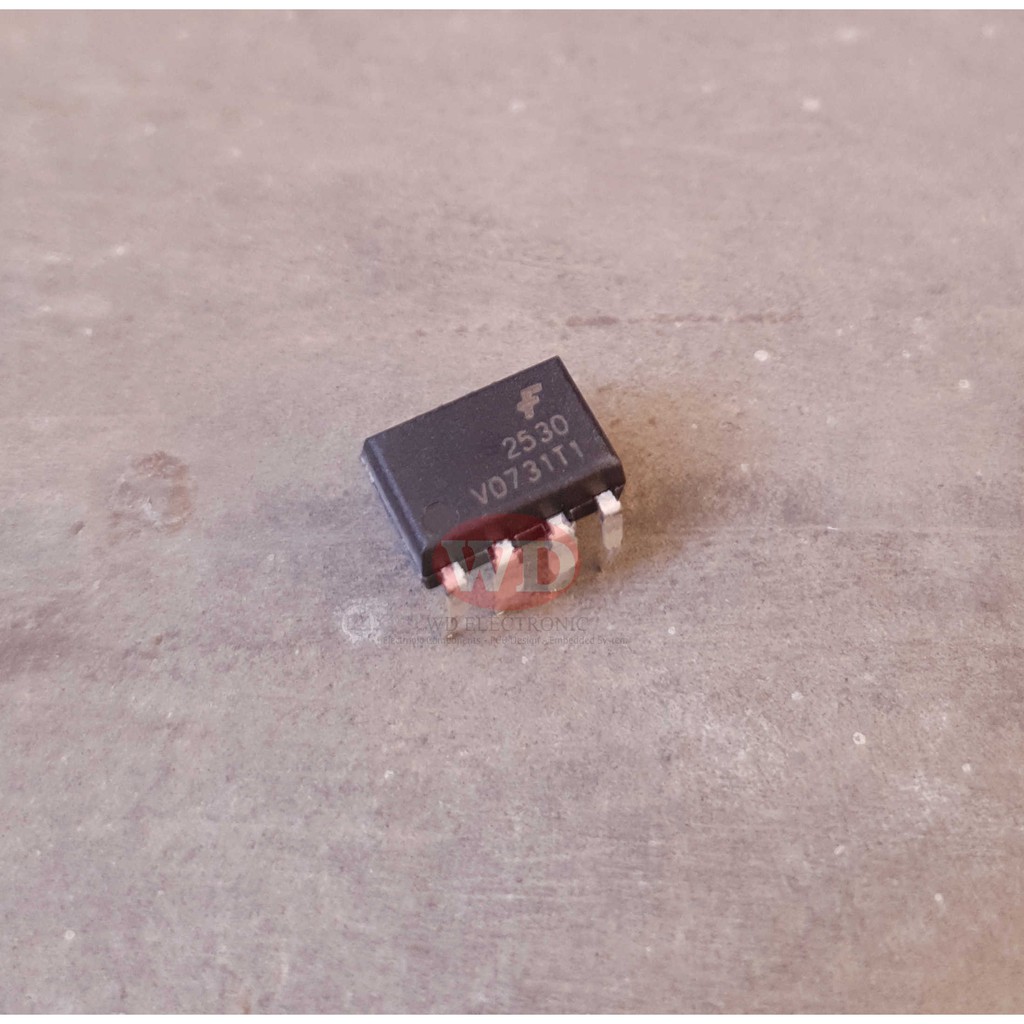

Gambar produk

HCPL2530 HCPL 2530 ORIGINAL
HCPL2530 HCPL 2530 ORIGINAL
HCPL2530 HCPL 2530 ORIGINAL
HCPL2530 HCPL 2530 ORIGINAL
