HC-SR501 SR501 PIR MOTION SENSOR PYROELECTRIC INFRA RED

Detail HC-SR501 SR501 PIR MOTION SENSOR PYROELECTRIC INFRA RED

Spesifikasi::
- Product Type: HC--SR501 Body Sensor Module
- Operating voltage range: DC 4.5-20V
- Quiescent Current: Level output: High 3.3 V /Low 0V
- Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
- Delay time: 5-200S(adjustable) the range is (second to tens of second)
- Block time: 2.5S(default)Can be made a range(to tens of seconds
- Board Dimensions: 32mm*24mm
- Angle Sensor: Operation Temp: -15-+70 degrees
- Lens size sensor: Diameter:23mm(Default)

Fitur:
1, the automatic sensor: to enter the sensor output range is high, people leave the sensor range of the automatic delay off high, output low.
2,the photosensitive control (optional, factory is not set) may set the photosensitive control during the day or light intensity without induction.
3, the temperature compensation (optional, factory is not set): In the summer when the ambient temperature rises to slightly shorter detection range, temperature compensation can be used as a performance compensation.
4, two trigger mode: (can be selected by jumpers)

Isi Paket :
1x PIR MOTION SENSOR PYROELECTRIC INFRA RED SENSOR HC-SR501 SR501 MODULE

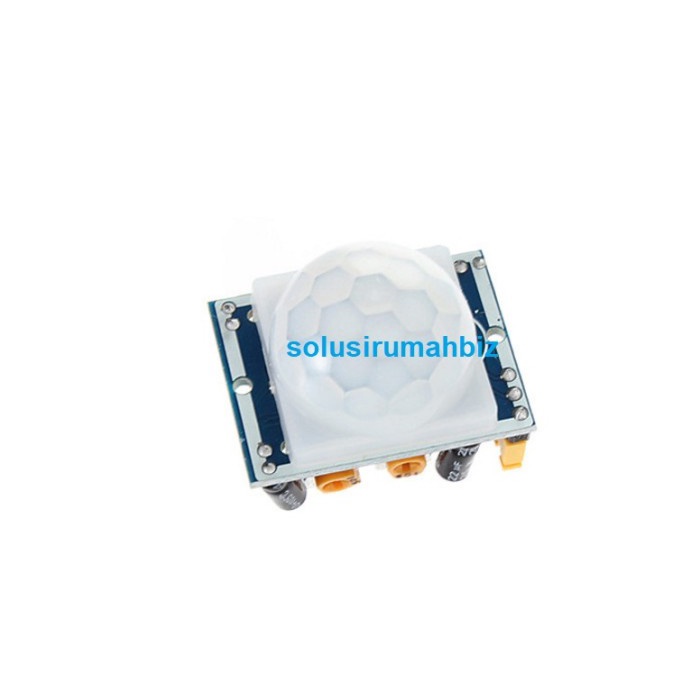

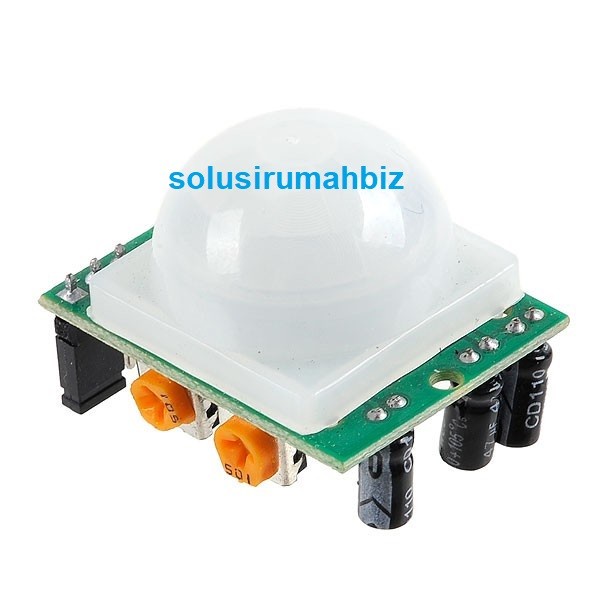

Gambar produk
