HC 05 HC05 BLUETOOTH TRANSCEIVER MODULE FOR ARDUINO UNO MEGA

Detail HC 05 HC05 BLUETOOTH TRANSCEIVER MODULE FOR ARDUINO UNO MEGA

P/N : NET-0002
==========
Kalo agan pengen arduino bisa berkomunikasi dengan Handphone atau laptop agan, maka modul bluetooth HC-05 ini adalah solusi yang tepat, ekonomis dan mudah. Berbeda dengan HC-06 yang hanya bisa di set sebagai slave, HC-05 lebih unggul karena bisa di set sebagai master juga. Modul yang kami jual sudah include adapter plate dengan 6 buah pin header male sehingga mudah untuk digunakan tanpa repot mesti nyolder lagi.
So, tunggu apa lagi gan, silahkan order sekarang!!! :D

Description:
This module can be set to a transmitter or receiver. As a receiver, HC05 could be paired with computers and cell phone bluetooth. the default for receiver.

1. It is HC-05.
2. Use the CSR mainstream bluetooth chip, bluetooth V2.0 protocol standards.
3. Module working voltage 3.3 V.
4. Potter default rate of 9600, the user can be set up.
5. The core module size : 28 mm x 15 mm x 2.35 mm.
6. Working current: matching for 30 MA, matching the communication for 8 MA.
7. Dormancy current: no dormancy.
8. Used for GPS navigation system, water and electricity gas meter reading system.
9. With computer and bluetooth bluetooth adapter, PDA, seamless connection equipment
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach)
Compatible with bluetooth master module".slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55cm*3.98cm
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply

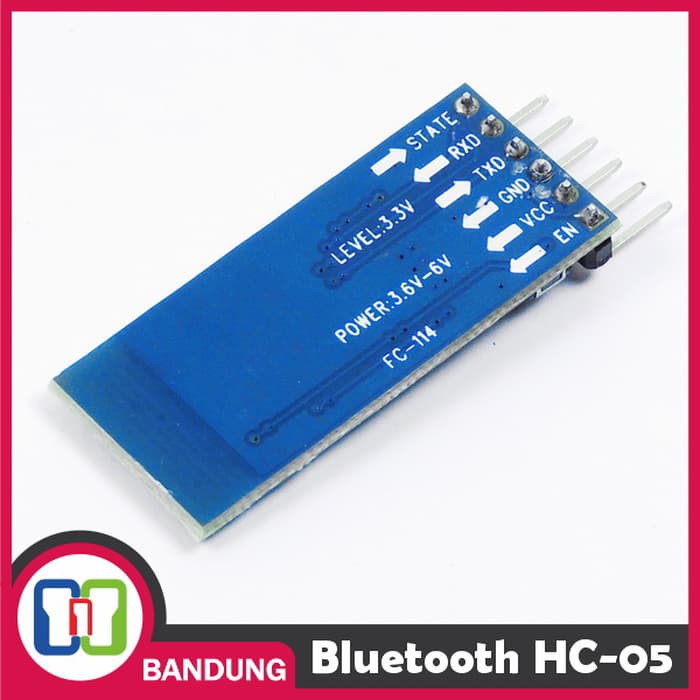

The "State" is output pin for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level"
Paket : 1 x HC-05 BLUETOOTH

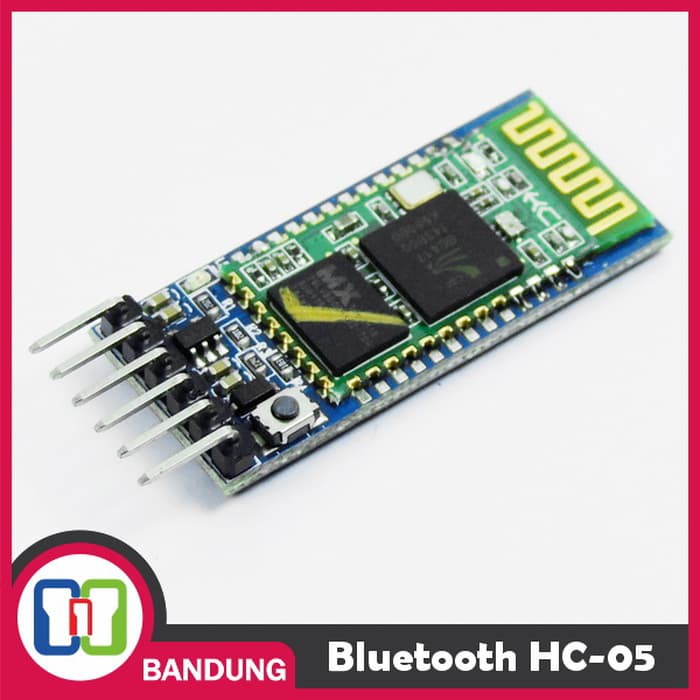

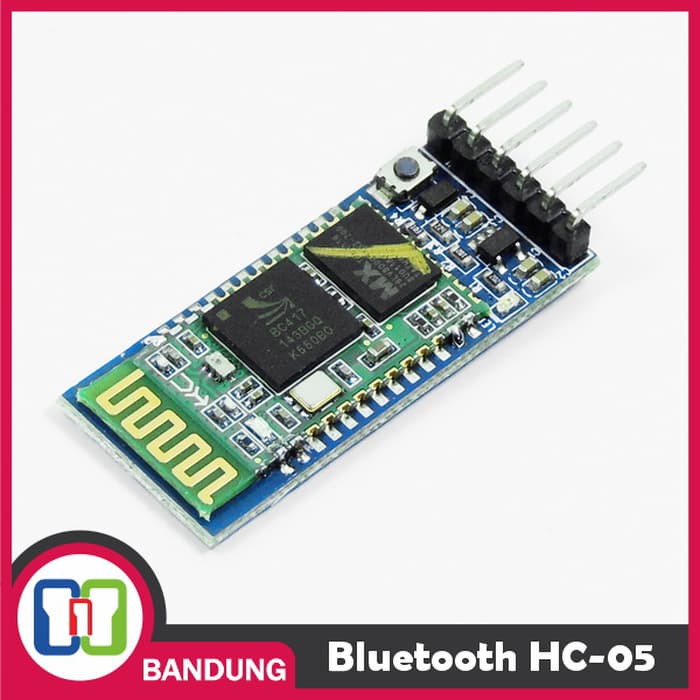

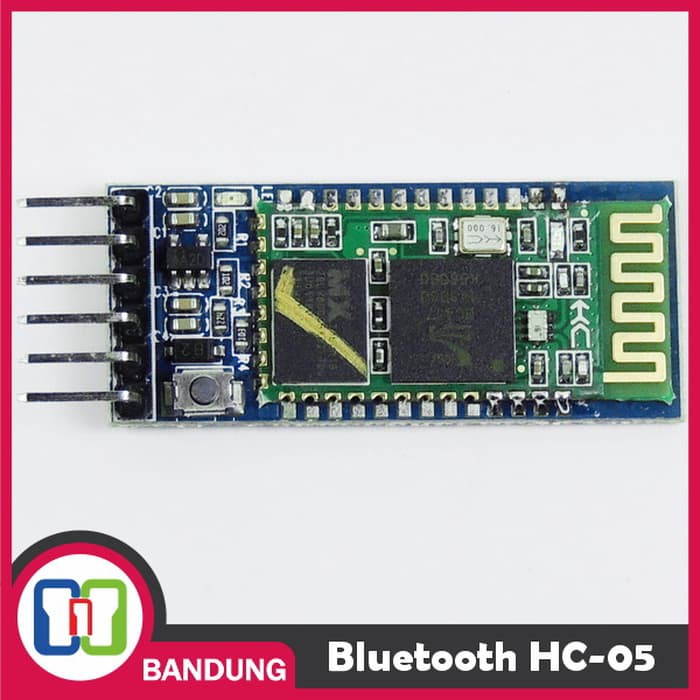

Gambar produk
