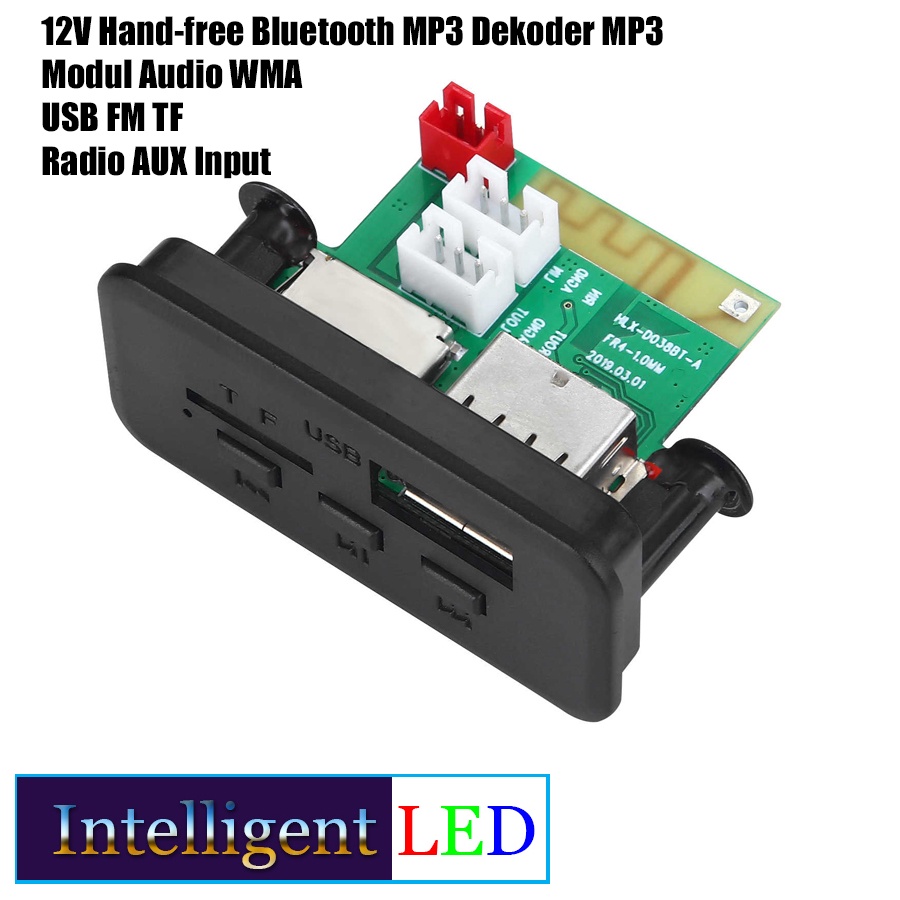

Hands-free Bluetooth 5.0 MP3 Player Decoder Board 12V Car FM Module

Detail Hands-free Bluetooth 5.0 MP3 Player Decoder Board 12V Car FM Module

Model: JQ-D038BT (with Bluetooth)
Shell size: 50*25MM

Function introduction: support Bluetooth function / Jieli scheme, double decoding (solve MP3, WMA, WAV format music) / read USB disk / read TF card / external audio input LINE IN / power supply 12V

First, the main function
Main control IC: AC6925A

Bluetooth IC: AC6925A Bluetooth version is 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format
Radio FM frequency: 87.5-107.5 MHZ

Support function introduction: support MP3/USB/TF/LINE IN/FM/BLUETOOTH/DC
Working voltage: 12V
Panel size: 50 * 24 mm, the depth of the board is 35mm

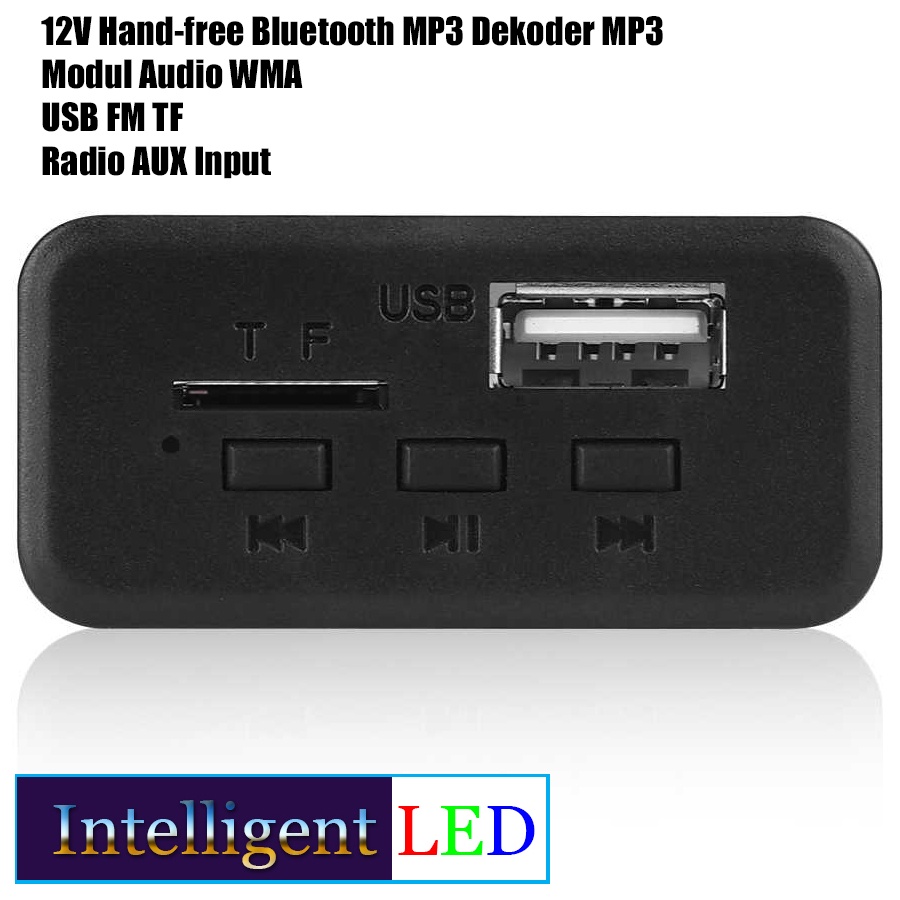

Second, the button operation details
1. PREV button (previous song/volume reduction): In the MP3 state, the PREV short press is the previous song, and the long press is the volume reduction;

2, PLAY button (play / pause): PLAY short press for play / pause in MP3 state; long press is USB / TF card / AUX / Bluetooth mode test tone switch.

3, NEXT button (next song / volume increase): NEXT short press for the next song in MP3 state, long press for the volume to increase;

4. This model has the function of automatic conversion device. When there is no device, the default is in the Bluetooth state. If there is a device, the device is interpreted first.
