HAMMER TEST BETON ALAT UJI KUAT TEKAN BETON ZC3A HT-225A REBOUND

Detail HAMMER TEST BETON ALAT UJI KUAT TEKAN BETON ZC3A HT-225A REBOUND

READY STOCK!!! SIAP DIKIRIM HT -225A

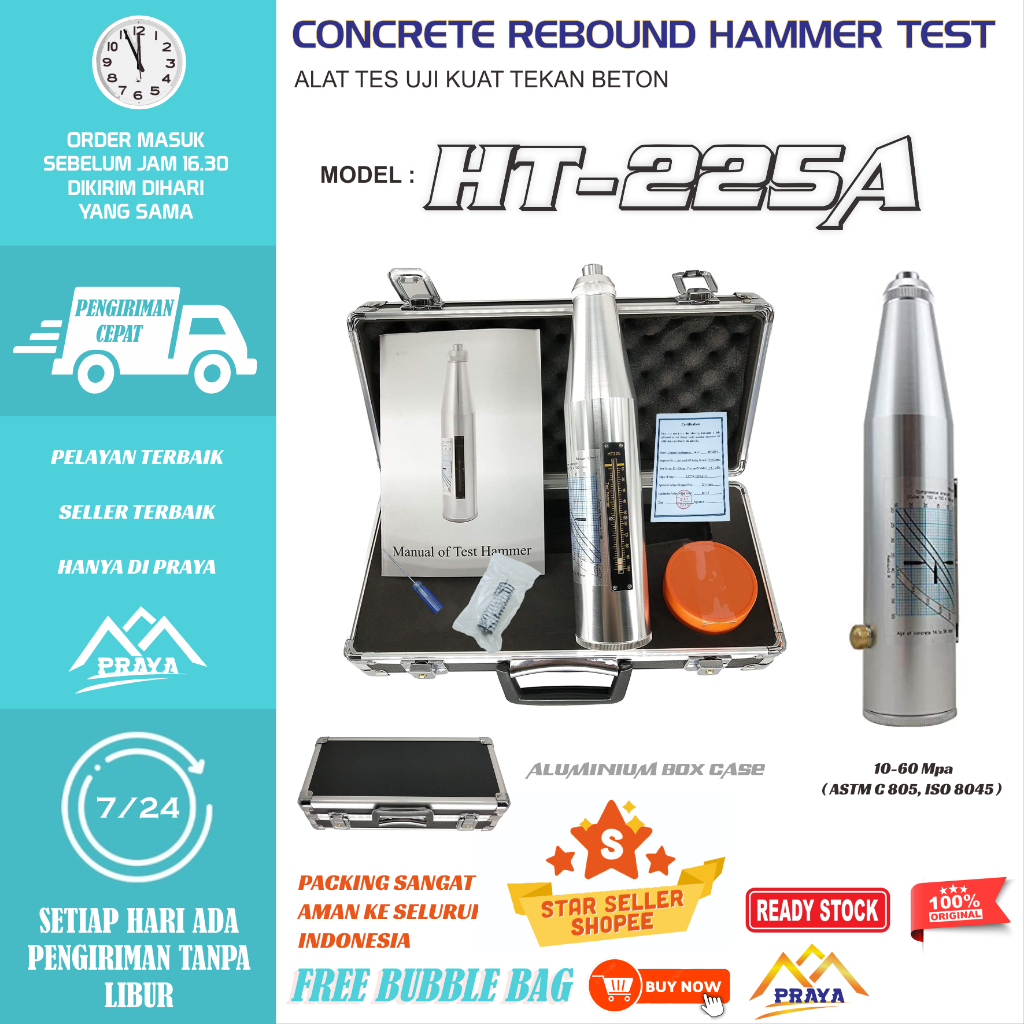

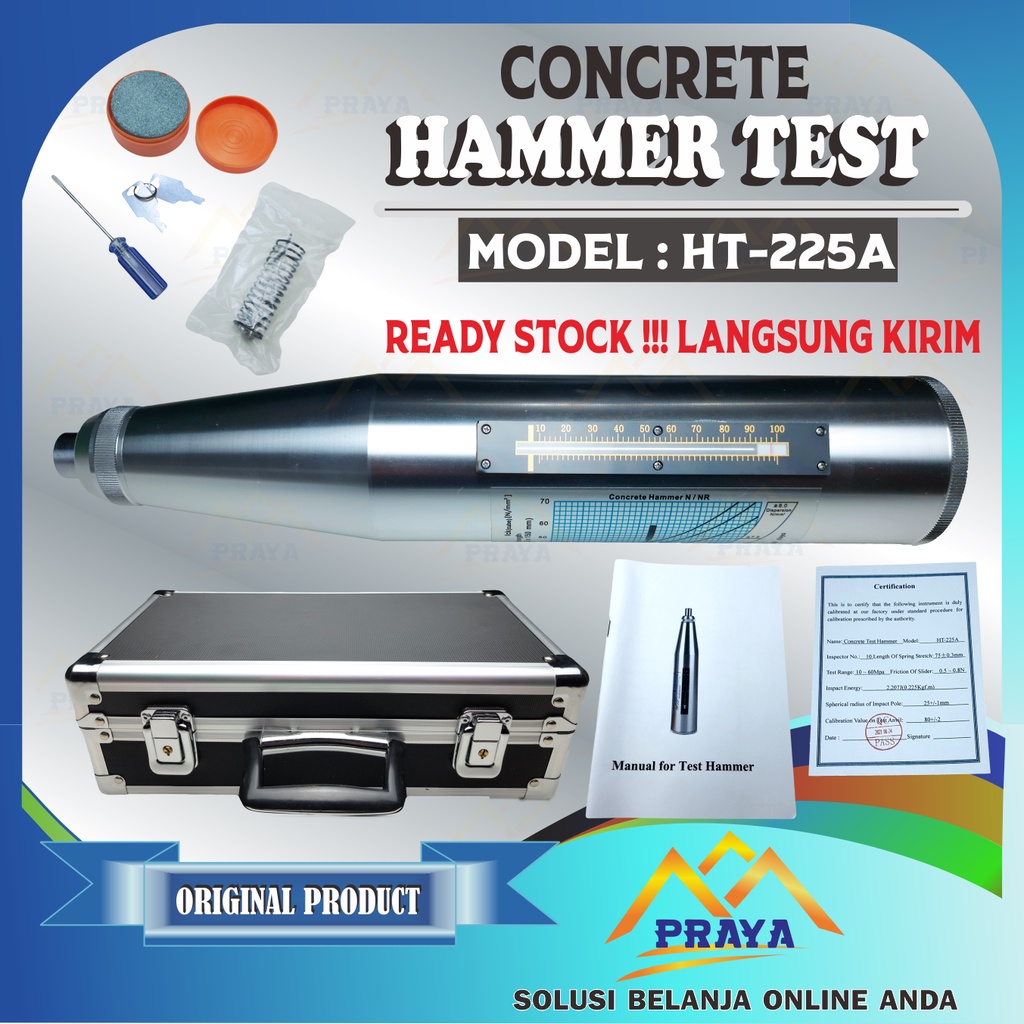

SPECIFICATIONS:HT-225A ( BOX ALUMINIUM )
Nominal kinetic energy : 2.207J (0.225 kgf.m)
Flip tension spring rigidity : 7.84N (0.80 kgf) / cm
Punch advance for impact hammer : 75 mm
Impact surface hardness value between impact hammer and rod : HRC59-63
Maximum breakout friction of pointer system : 0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer : 80+/-2
Standards : ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension : 60 x 280 mm

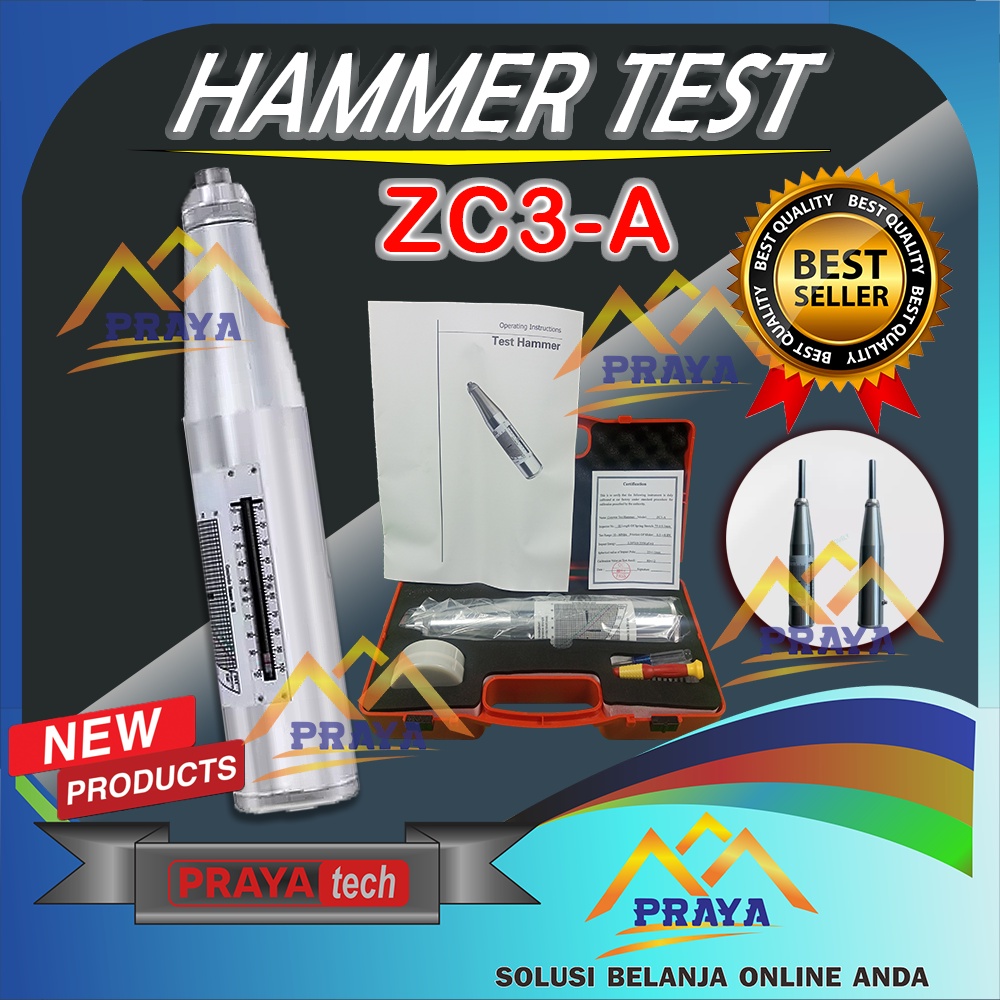

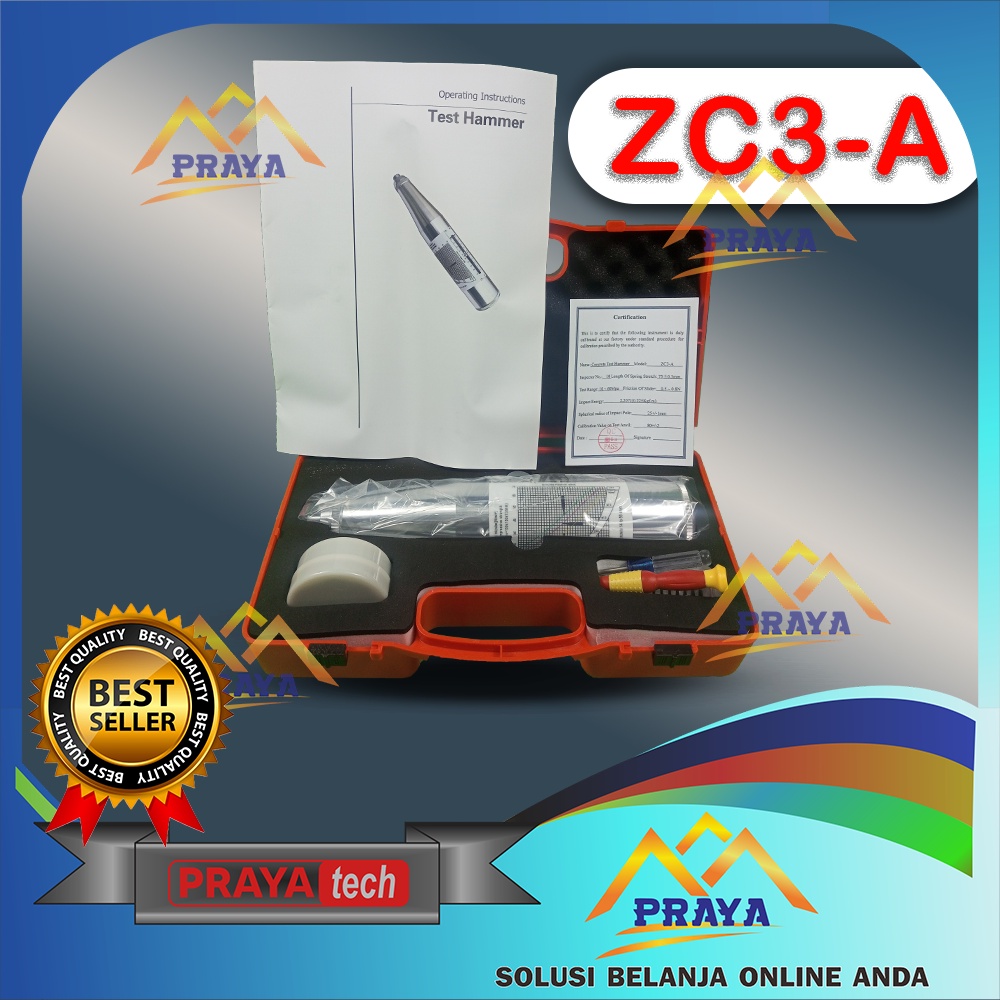

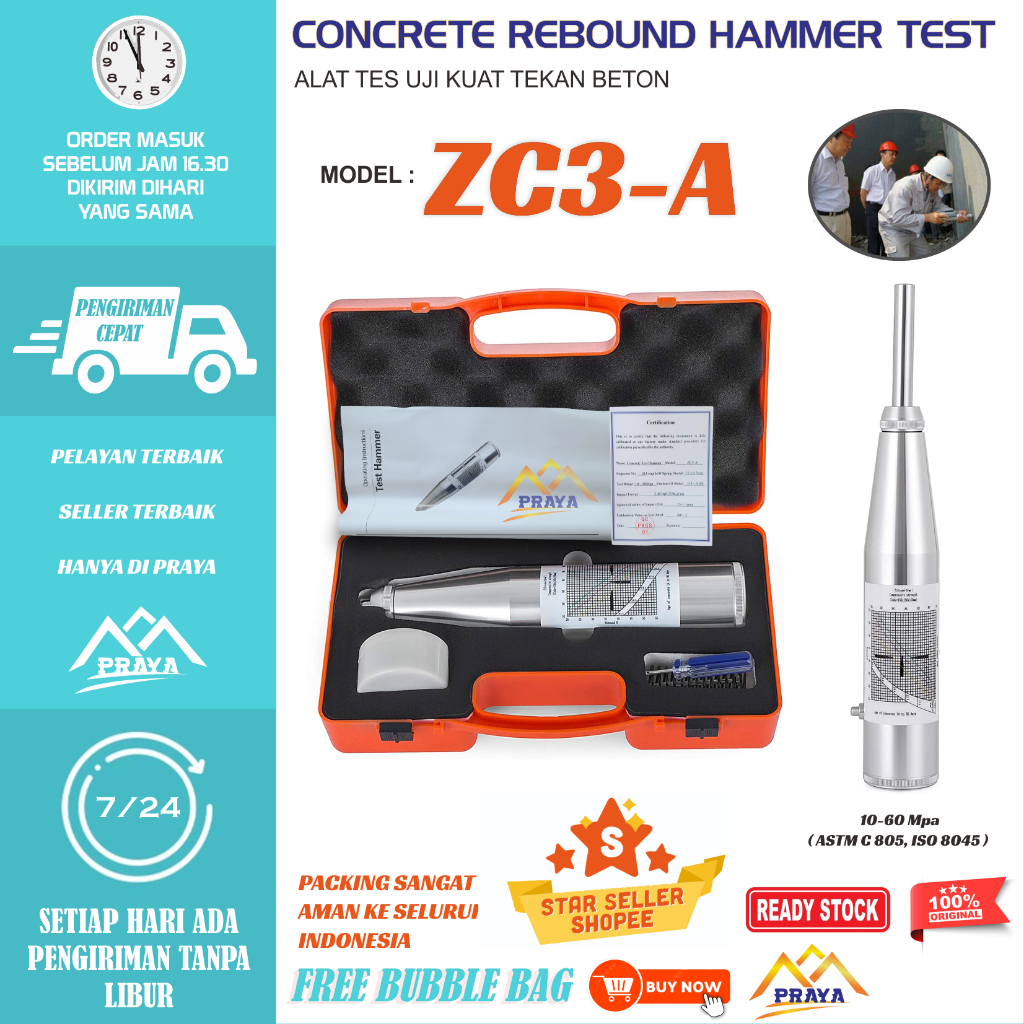

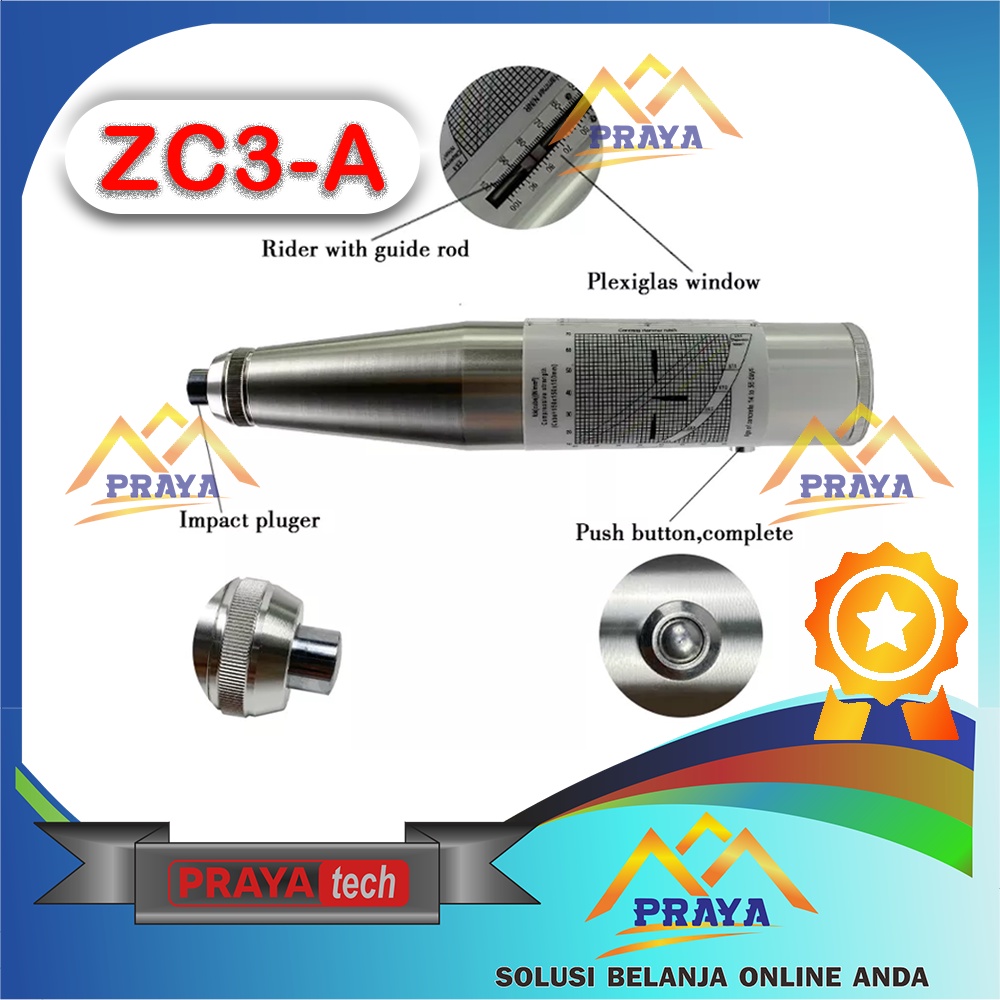

Concrete Hammer Test tipe ZC3-A (BOX PLSATIK)
Alat Uji Beton tipe ZC3-A
Features :
Compressive strength: 10-60 MPa High-elastic, wear-resistant, precision spring
High quality stainless steel body: no rust, high elasticity, wear resistance, long lifespan
The pointer axis smoothness index is accurate and the friction is even, ensuring accurate measurement
Spherical zero adjustment screw; High-strength hook for long life
Guide rod maintenance cycle length; Compressive strength: 10-60Mpa; Rebound kinetic energy: 2.207J; Applicable cement: C10--C60

Gambar produk
