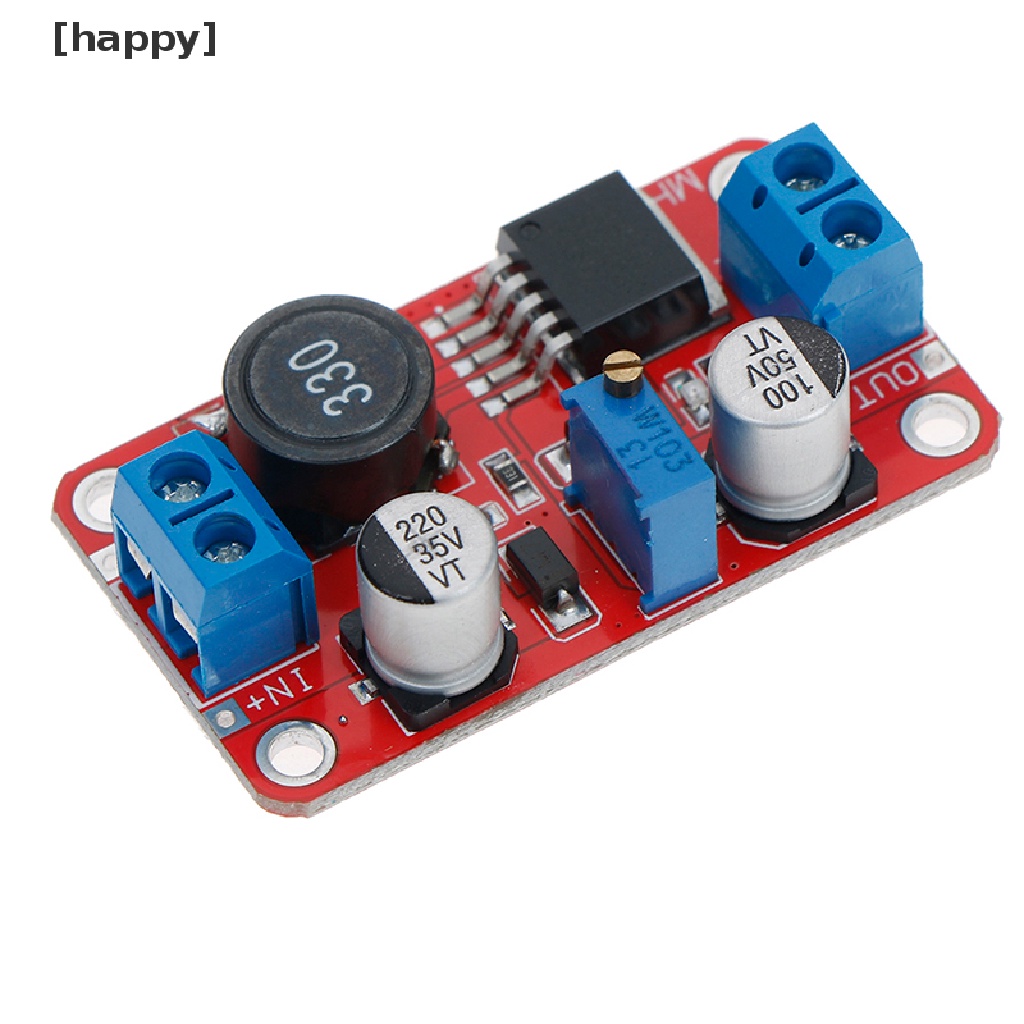

Detail Ha Modul Power Step Up 5a Dc-Dc 3.3v-35v Ke 5v 6v 9v 12v 24v Id

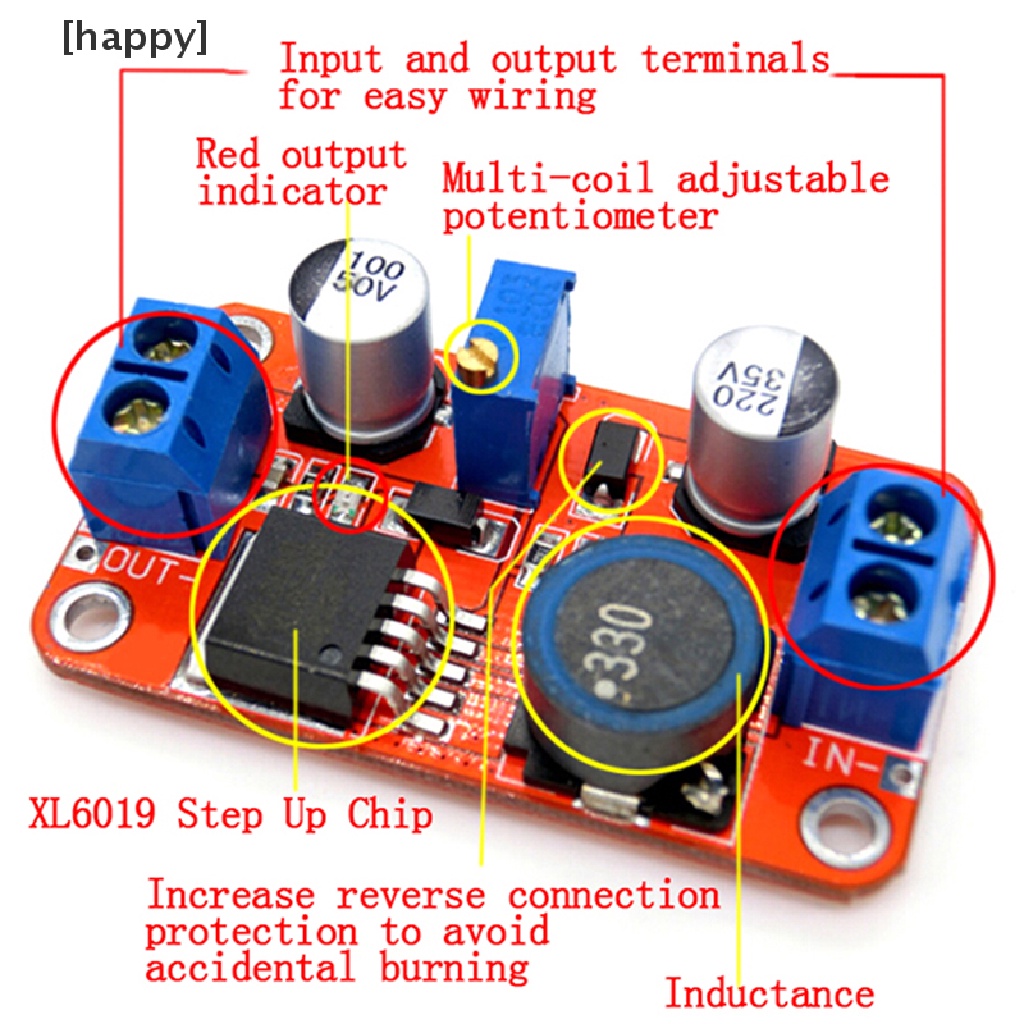

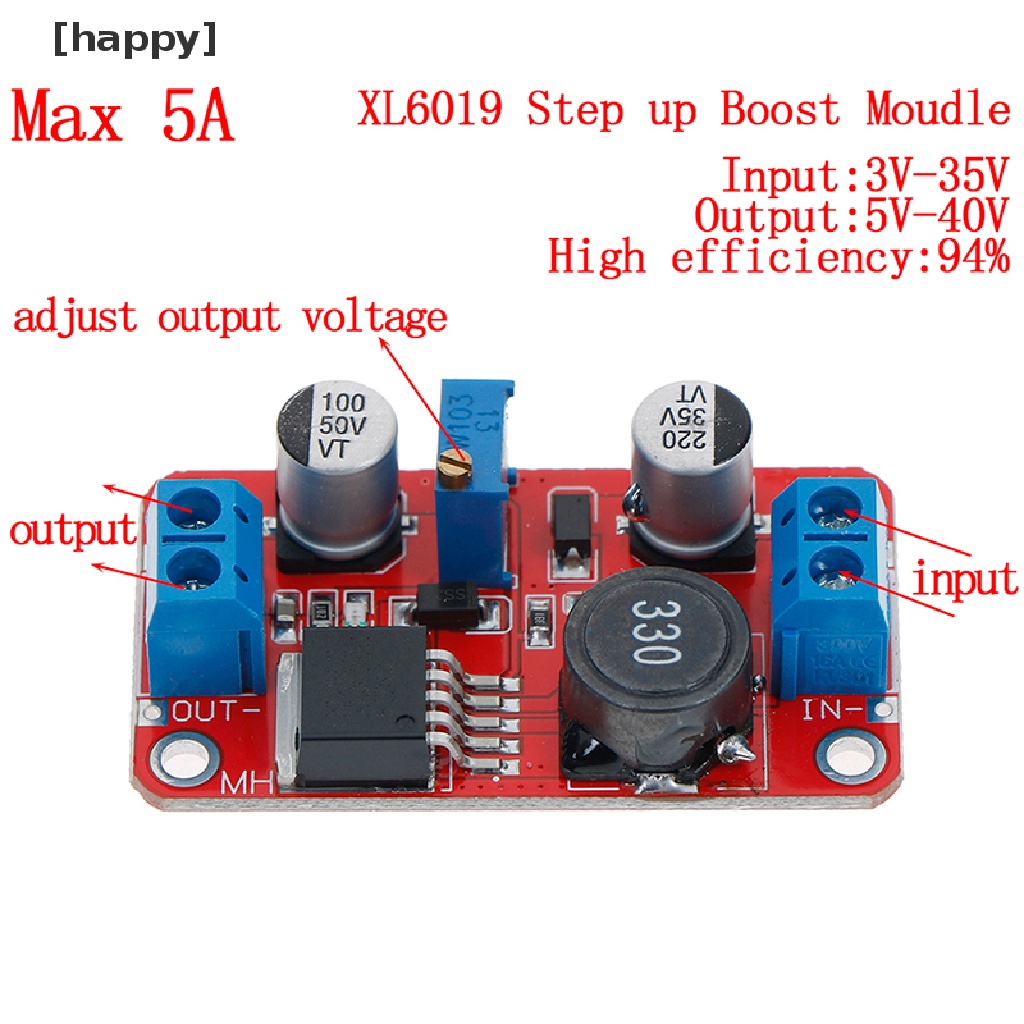

Specification:1.Module feature:XL6019 step up module
2.Module type:Non-isolated boost
3.Rectification method:Non-synchonous rectfication
4.Input voltage:3V-35V
5.Output voltage:5V-40V(notes can not step down voltage)
6.Input current:3A(maximum 5A)
7.Transfer efficiency:94%(The highest)Normal efficiency for 85%
8.Switching frequency:220KHz
9.Output ripple:<100mV
10.Load regulation:+-0.5%
11.Voltage regulation:+-0.5%
12.Operating temperature:-20℃~+85℃

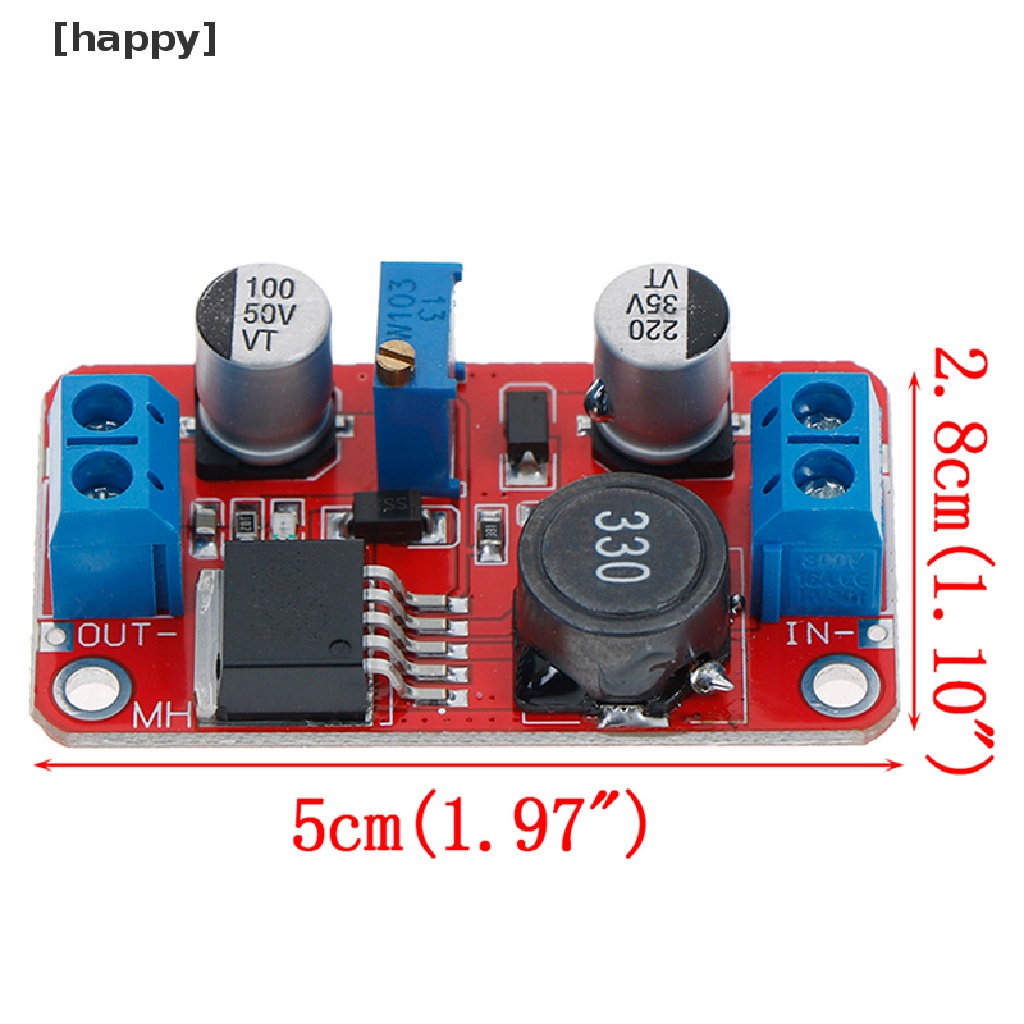

13.Size:5cmx2.8cmx1.2cm(2.28"x1.10"x0.47")
Package include:
1Pcs 5A DC-DC Step Up Power Module
