Detail GY273 HMC5883L GY-273 Triple Axis Magnetometer Digital Compass Module

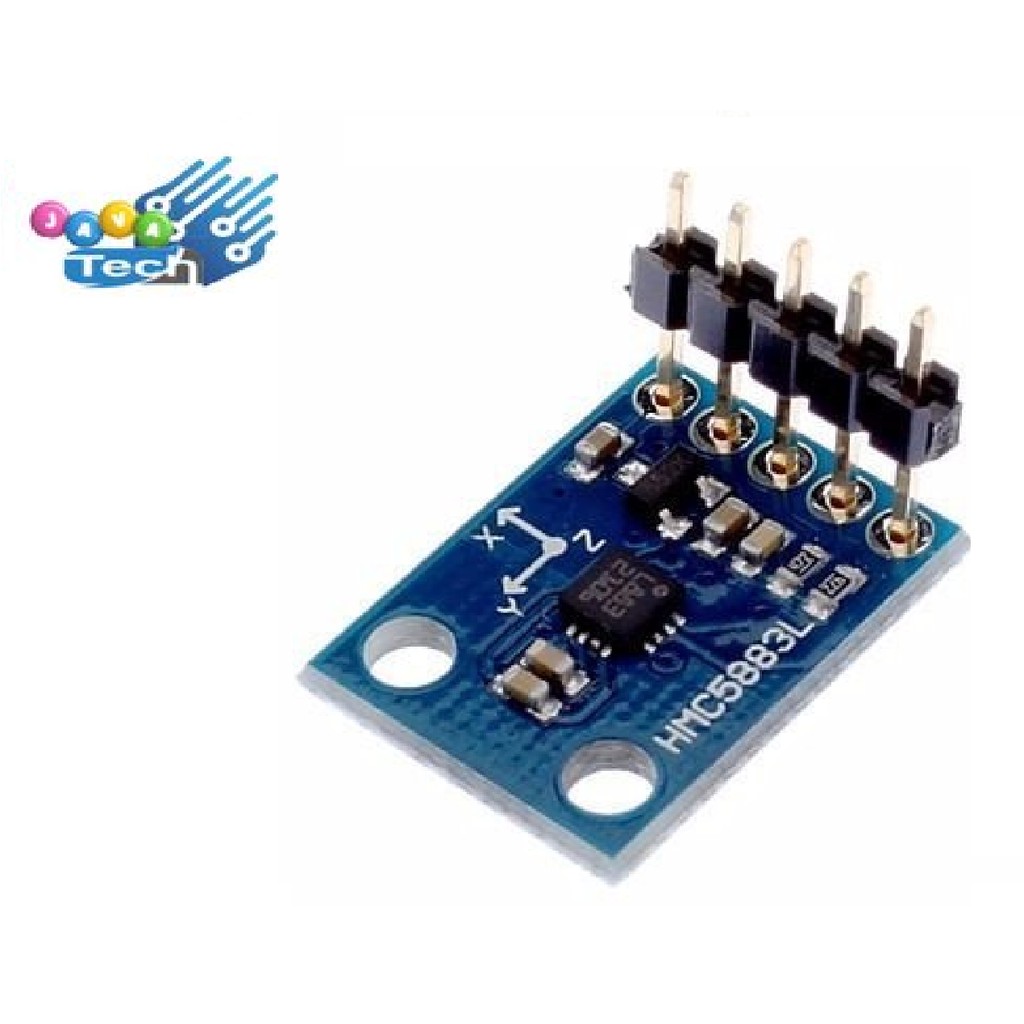

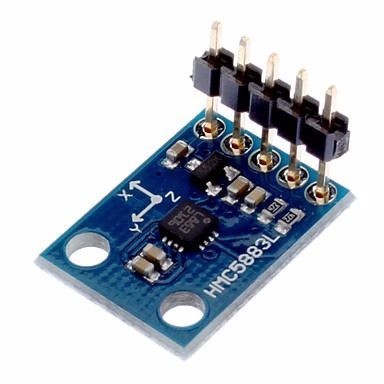

GY273 HMC5883L GY-273 Triple Axis Magnetometer Digital Compass ModuleThe GY-273 Triple Axis Magnetometer module is made using Honeywell HMC5883L, an IC for low magnetic field sensing. It is able to measure magnetic fields ranging from 1.3 ~ 8 gauss and provides I2C digital interface for applications such as low cost magnetometry and compassing. This module can easily be interfaced with Arduino Boards, Raspberry Pi, 3.3V and 5V microcontrollers as it can work from 3V to 5V supply.
** Specification
Supply Voltage : 3 ~ 5V
Communication : Standard I2C Protocol
Based on IC HMC5883L
Measuring range: 1.3 ~ 8 gauss
High Resolution HMC118X series Magneto Resistive Sensors
Automatic Degaussing Strap Drivers
Offset Cancellation
12 bit ADC ensuring 1 to 2 accuracy
Low Power Consumption (100uA)

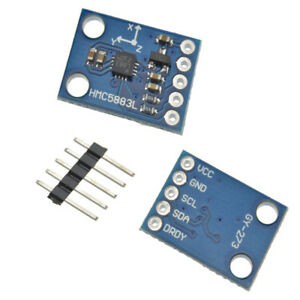

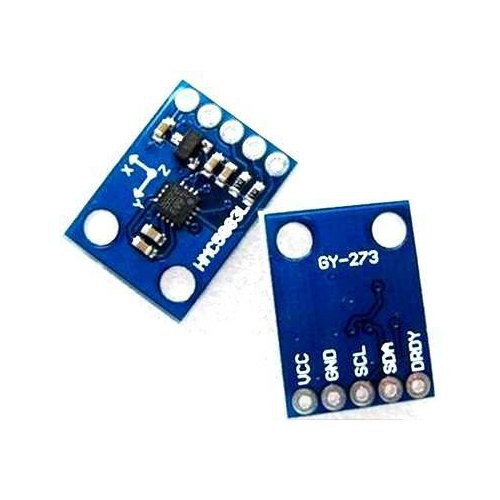

** PIN Configuration
Pin 1: VCC
Pin 2: GND
Pin 3: SCL
Pin 4: SDA
Pin 5: DRDY
