Detail GY-BME280 3.3V BAROMETRIC PRESSURE GY BME280 3.3

Hi #RekanEasyWare ...
EasyWare Part#: EP000561

FITUR DAN SPESIFIKASI :
* Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)
* Supply voltage VDD main supply voltage range: 1.71 V to 3.6 V
* VDDIO interface voltage range: 1.2 V to 3.6 V
* Current consumption 1.8 uA @ 1 Hz humidity and temperature
2.8 uA @ 1 Hz pressure and temperature
3.6 uA @ 1 Hz humidity, pressure and temperature
0.1 uA in sleep mode
* Operating range -40+85 C, 0100 % rel. humidity, 3001100 hPa- Humidity sensor and pressure sensor can be independently enabled/disabled
* Package: 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA

KELENGKAPAN :
* 1pcs GY-BME280-3.3
* 1x6 HEADER MALE

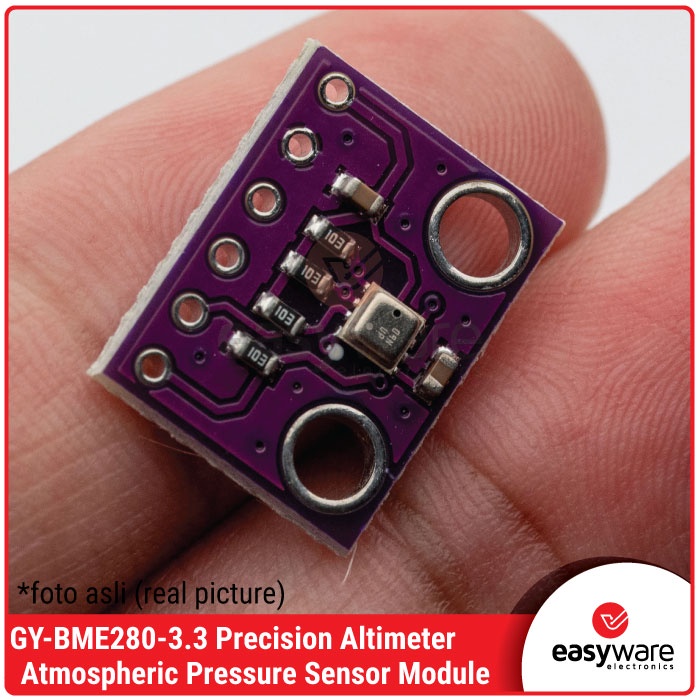

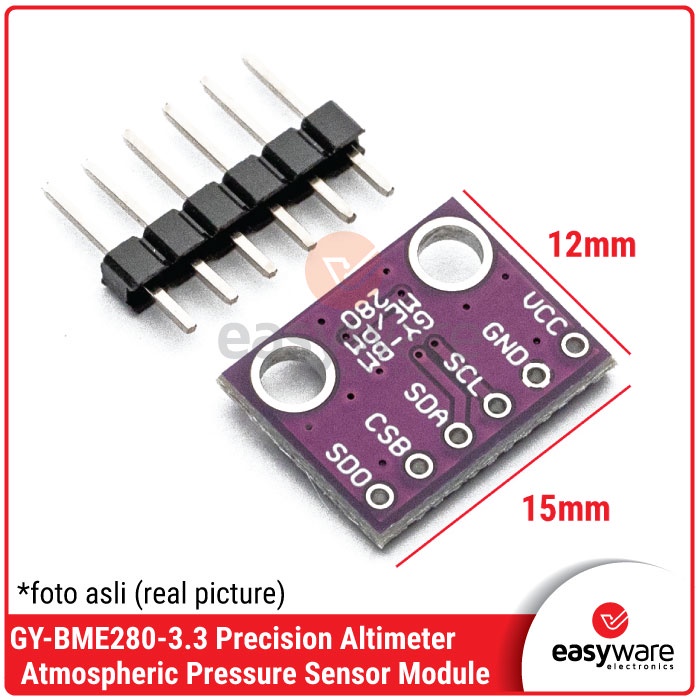

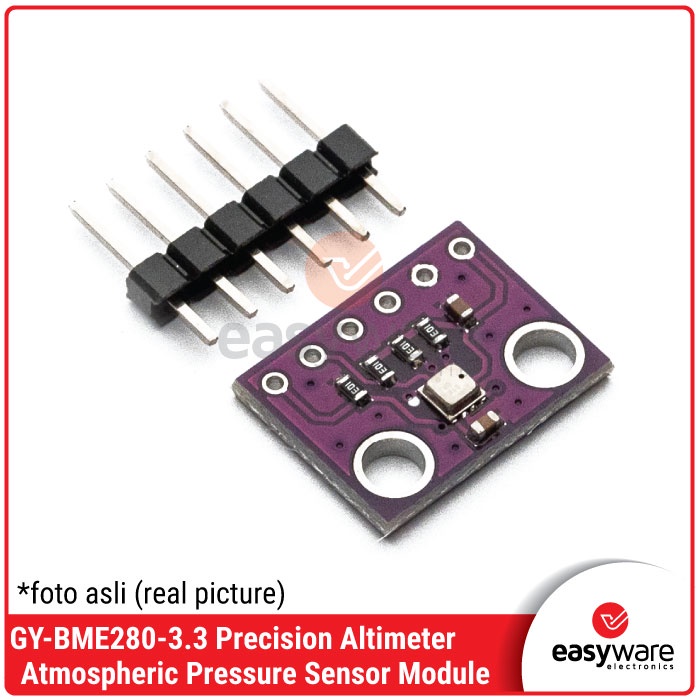

Gambar produk
