Detail GY-953 AHRS module, electronic compass with tilt compensation module M

Deskripsi Produk
GY953 AHRS module, electronic compass with tilt compensation module

Module size: 15.5mm*15.5mm

Communication, 1 (9600115200), 2.SPI serial communication (line 4)

Power supply: 3v-5v 15mA

The output frequency of update 100HZ,

Resolution 0.1 degrees

Direct output:

The 1 Euler angles (YAW ROLL PITCH)

2 original data of nine axis sensor (gyroscope, accelerometer,magnetometer)

3 the four element of the output

With sensor calibration command

A magnetometer, heading angle drift

A host computer software

The existing data read program (serial port and SPI): 51 single chip computer, STM32, ARDUINO

Gambar produk

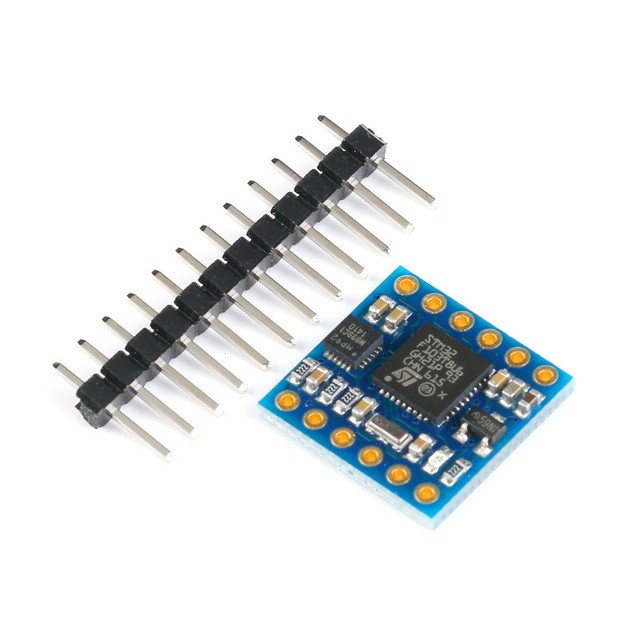

GY-953 AHRS module, electronic compass with tilt compensation module M

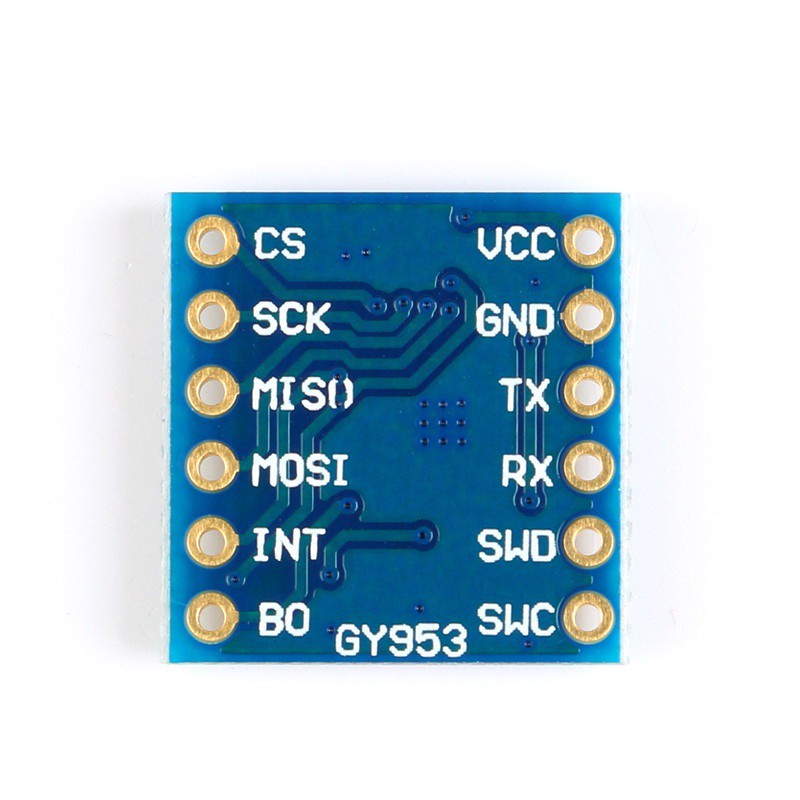

GY-953 AHRS module, electronic compass with tilt compensation module M
GY-953 AHRS module, electronic compass with tilt compensation module M
GY-953 AHRS module, electronic compass with tilt compensation module M
