GY-68 Digital Barometric Sensor / Sensor Barometer BMP180
Measuring the absolute pressure of the enviroment using a digital barometersuch as this has some interesting applications. By converting the pressure

measured into altitude, you have a reliable sensor for determining the height
of your robot, plane or projectile!
Using a sensor as capable as the BMP180 you can achieve accurary of 1m, with noise
of only 17cm in ultra high resolution noise. The device will operate at only 0.3uA meaning
low current draw for battery powered applications.
The BMP180 comes fully calibrated and ready to use.
As the device operates over I2C we ve added optional I2C pull ups
that can be enabled using the PU (pull up) jumper on the board
for your convinience and ease during breadboarding.
Using I2C, the device provides pressure and temperature as 16bit values,
which are used along with calibration data within the device are used to provide
a temperature compensated altitude calculation.
This device is really easy to use, if your thinking of using it with an Arduino then
you need to check out our BMP180 arduino tutorial! Features:
1.8V to 3.6V Supply Voltage
Low power consumption - 0.5uA at 1Hz
I2C interface
Max I2C Speed: 3.5Mhz
Very low noise - up to 0.02hPa (17cm)
Full calibrated
Pressure Range: 300hPa to 1100hPa (+9000m to -500m)
Weight: 1.18g
Size: 21mm x 18mm

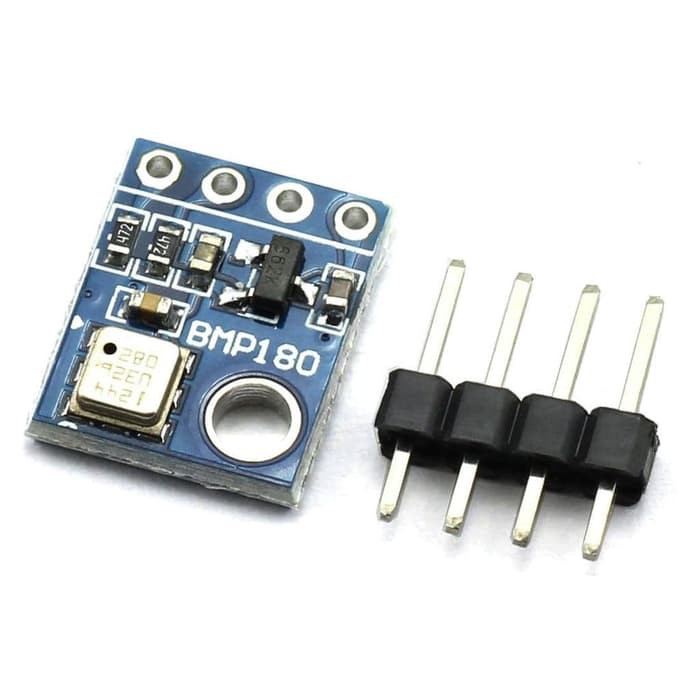

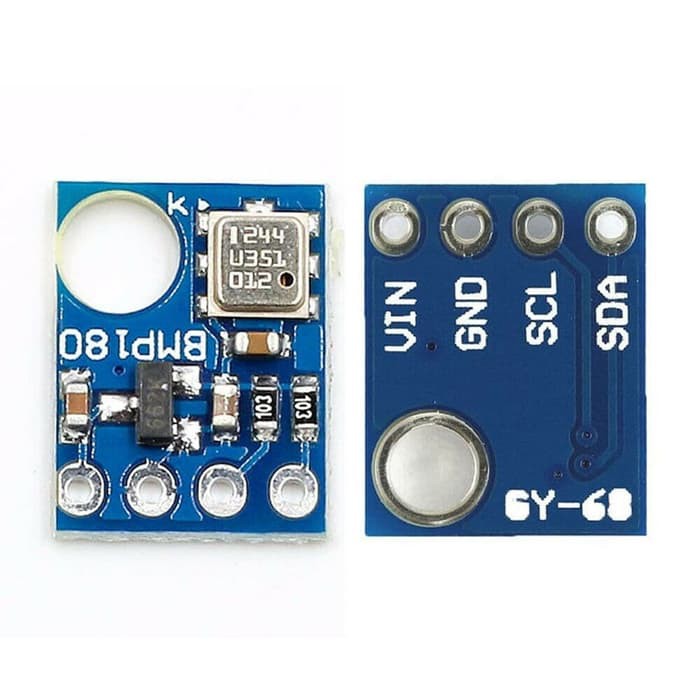

Gambar produk
