GY-6500 MPU6500 6-Axis Motion Sensor Gyroscope/Accelerometer I2C

Detail GY-6500 MPU6500 6-Axis Motion Sensor Gyroscope/Accelerometer I2C

Hi #RekanEasyWare ...
EasyWare Part#: EP000481

MPU6500 Gyroscope/Accelerometer/Digital Motion Processor(DMP) 6-axis Motion Sensor with I2C/SPI Interface features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. It houses the accelerometer and gyroscope. Hence, this MPU-6500 is a 6-axis Motion Tracking device that combines a 3-axis accelerometer and 3-axis gyroscope, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.

The MPU-9250 also features an embedded temperature sensor. This module includes pull-up resistors on the SDA, SCL, and nCS lines, pull-down resistors on the FSYNC and AD0 lines, and an onboard 3.3V voltage regulator allowing you to power the module from 5V sources such as an Arduino. If you desire to power the module from 3.3V you can bridge the solder jumper next to the voltage regulator to bypass the regulator.

Fitur:
- Acceleration and Gyroscope
- 6 DOF module
- Build-in ultra-low noise linear LDO voltage regulator.
- Built-in onboard filters, which reduce noise from the motor and other high current electronics.
- All sensors are connected to the I2C bus.
- Build-in the Logic level converter for I2C.
- Power indicator LED.
- Using Immersion Gold PCB, machine welding process to ensure quality.
- On-board pull-up resistors on SDA, SCL, and nCS
- On-board pull-down resistors on FSYNC and AD0

Spesifikasi:
- Power Supply: 4.4 to 6.5 V or 3.3V (if you solder the jumper near the on-board voltage regulator)
- Gyro range: ± 250 500 1000 2000 ° / s
- Acceleration range: ± 2 ± 4 ± 8 ± 16g
- Degree of Freedom (DOF): 6
- Interface: I2C
- Size: 22x17mm

Kelengkapan:
- 1x MPU6500 Gyroscope/Accelerometer/Digital Motion Processor (DMP) 6-axis Motion Sensor
- 1x Jumper Header(Unsoldered)

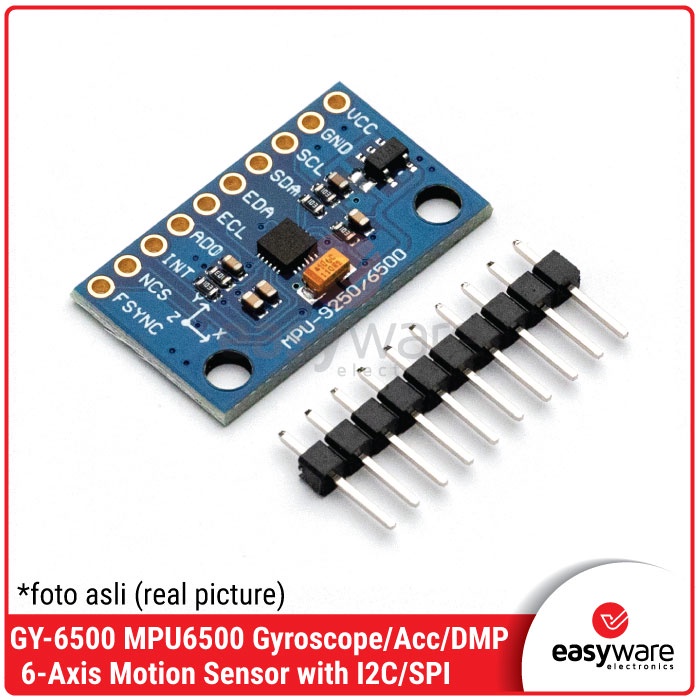

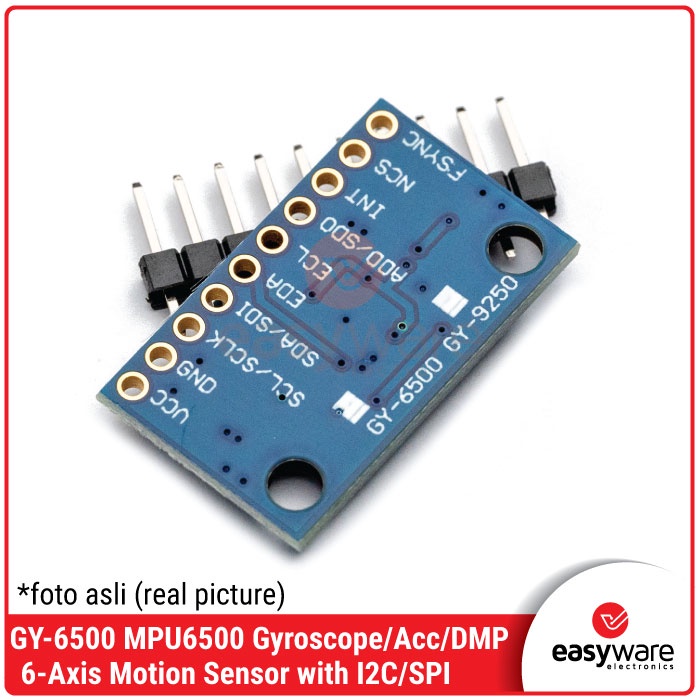

Gambar produk
