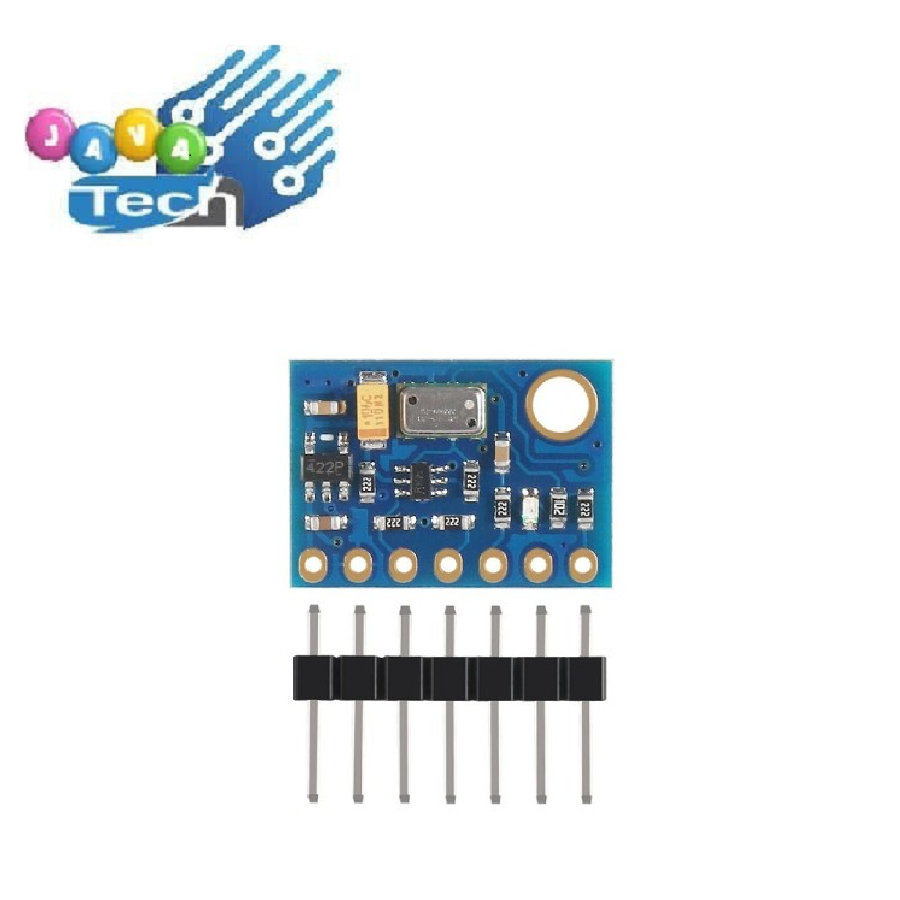

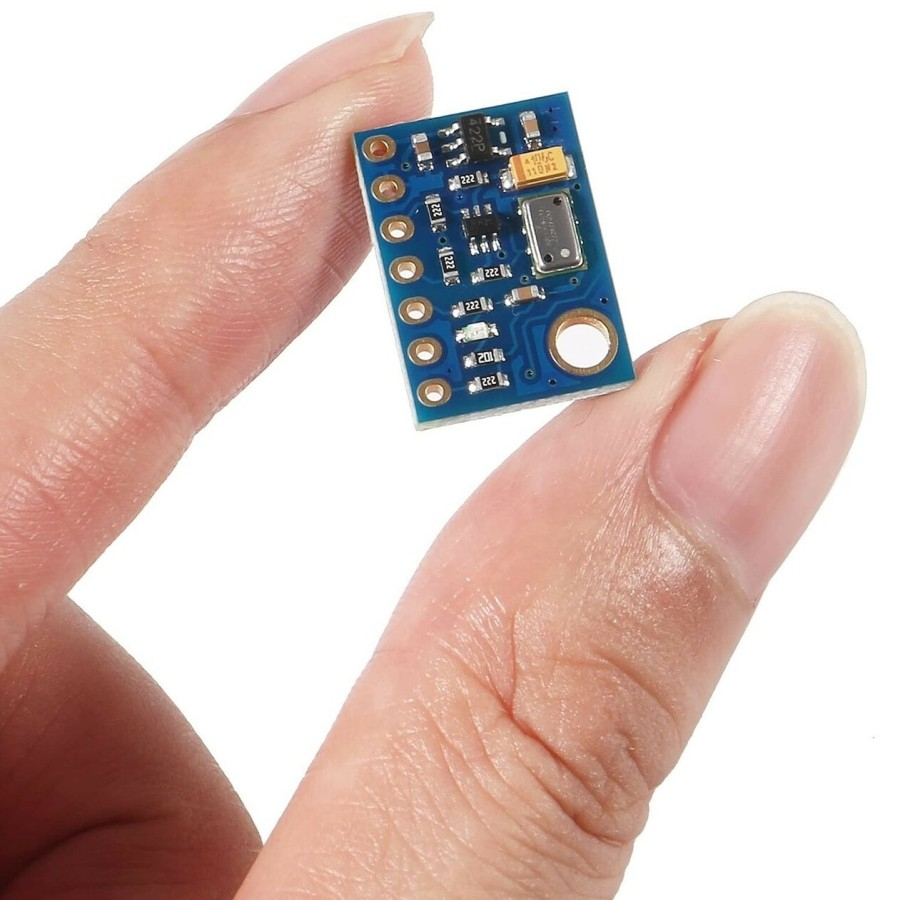

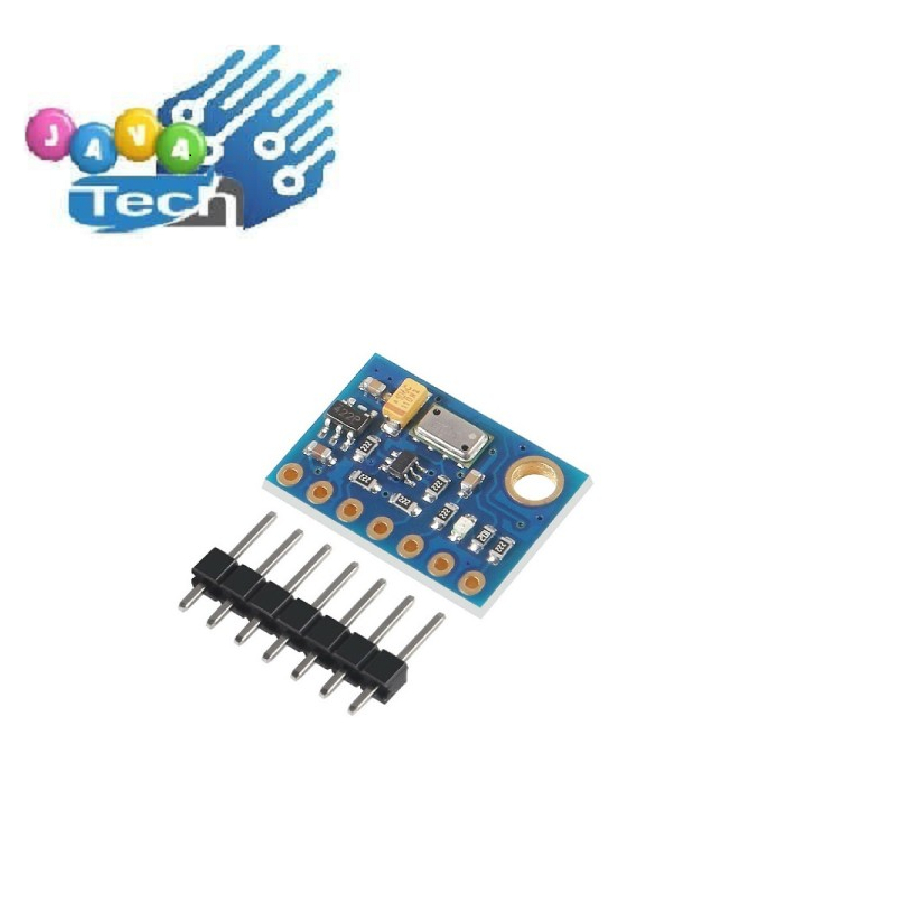

GY-63 MS5611 High Precision Altimeter Atmospheric Pressure Sensor

Detail GY-63 MS5611 High Precision Altimeter Atmospheric Pressure Sensor

Manufacturer model: GY-63
Built-in 24bit AD converter chip
Power supply :3-5v (internal low dropout regulator)
Use Chip: MS5611-01BA03
Model: GY-63
High quality Immersion Gold PCB, machine welding process to ensure quality

Description:
Module Model: GY-63
Name: MS5611 module (atmospheric pressure module)
Built-in 24bit AD converter chip
High quality Immersion Gold PCB, machine welding process to ensure quality
Use chip: MS5611
Power supply: 3-5v (internal low dropout regulator)
Communication: Standard IIC / SPI communication protocol

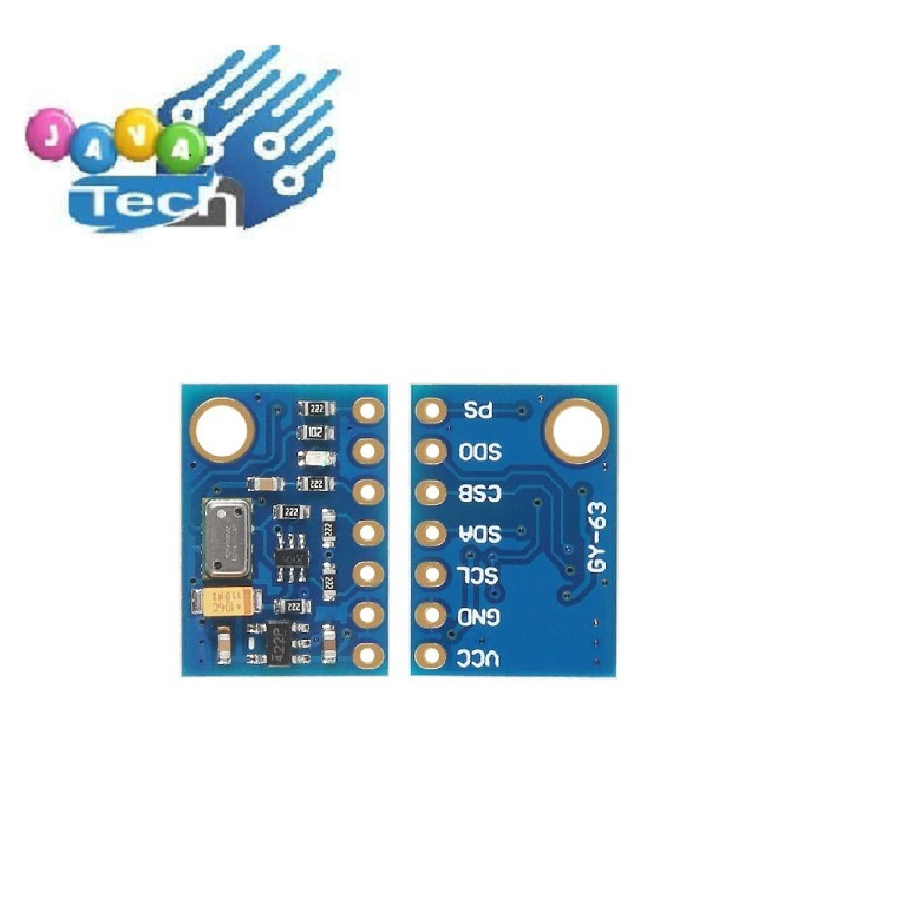

- VCC = 5V nominal. Connect to 5V output of the MCU
- SCL = Clock (SCL / SCK) for I2C and SPI
- SDA = Data (SDA / SDI) for I2C (atau Data In for SPI)
- CSB = Chip Select. Address select for I2C (default 0x77 or 0x76 jika dipullup ke Vcc). Chip Select for SPI.
- SDO = Data Out (SDO) for SPI
- PS = Protocol Select. Default pulled HIGH for I2C. Connect to GND for SPI

Gambar produk
