GY-362 ADXL362 Module Three Axis Acceleration Sensor Module SPI Interface

Description:

ADXL362 is an ultra low power, 3 axis MEMS accelerometer, the output data power consumption is less than 2Hz when the rate is 100 A,Power consumption in motion triggered wake mode is 270 nA.Different with the use of periodic sampling to achieve low power consumption,ADXL362 did not pass through under sampling mixed input signal;It uses the full data rate to sample the entire bandwidth of the sensor.

ADXL362 typically provides 12 bit output resolution;When the lower resolution is sufficient,also provide 8 bit data output to achieve a more efficient single byte transfer. The measurement range is 2 g, 4 g and 8 g,within the range of 2 g, the resolution is 1 mg/LSB.The noise level requirements of less than ADXL362, the normal value 550 g/ V H's

using can choose one of the two low noise mode,power supply current increase minimum.

In addition to ultra low power consumption, ADXL362 has many features to achieve real system level energy saving. The device contains a deep multi mode output FIFO,a built in micro power temperature sensor and several motion detection modes, including threshold adjustable sleep and wake mode,In this mode the power consumption is as low as 270 nA when the rate is about 6 HZ.

If necessary, provide a pin output to a direct control the external switch when the movement is detected. In addition,ADXL362 also supports external control of the sampling time and / or system clock.ADXL362 can work in a wide supply voltage range from 1.6V to 3.5V, and it is necessary to work with the host interface with independent low power supply voltage.

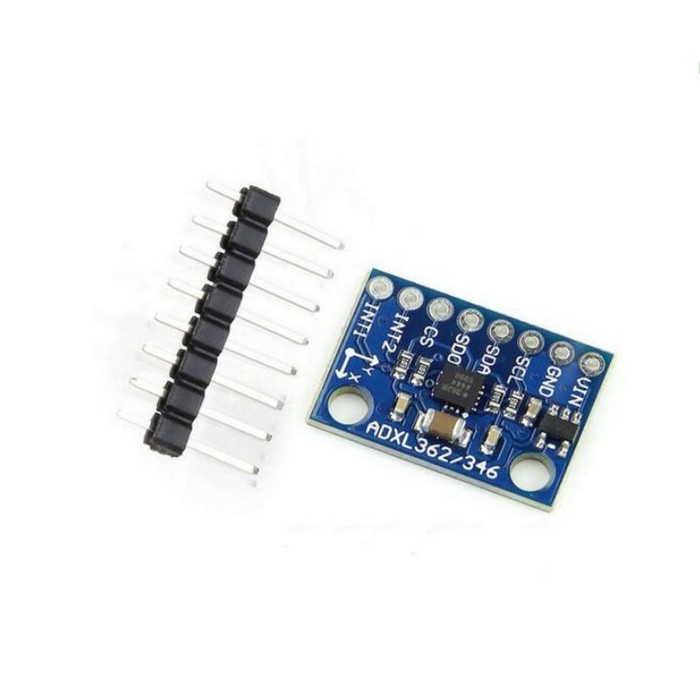

Gambar produk
