GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module

Elektronik > Elektronik Lainnya > GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000581

Catatan:
- Foto asli stok EasyWare Electronics.
- Harga untuk 1pcs.

TSL2561 is an optical-to-digital converter that converts light intensity into a digital signal output with a direct I2C connection or SMBus interface. Each device is connected to a bandwidth photodiode and an infrared responsive photodiode on a separate CMOS integrated circuit that has the ability to provide a near-optical response of a 20-bit dynamic range. Two integrated ADCs convert the photocurrent into a digital output that represents the measurement of the illumination of each channel. This digital output can be the input of a microprocessor.

Fitur:
- The upper and lower thresholds of the light intensity of the programmable configuration permit, and an interrupt signal is given when the actual illuminance exceeds the threshold;
- Digital output conforms to the standard SMBus (TSL2560) and I2C (TSL2561) bus protocols;
- Analog gain and digital output time programmable control;
- In low power mode, the power consumption is only 0.75 mW
- Automatically suppress light fluctuations of 50 Hz/60 Hz.

Kelengkapan:
- 1x GY-2561 Luminosity Sensor Infrared Light Sensor Module

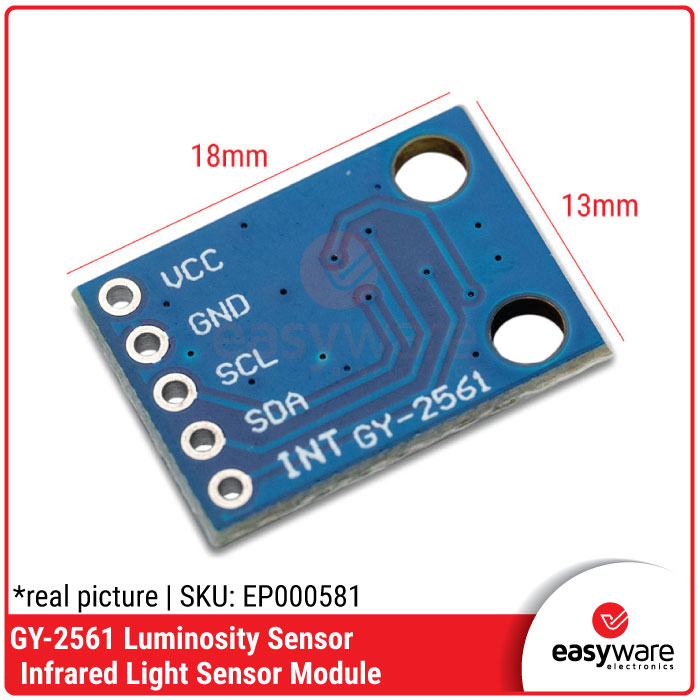

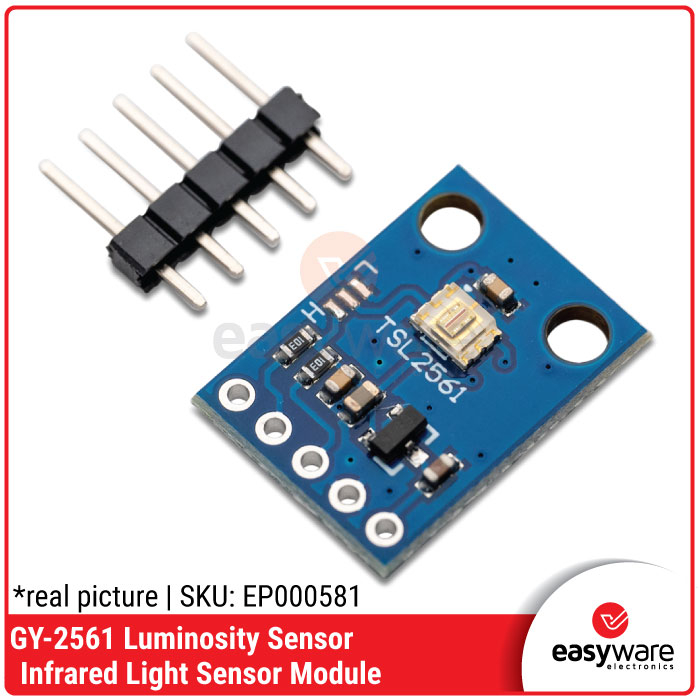

Gambar produk

GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module
GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module
GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module
GY-2561 TSL2561 Luminosity Sensor Breakout Infrared Light Sensor Module
