GX16 3pin 16mm aviation Wire Panel plug socket Konektor *SF06
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Perkakas Tangan > GX16 3pin 16mm aviation Wire Panel plug socket Konektor *SF06
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail GX16 3pin 16mm aviation Wire Panel plug socket Konektor *SF06
Harga untuk 1 setGX16 3pin 16mm aviation Wire Panel connector plug socket Konektor AM73
Description:
Widely used in aviation, nevigation, and some other sealing electronic equipments, data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries.
Main technical characteristics:
Diameter :16mm
Environmental conditions
Ambient temperature: -50 ~ +70 C
Relative humidity: up to 98% at +40 C
Atmospheric pressure: up to 4,4 kpa
Vibration: vibration frequency 10 ~ 100Hz, acceleration 100m/s2
Impact: Frequency of 60 to 80 beats / min, acceleration of 250m/s2
Centrifugal: acceleration 250m/s2
Rated voltage: 2 core /3 core/ 4 core- 400V, 5 pin /6 pin /7 pin /8pin- 250V Rated current: 5A
Contact resistance: (each contact pair)Less than 0.005
Insulation resistance: In normal conditions, not less than 1000M; after constant warm tests, not less than 20M.
Test voltage: (50Hz, RMS) In normal conditions, 2 core /3 core/ 4 core-1500V, 5pin/ 7pin -1200V,
After constant warm test, 2 pin/ 3 pin /4 pin -1200V, 5pin /7pin- 1000V
Separation Force: Each single foot separation force is 1-3N, total separation force is one and a half of the upper limit total amount of every single foot separation Force.

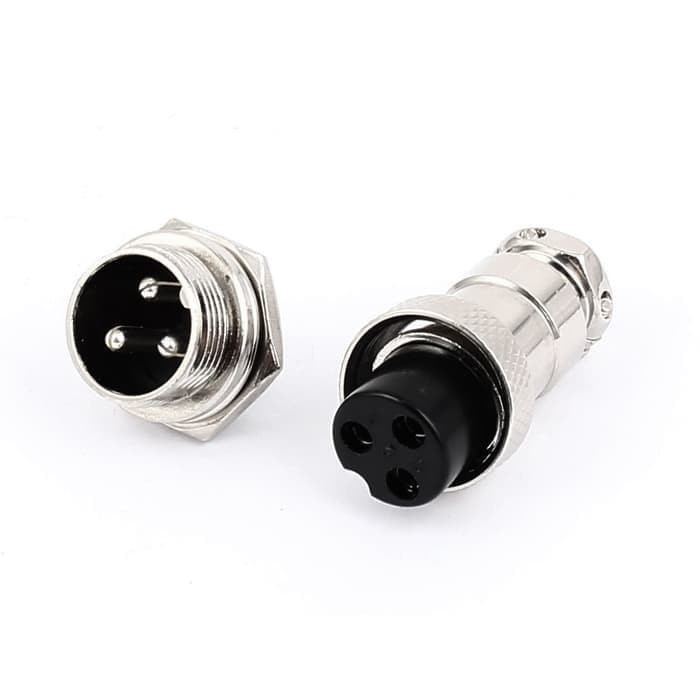

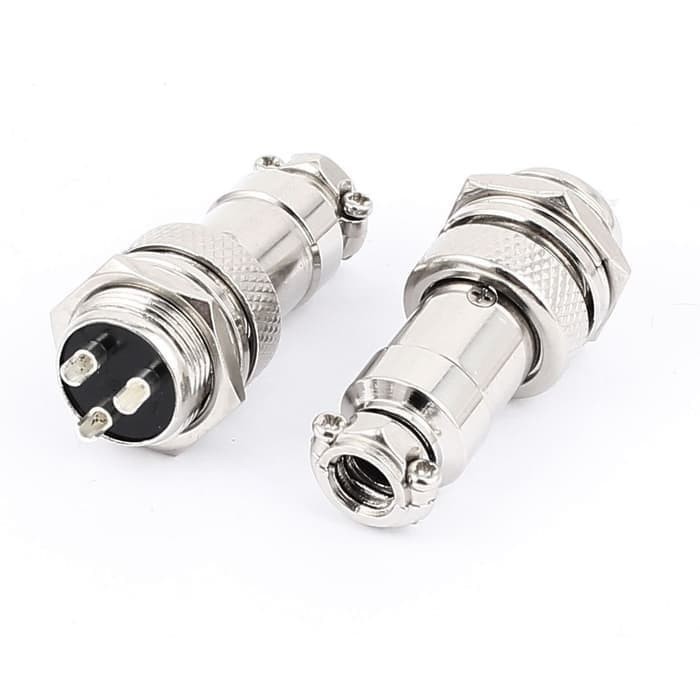

Gambar produk
