GV13T AC220V Diesel Generator Digital Voltmeter Frequency Hour Test Panel Meter

Detail GV13T AC220V Diesel Generator Digital Voltmeter Frequency Hour Test Panel Meter

Description:
GV13T is one light and low price-orientated module used for checking and demonstrating Voltage, Frequency and accumulating time of generator. This module can replace old meters, for it can be one with multi-functions. It uses normal screw for connection which is more convenient for installation.

Features:
Voltage, frequency and accumulating time can be checked and demonstrated in the mean time;
Results shown by 4-position digital LED tube
Self-recycling of parameters
with Page Turning Buttons
Extra working power is not needed

Parameter demonstration
Phase voltage (V)
Frequency (Hz)
Accumulating time(H)
Current Time(T)

Specification:
Working Power:AC 185~265V
Cumulative running time: 0-9999H
Consuming Power:MAX 1W
Recycling Time:Voltage:5s,Frequency:5s
Accumulating time:2s
Temperature:-20~~75

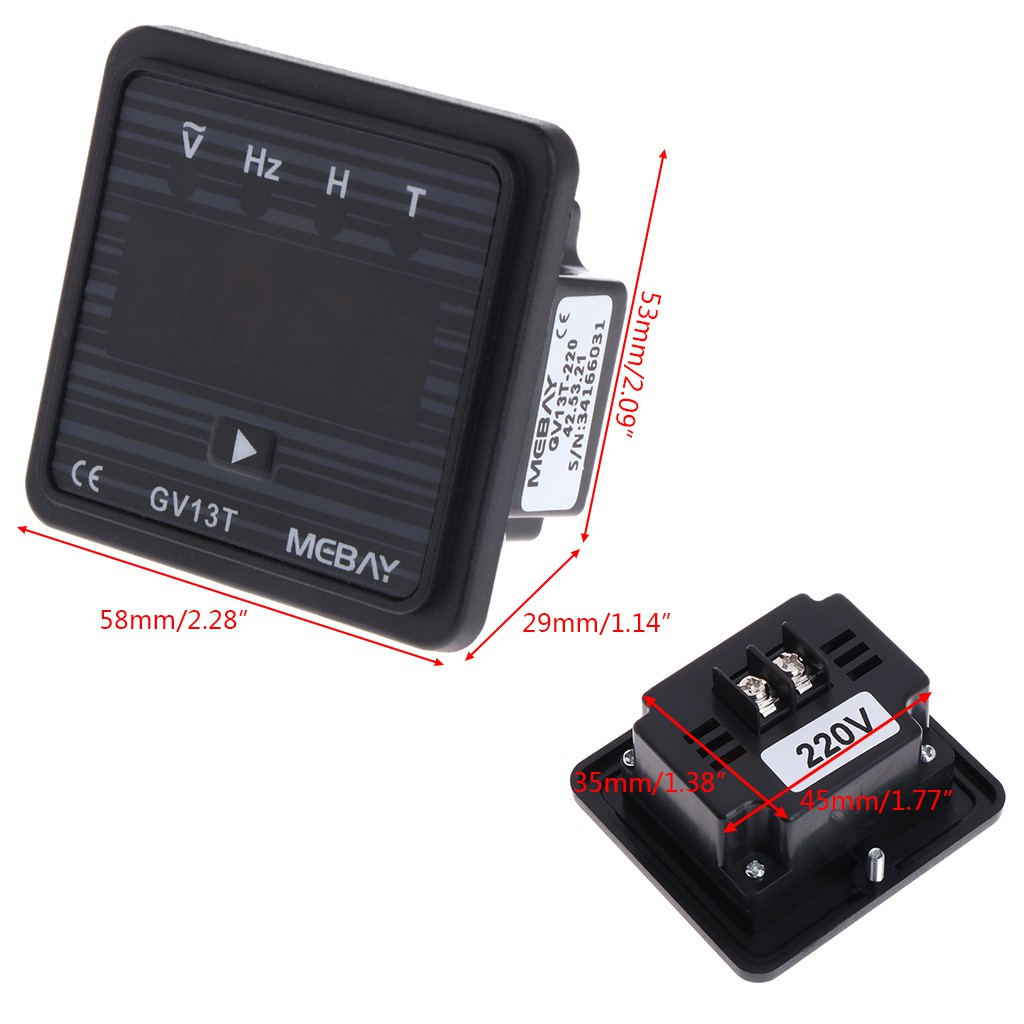

Volume size (W * H * D): 58mm * 54mm * 41mm
Mounting hole (W * H): 47mm * 37mm
Weight:45g

Package include:
1 * GV13T Digital Voltmeter Frequency Hour Meter
