Detail Grove WiFi 8266 - IoT for Micro:Bit and Beyond - ESP8266 12F IoT

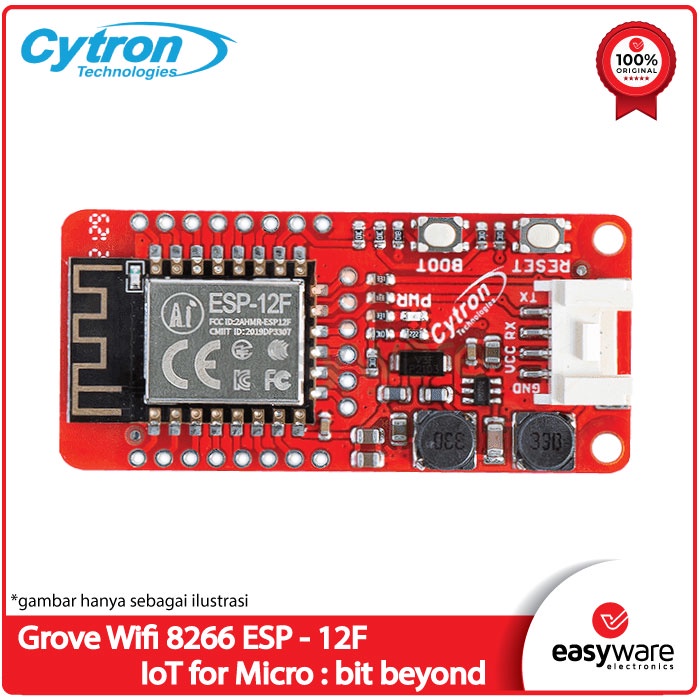

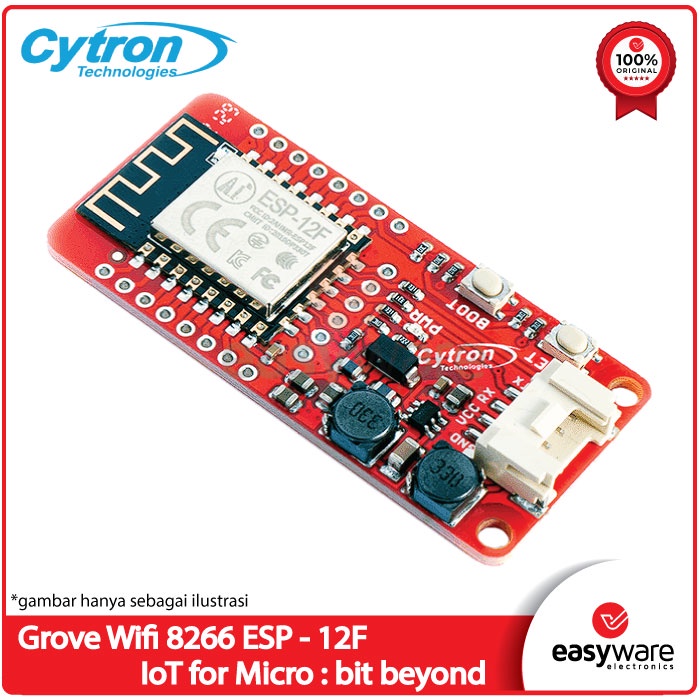

The Grove WiFi 8266 IoT for micro:bit & Beyond is designed to enable your micro:bit (and other controllers too) to send/receive data over the internet through the Wi-Fi network. It is based on the Ai-Thinker's ESP-12F module and comes preloaded with the new Espressif ESP-AT firmware v2.2.0.

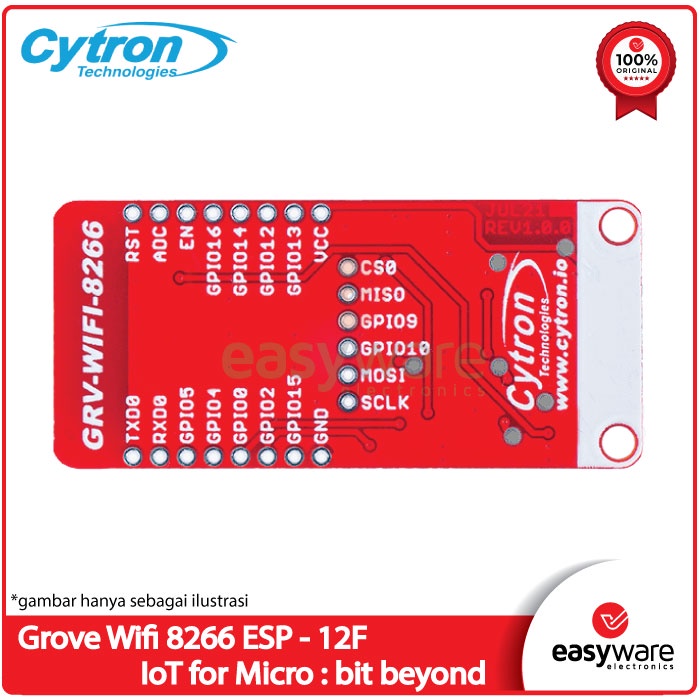

Specifications : - Based on ESP-12F (ESP8266 MCU) WiFi module - Serial UART Interface (Baud rate: 115200 bps) - ESP-AT (AT command) firmware v2.2.0 - Grove 4-pin connector (Rx, Tx, Vcc, Gnd) - Onboard Reset & Boot switch - Built-in power LED - All the pins of the ESP-12F are extended out with clear labels - Supply input voltage: 3 V - 6 V - 32 Mbit built-in SPI Flash - 802.11 b/g/n protocol (2.4 GHz) - MakeCode extension provided - CircuitPython libraries provided
Package: 1 x Grove WiFi 8266 - IoT for Micro:Bit and Beyond
