GPS NAVIGASI SUNHANG DP 32 / DP32

Detail GPS NAVIGASI SUNHANG DP 32 / DP32

GPS DP32, fitur dan spesifikasi sama dengan Furuno DP32

Model DP-32

GPS Characteristics

Receive channel: gps: 12 parallel channels, 12 satellite tracking

Positioning Systems: all-in-view

Accuracy GPS: position :< 15m (95%); speed: 0.1m/s; time: 100ns Synchronized with satellite time

Start Time: average 15 seconds (hot start); average 45seconds (warm start); average 60seconds (cold start)

Restart Time: 0.1second

Dynamics: Altitude: 50,000m Max

Velocity: 500 m/s

Acceleration: 4g Max

Receiver Assembly

Display System: Screen size: 4.5inch, 95mm (w)*63mm (h) Monochrome LCD display 240*128 pixels
Display modes: Plotter Screen, Highway Screen, Steering Screen, Nava Data Screen, User Digital Screen, Speedometer Screen
Projection: Mercator projection
Memory capacity: 1000 waypoints; 50routes of up to 30waypoints each; 1 track of up to 10000 track points.
Alarm: ARV alarm, ANC alarm, XTE alarm, Speed alarm, Clock alarm, Trip alarm, Odometer alarm
Interface: NMEA 0183 2.1version

Voltage: 10-36VDC, 240-120MA
Power Supply: <2w
Operating Environment
Temperature:
Antenna unit:-25to +70;
Display unit:-15to +55
Humidity: 40<93%
Waterproof: Antenna unit: IPX6
Display unit: IPX5
Product size: 195mm (L)* *70mm (W)*105mm (H)
Net weight: 0.45kg
Packing size: 205mm (L)*122mm (W)*178mm (H)
Gross weight: 1.15kg

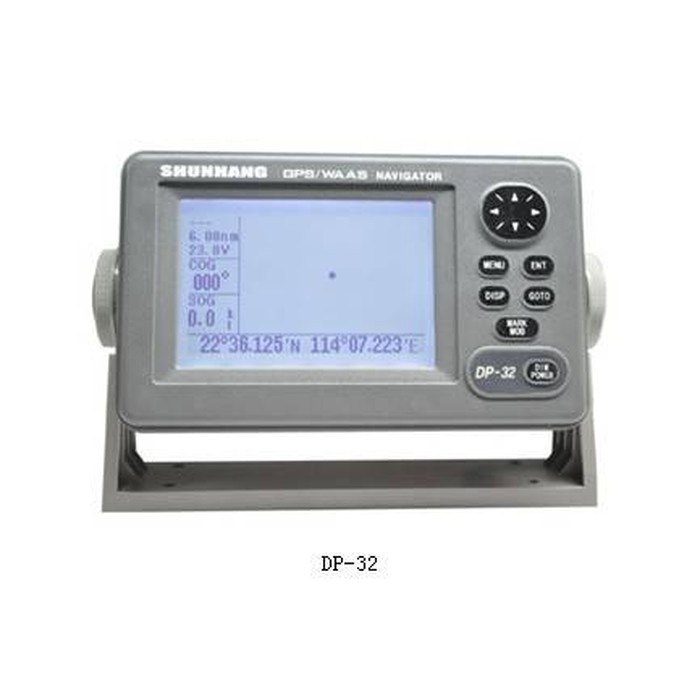

Gambar produk
