GP2Y0A21YK0F Infrared Proximity Sensor Infrared Distance Sensor 10-80cm

Detail GP2Y0A21YK0F Infrared Proximity Sensor Infrared Distance Sensor 10-80cm

Hi #RekanEasyWare ...
EasyWare Part#: EP000680

SPESIFIKASI :
- Measuring Detecting distance is 10 to 80 cm
- The maximum allowable Angle : > 40 °
- The power supply voltage : 4.5 to 5.5 V
- The average power consumption : 35 mA
- Peak power consumption : about 200 mA
- The frequency of updates/cycle : 25 Hz/40 ms
- Analog output noise : < 200 mV
- Less influence on the color of reflective objects, reflectivity
- Line-up of distance output/distance judgement type :
- Distance output type (analog voltage) : GP2Y0A21YK
- Distance judgement type : GP2Y0D21YK
- Judgement distance is 24cm
- Adjustable within the range of 10 to 80cm (Optionally available)
- External control circuit is unnecessary
- Low cost

KELENGKAPAN :

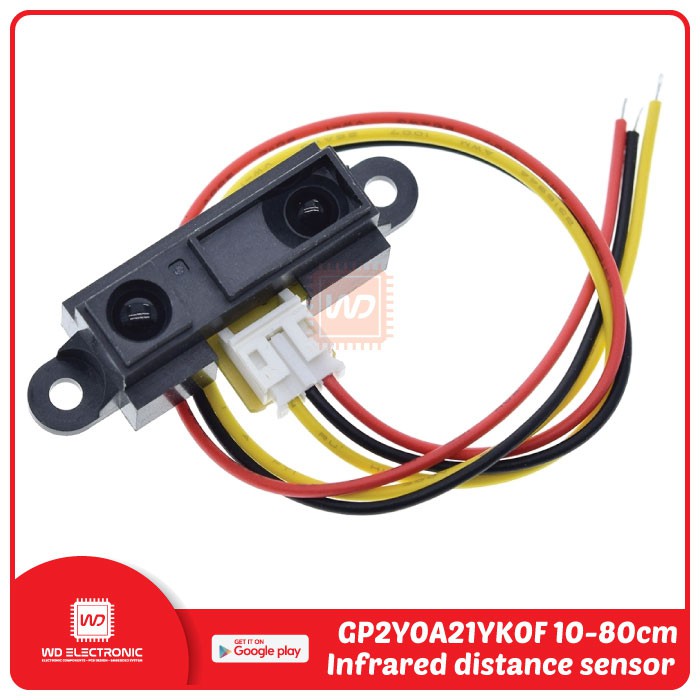

- 1pcs GP2Y0A21YK0F Infrared Distance Sensor + wire

Gambar produk
