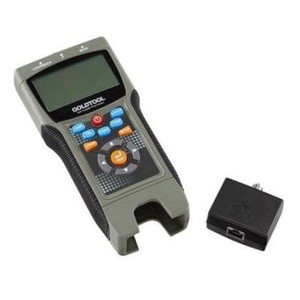

Goldtool TCT-2690PRO Lan Tester Digital

Detail Goldtool TCT-2690PRO Lan Tester Digital

Alat Tester digital ini digunakan untuk menguji konektivitas kabel jaringan LAN/UTP/STP cat5e/6e, Kabel Telpon dan kabel Coaxial.
Dilengkapi dengan layar LCD untuk menampilkan menu dan hasil dari pengujiannya.
Tester LAN ini juga dapat mengukur dan mendeteksi kualitas sambungan, panjang kabel dan letak serat kabel yang bermasalah pada jarak tertentu

Feature :
- Brand : Gold Tool
- Model : TCT-2690 Pro
- The Tester can check UTP and STP Cat 5E,6,6A and Coaxial Cable.
- It can ldentify and locate the distance of a open or Short Circuit.
- With the Multifunction Tester you can determine the Continuity and Wiring of the Cable Pattern.
- Comes with the Low Battery Indicator.
- It uses TDR ( Time Domain Reflectometer ) to measure the length and distance of the cable.
- LCD Backlight Display.
- There are 8 Remote ID available.
- Memory mode for 8 Memory Test Result


Specification :
- Port Test Compability : DSL (6 pin RJ-11), UTP (CAT 5, 5e, 5.5e, 6, 6A), F-Connector
- Wire Test Method : Open/Short Circuit, Jumper Wire, Reverse, Cross-Talk & Split Pairs
- Power Source : 1x 9 Volt Alkaline Battery
- Switch Available : LAN, TEL, COAX, TONE, LENGTH, Memory, Setup, TEST, Power
- Other Feature : Max Cable Length : 1 ~ 350 meters, Min. 1m (Split Pairs Test)
- Dimension (WHD) unit : 90(W) x 40(H) x 205(L) mm
- Weight unit : 310 gram (w/o 9V Battery)

Package of Contents :
1 x LAN TESTER DIGITAL GOLDTOOL TCT-2690 PRO
1 x Exclusive Pouch ( Tas )
2 x F connector to BNC Male (SDI) Adapter,
2 x RJ-45 to socket RJ-11 Plastic Adapter
1 x Manual Book
1 x 9V Battery
