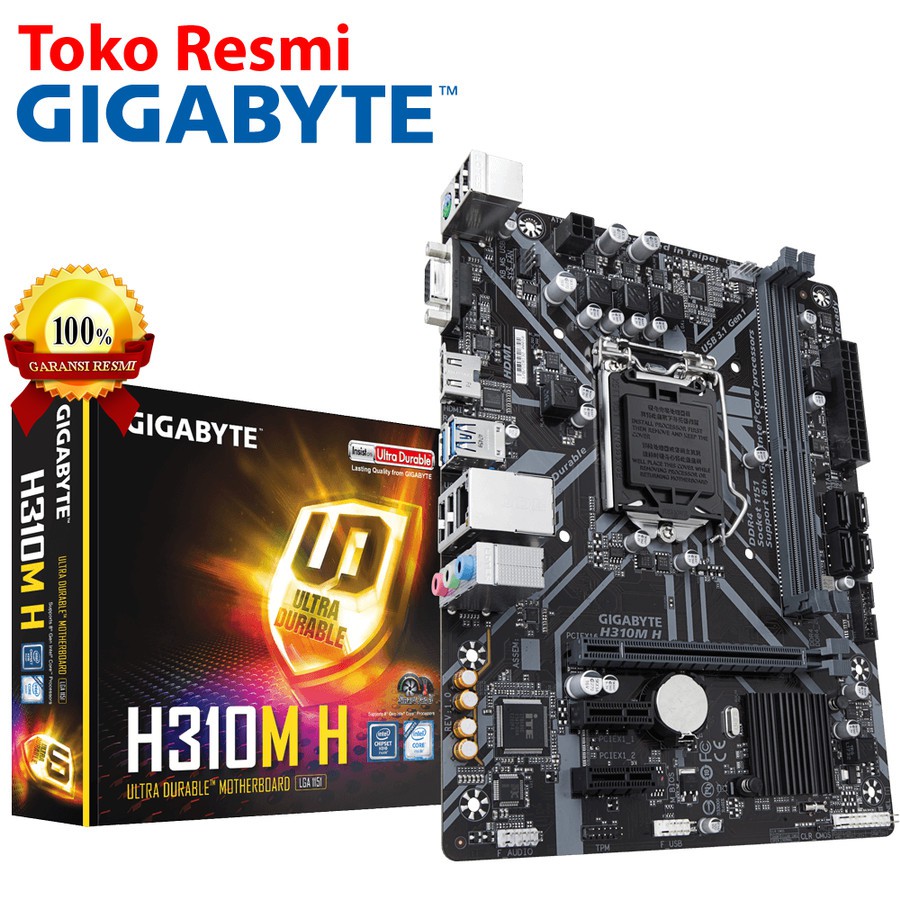

GIGABYTE MOTHERBOARD H310M H

Detail GIGABYTE MOTHERBOARD H310M H

Features

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

Specification

CPU

Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package

L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

Intel H310 Express Chipset

Memory

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Storage Interface

Chipset:

4 x SATA 6Gb/s connectors

USB

Chipset:

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Operating System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 22.6cm x 17.4cm

Gambar produk
