Gigabyte Motherboard GA-H81M-DS2 / H81M DS2, LGA1150, DDR3

Detail Gigabyte Motherboard GA-H81M-DS2 / H81M DS2, LGA1150, DDR3

Bisa langsung pesan order di shopee Ya Gan
kami menjual barang original bergaransi resmi
Harga dan stok bisa berubah setiap saat tanpa pemberitahuan sebelumnya
Silahkan chat dahulu untuk cek Stok Barang

setiap Konsumen yang membeli produk ditoko kami
apabila ada garansi, klaim garansi bisa dibantu lewat toko juga
apabila daerah agan tidak ada service center/distributornya

yang mau nambah bubble wrap silahkan klik link ini
https://shopee.co.id/bubble-wrap-i.225428636.5255998882?position=0

Prosesor
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
L3 cache varies with CPU
Chipset
Intel® H81 Express Chipset
Memori
2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Kartu Grafis Terintegrasi
Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Maximum shared memory of 1 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 2.0 standard.)
Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)
USB
Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Konektor I/O Internal
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper

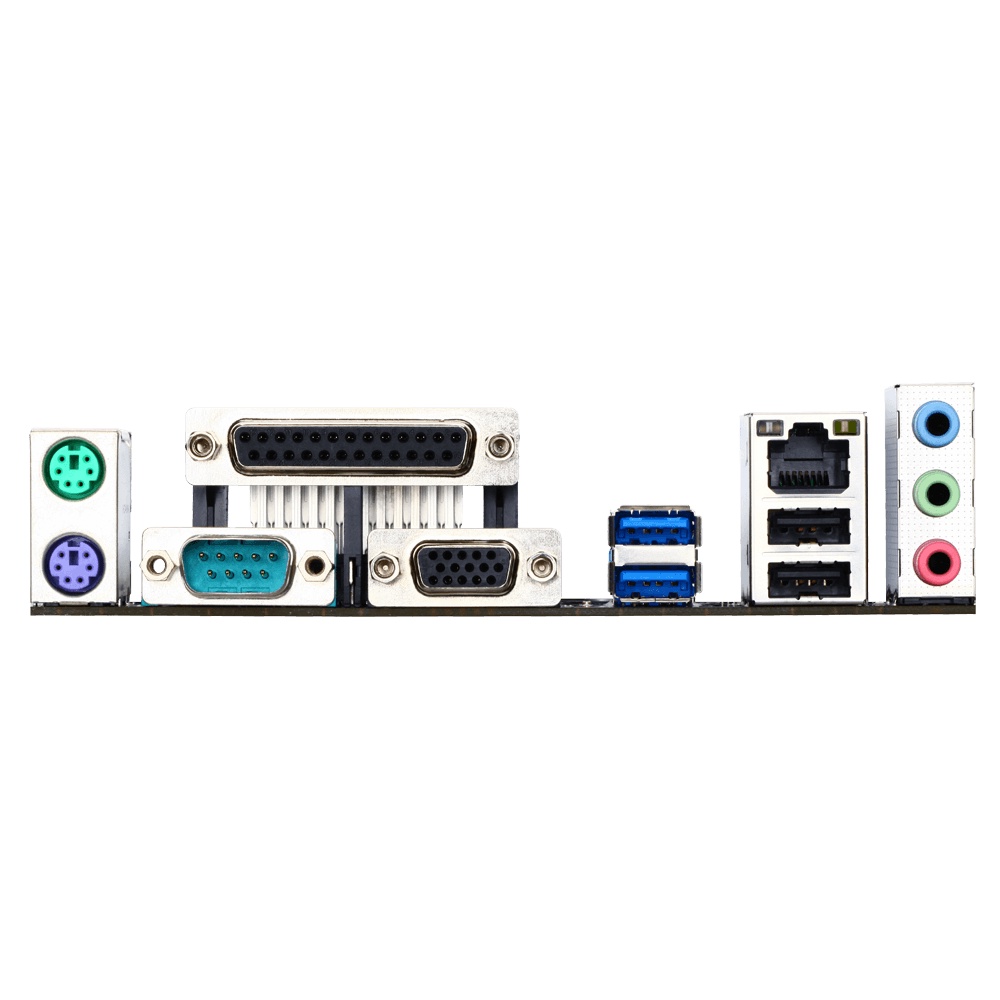

Konektor Panel Belakang
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x parallel port
1 x serial port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)
Pengontrol I/O
iTE® I/O Controller Chip
Pengawasan Hardware
System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.

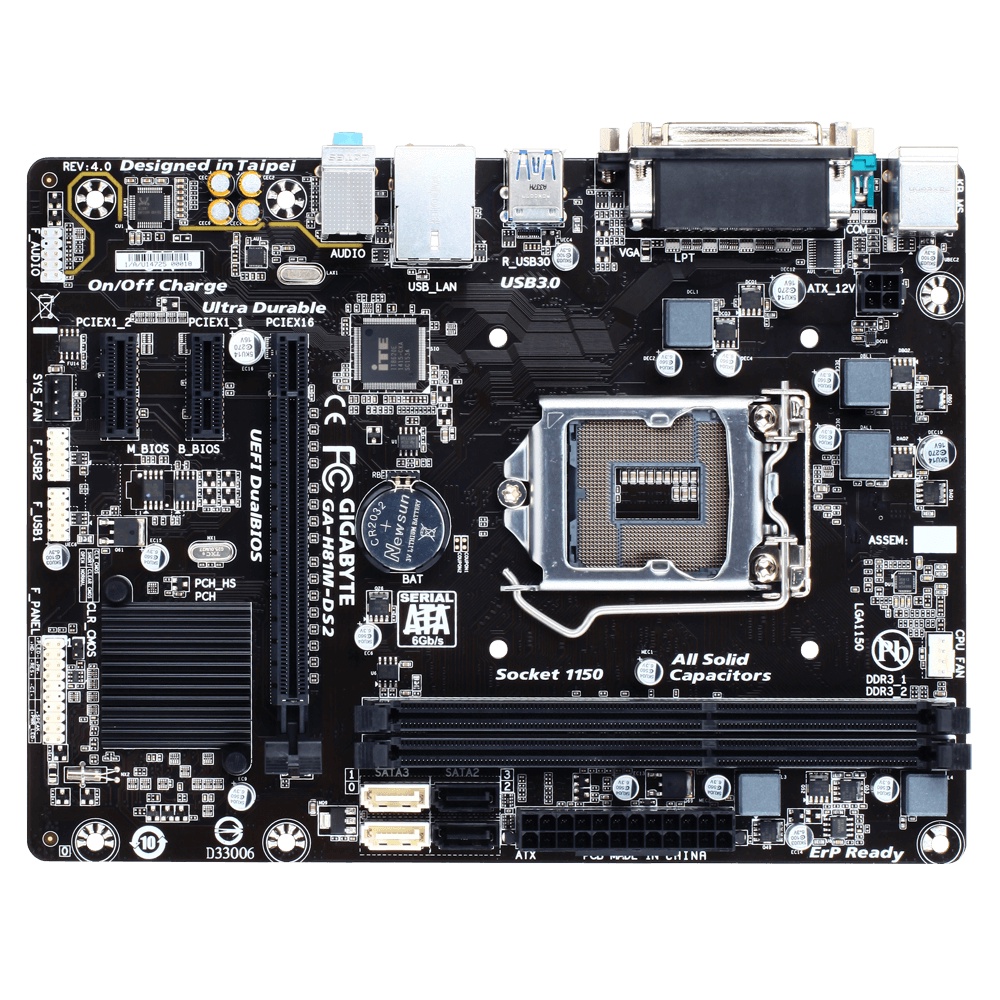

Gambar produk
