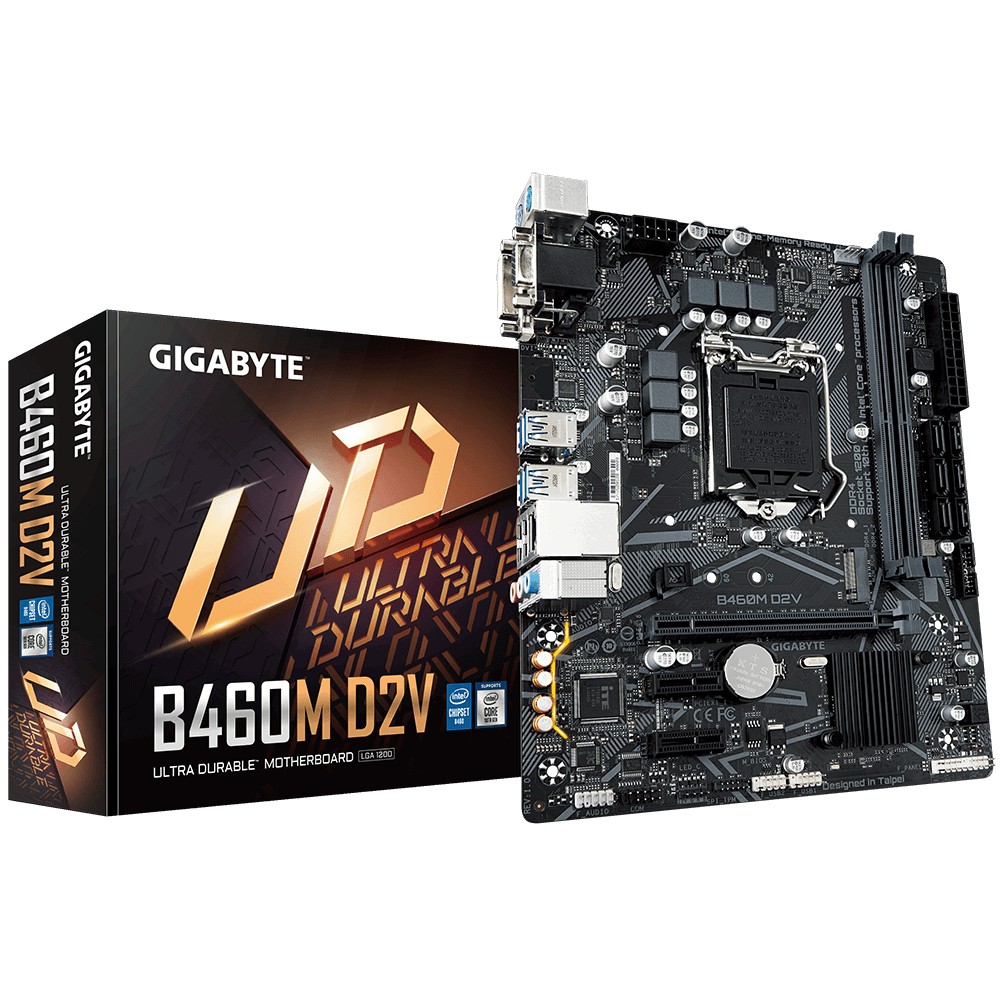

GIGABYTE MOTHERBOARD B460M D2V

Detail GIGABYTE MOTHERBOARD B460M D2V

Intel® B460 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5
• Supports 10th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• Hybrid Digital PWM Design
• High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
• Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
• GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Anti-Sulfur Resistors Design
• Ultra Durable™ 15KV Surge LAN Protection
• Intel® Optane™ Memory Ready

SPESIFIKASI
• CPU
1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
• Chipset
1. Intel® B460 Express Chipset
• Memory
1. Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz
2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz
3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
4. Dual channel memory architecture
5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
7. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
• Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 512 MB
• Audio
1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
1. Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
(The PCI Express slots conform to PCI Express 3.0 standard.)
• Storage Interface
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
• USB
Chipset:

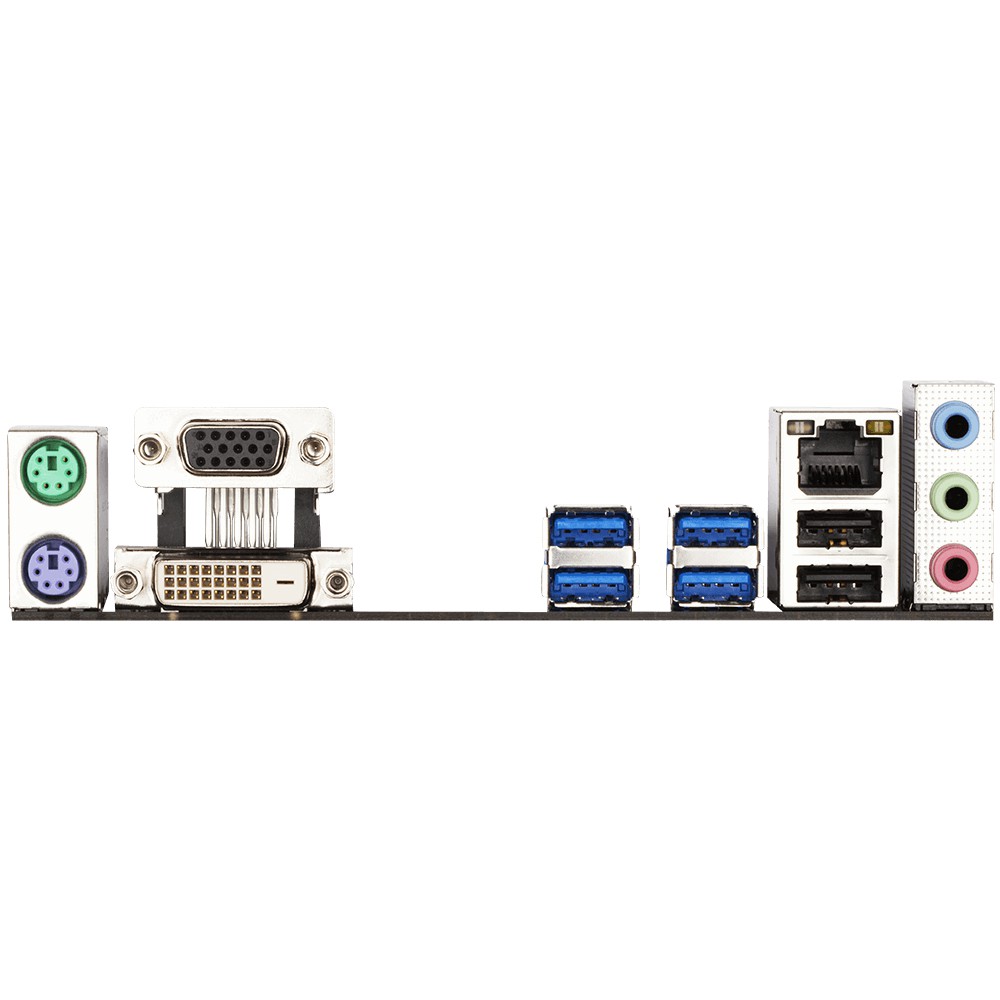

1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors
1. 1 x 24-
