Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)

Merek: Gigabyte Technology | Lihat selengkapnya produk Komputer & Aksesoris dari Gigabyte Technology
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Gatecom TechnologyLihat semua produk Komputer & Aksesoris oleh Gatecom Technology
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)

Specs:
CPU
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
(Please refer "CPU Support List" for more information.)

Chipset
AMD B450

Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated Graphics Processor:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note)
* Support for HDMI 2.0 version and HDCP 2.2.(Note)

xpansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)

USB
Chipset:
2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Operating System
Support for Windows 10 64-bit
Support for Windows 7 64-bit
* To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm

Garansi Resmi 3 Tahun Gigabyte

Gambar produk

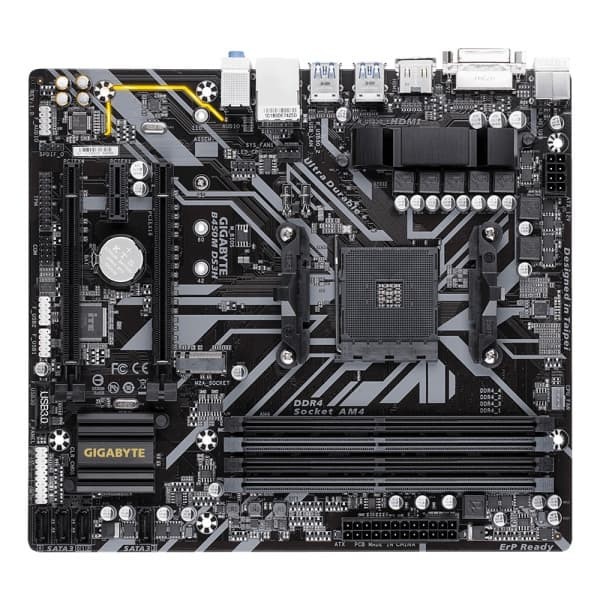

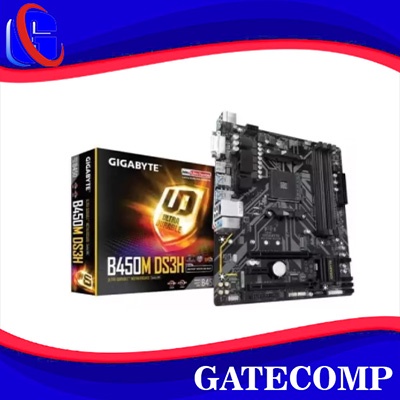

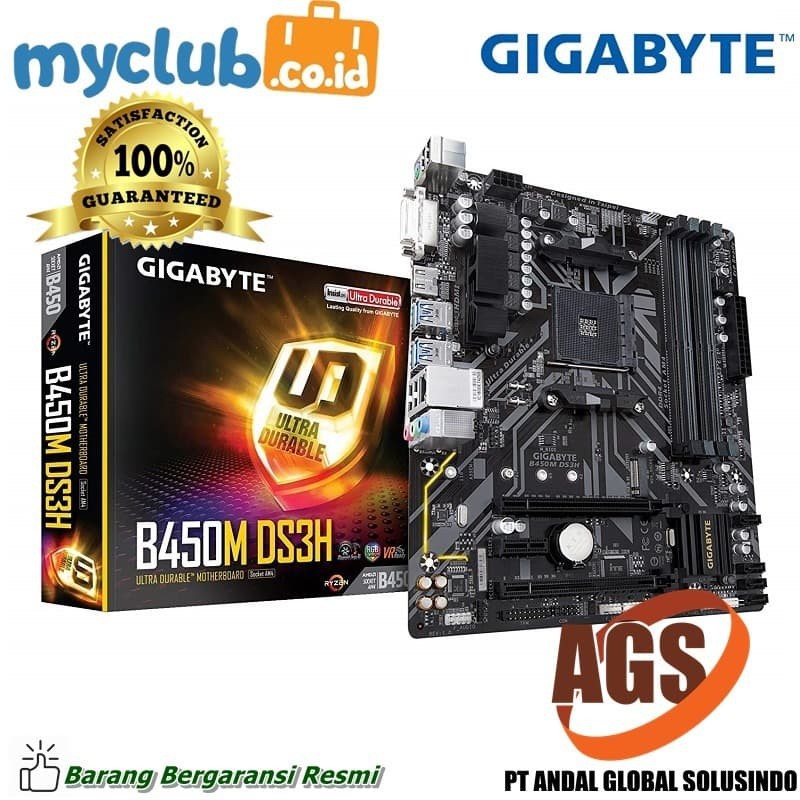

Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Gigabyte Motherboard AMD GA-B450M-DS3H (Micro ATX, Socket AM4, 4xDDR4)
Lihat lebih banyak informasi produk
