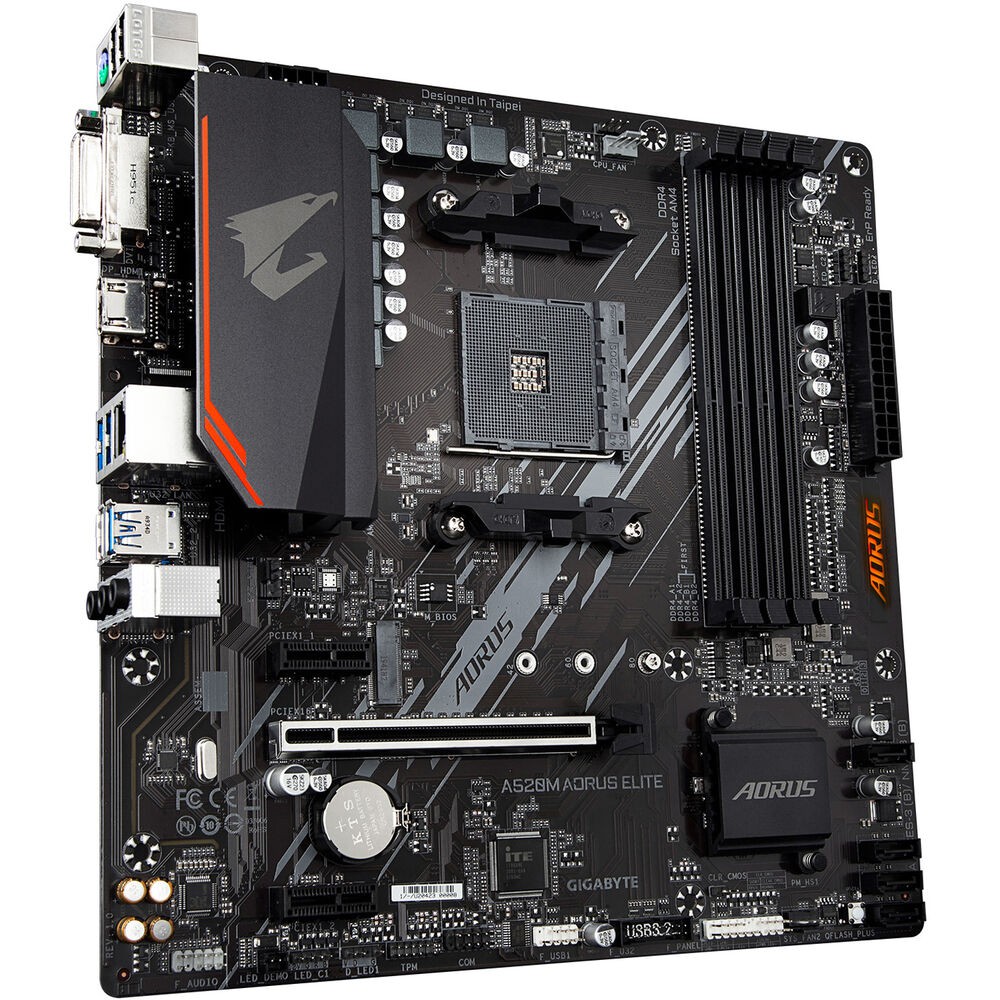

Gigabyte Motherboard AMD A520M Aorus Elite Socket AM4 Ryzen

Detail Gigabyte Motherboard AMD A520M Aorus Elite Socket AM4 Ryzen

Deskripsi Gigabyte Motherboard AMD A520M Aorus Elite Socket AM4 Ryzen:
Spesifikasi :
CPU AMD Socket AM4 : support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset : AMD A520
Memory :
- 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- 3rd Gen AMD Ryzen™ Processors:
- Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
- Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics :
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio :
- Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN : Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots :
- CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)
Storage Interface
- CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
- Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Operating System : Support for Windows 10 64-bit
Form Factor : Micro ATX Form Factor; 24.4cm x 24.4cm


Garansi 3 Tahun

Gambar produk
