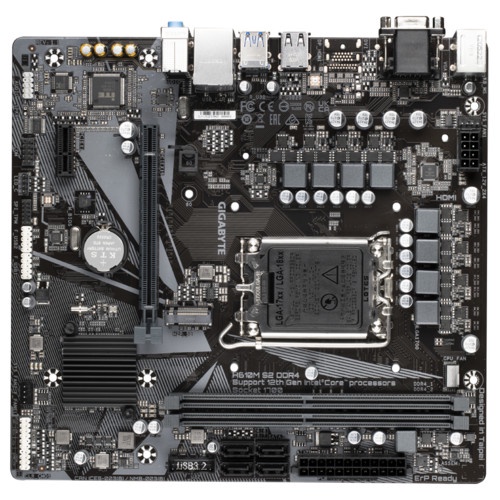

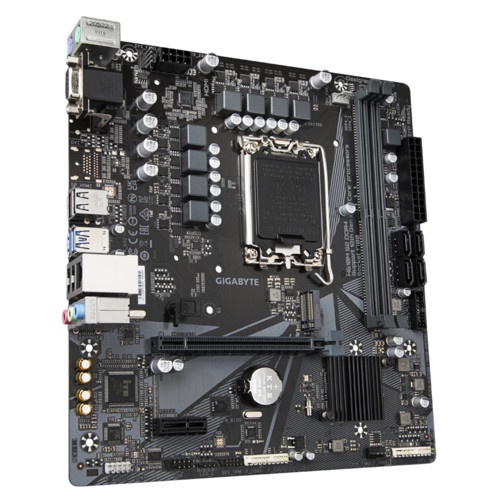

Gigabyte H610M S2 Motherboard DDR4 LGA1700 H610 DDR4 USB 3.2 SATA3

Detail Gigabyte H610M S2 Motherboard DDR4 LGA1700 H610 DDR4 USB 3.2 SATA3

Gigabyte H610M S2 DDR4 LGA1700 H610 DDR4 USB 3.2 SATA3

CPU :
• LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
• L3 cache varies with CPU

Chipset :
• Intel® H610 Express Chipset

Memory :
• Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots :
• 1 x PCI Express x16 slot, running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
• 1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
Storage Interface

Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
USB
Chipset:
• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headers

BIOS :
• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System :
• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor :
• Micro ATX Form Factor; 23.0cm x 21.5cm

Garansi Resmi 3 Tahun
