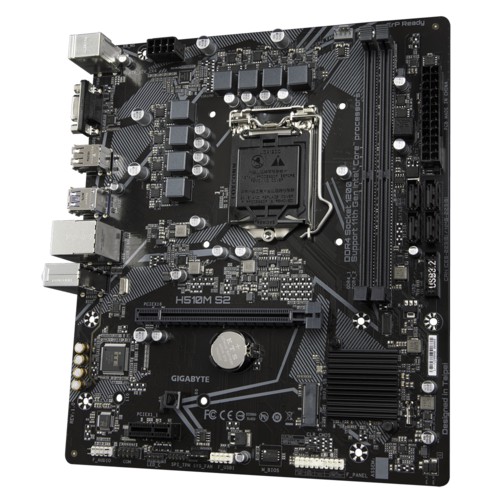

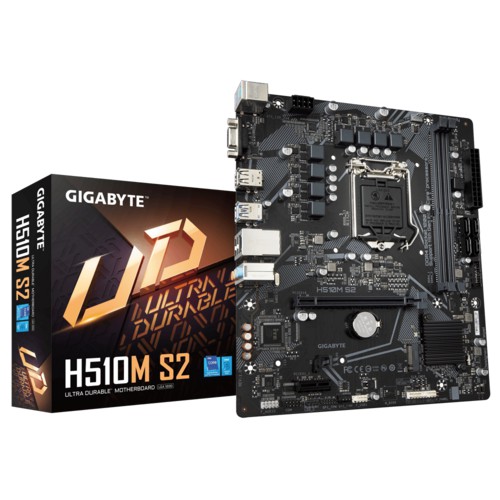

Gigabyte H510M S2 Motherboard Intel LGA1200 H510 DDR4 USB 3.2 SATA3

Merek: Gigabyte Technology | Lihat selengkapnya produk Komputer & Aksesoris dari Gigabyte Technology
Komputer & Aksesoris > Komponen Desktop & Laptop > Motherboard > Gigabyte H510M S2 Motherboard Intel LGA1200 H510 DDR4 USB 3.2 SATA3
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Gigabyte H510M S2 Motherboard Intel LGA1200 H510 DDR4 USB 3.2 SATA3

CPU : Support for 10th Generation in the LGA1200 package
Intel® Core™ i9 processors, Intel® Core™ i7 processors, Intel® Core™ i5 processors, Intel® Core™ i3 processors, Intel® Pentium® processors, Intel® Celeron® processors
Support fot 11th Generation Intel Core i9 , i7 dan i5 processor
Chipset : Intel®H510 Express Chipset
Memory :
- 11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2133 MHz memory modules
- 10th Generation Intel® Core™ i9/i5 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules
- 10th Generation Intel® Core™ i5/i3 processors: Support for DDR4 2666/2400/2133 MHz memory modules
- 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics :
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x DisplayPort
Audio :
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
LAN : Intel® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots :
- 1 x PCI Express x16 slot
- 2 x PCI Express x1 slots
Storage Interface :
- 1 x M.2 connector
- 4 x SATA 6Gb/s connectors
USB :
- 4 x USB 3.2 Gen 1 ports
- 8 x USB 2.0/1.1 ports
BIOS :
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System : Support for Windows 10 64-bit
Form Factor : Micro ATX Form Factor; 24.4cm x 21.0cm

Garansi 3 Tahun
