GIGABYTE GA- H61M-DS2(SOCKET1155)

Detail GIGABYTE GA- H61M-DS2(SOCKET1155)

* Spesifikasi Lengkapnya Ka :

* Prosesor
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

* Chipset
1. Intel® H61 Express Chipset

* Memori
1. 2x1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size
displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU.

* Kartu Grafis Terintegrasi
1. 1 x D-Sub port

* Audio
1. Realtek® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

* LAN
1. Realtek® GbE LAN chip (10/100/1000 Mbit)

* Slot Tambahan
1. 1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility.
2. 2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

* Antarmuka Penyimpanan (Chipset)
1. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

* USB (Chipset)
1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

* Konektor I/O Internal
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 3Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x speaker header
9. 2 x USB 2.0/1.1 headers
10.1 x chassis intrusion header
11.1 x Clear CMOS jumper

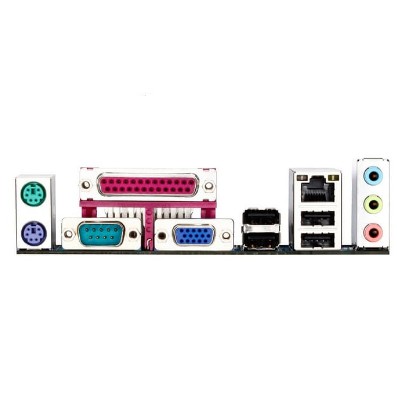

* Konektor Panel Belakang
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x parallel port
5. 1 x serial port
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Microphone)

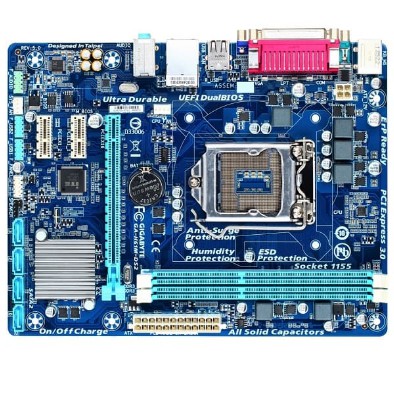

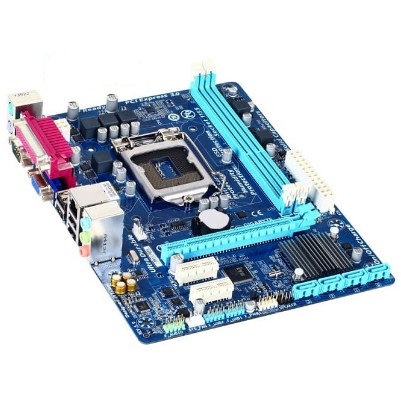

Gambar produk
