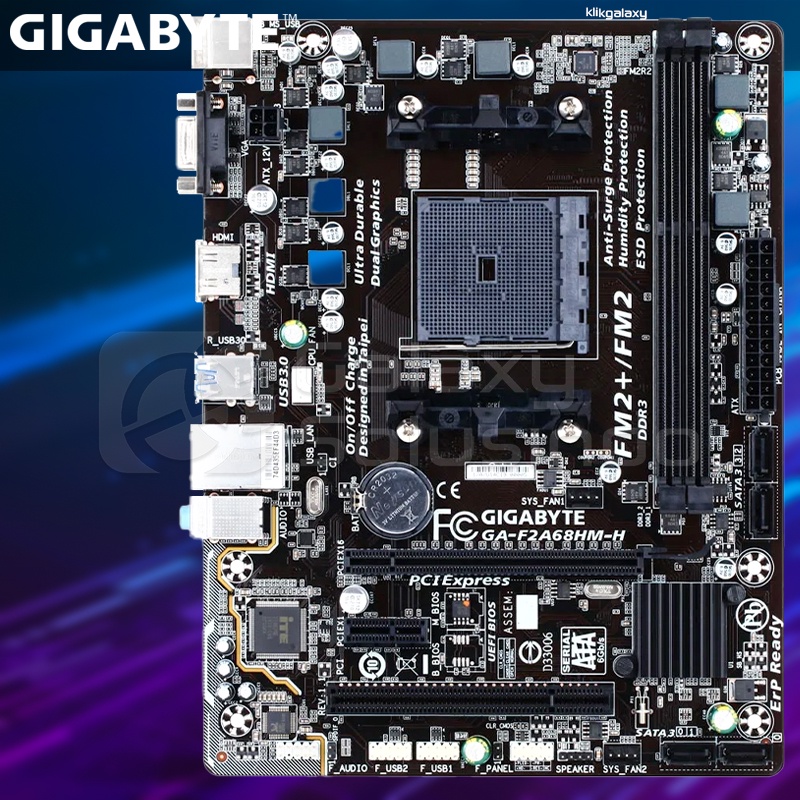

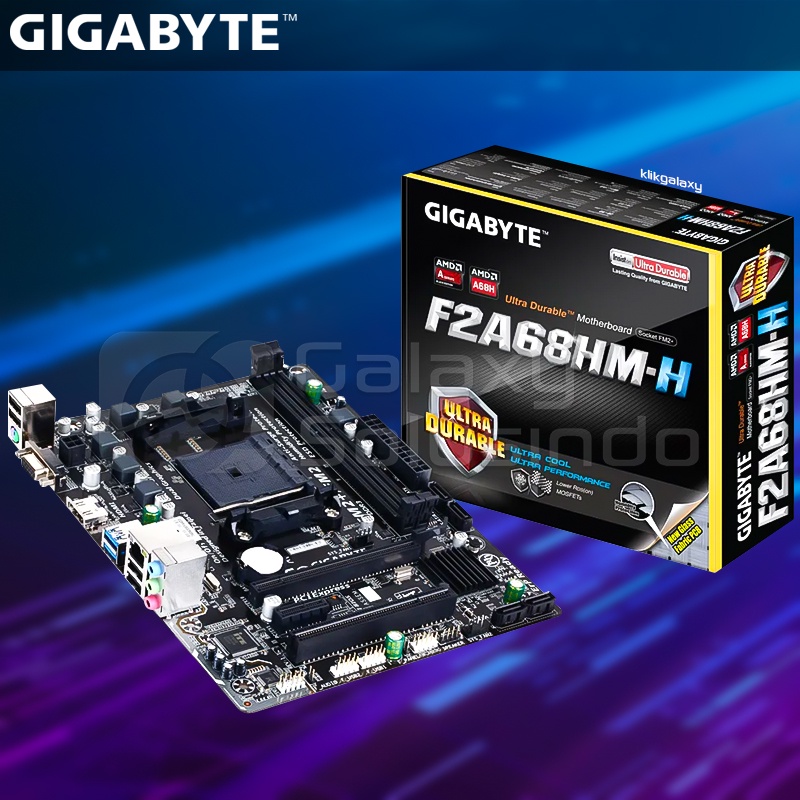

Gigabyte GA-F2A68HM-H AMD FM2+ A68 DDR3 Motherboard

Detail Gigabyte GA-F2A68HM-H AMD FM2+ A68 DDR3 Motherboard

GA-F2A68HM-H

AMD A68H chipset

Socket FM2+ supports AMD FM2+/FM2 A-series APU
GIGABYTE Ultra Durable™ Technology
Dedicated audio hardware zone with Audio Noise Guard design
HDMI 1.4, D-sub ports for multi-display support
Native USB 3.0 and SATA3 ports with RAID support
GIGABYTE UEFI BIOS
GIGABYTE On/Off Charge™ for USB devices
Solid capacitors for APU VRM design

SPECIFICATION :

APU
FM2+ Socket:
AMD A series processors
AMD Athlon™ series processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD A68H
Memori
2 x DDR3 DIMM sockets supporting up to 64 GB of system memory
* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules
Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Kartu Grafis Terintegrasi
Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x HDMI port, supporting a maximum resolution of 4096x2160
* The resolution of 4096x2160 can be supported when using an FM2+ APU; the maximum resolution supported is 1920x1200 when using an FM2 APU.
* Support for HDMI 1.4a version.
Maximum shared memory of 2 GB
Audio
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Slot Tambahan
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
* To support PCI Express 3.0, you must install an FM2+ APU.
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
1 x PCI slot
Teknologi Multi Grafis
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
Support for AMD Eyefinity technology
Antarmuka Penyimpanan
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 10, and JBOD
USB
Chipset:

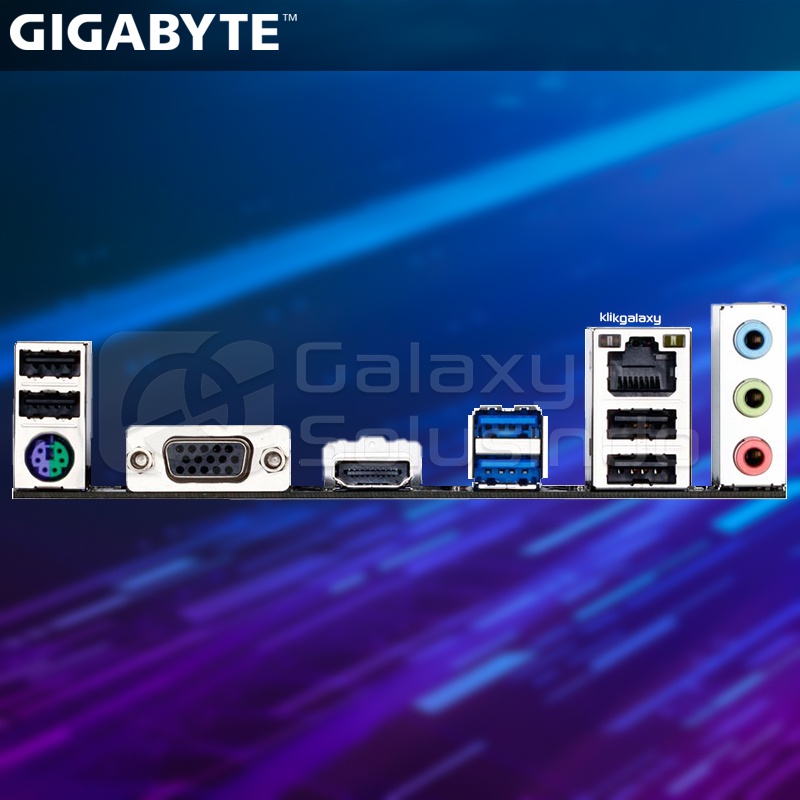

2 x USB 3.0/2.0 ports on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Konektor I/O Inter
