Detail GIGABYTE B660M DS3H DDR4 (LGA 1700, B660M, DDR4, USB3.2, SATA3)

Intel® B660 Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, Rear USB 3.2 Gen 2 Type-C®, RGB FUSION 2.0, Q-Flash Plus​​​

Supports 12th Gen Intel® Core™ Series Processors​​
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
6+2+1 Phases Hybrid Digital VRM with MOS Heatsink​
Fast 2.5 GbE LAN with Bandwidth Management​​
Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
Rear SuperSpeed USB 3.2 Gen 2 TYPE-C® for Fast and Versatile Connections ​​
High Quality Audio Capacitors and Audio Noise Guard​
RGB FUSION 2.0 supports Addressable LED & RGB LED Strips​​
Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP​​
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card​​

CPU
LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.

Chipset
Intel® B660 Express Chipset

Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors

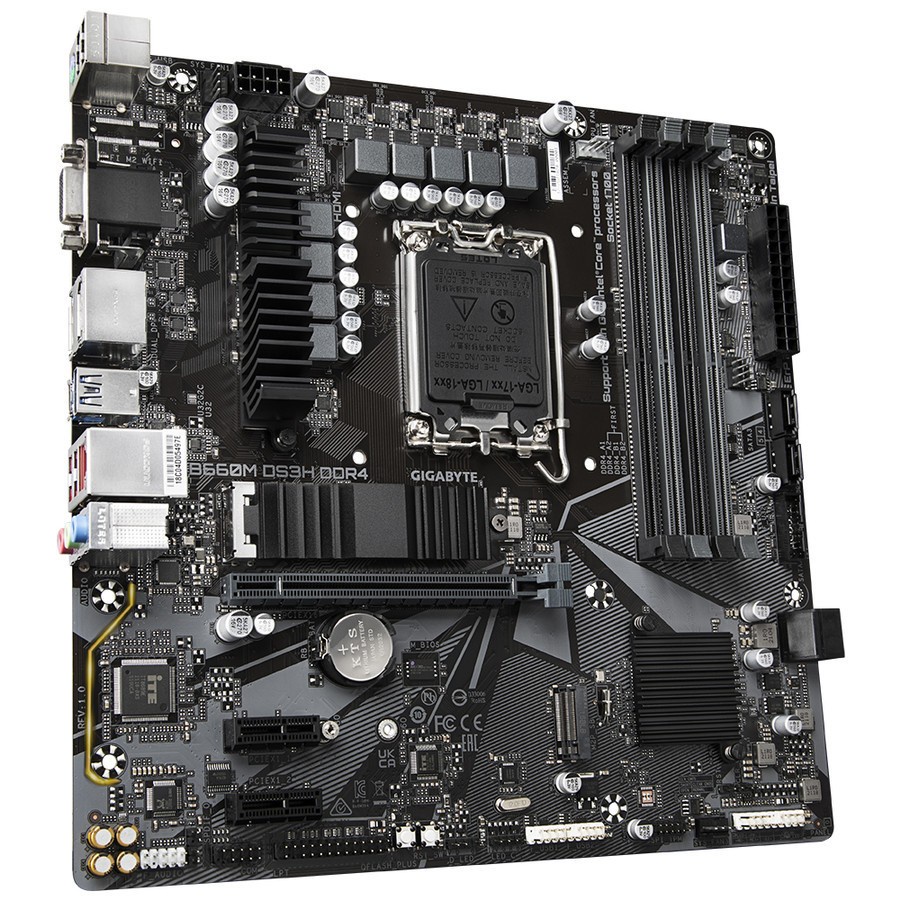

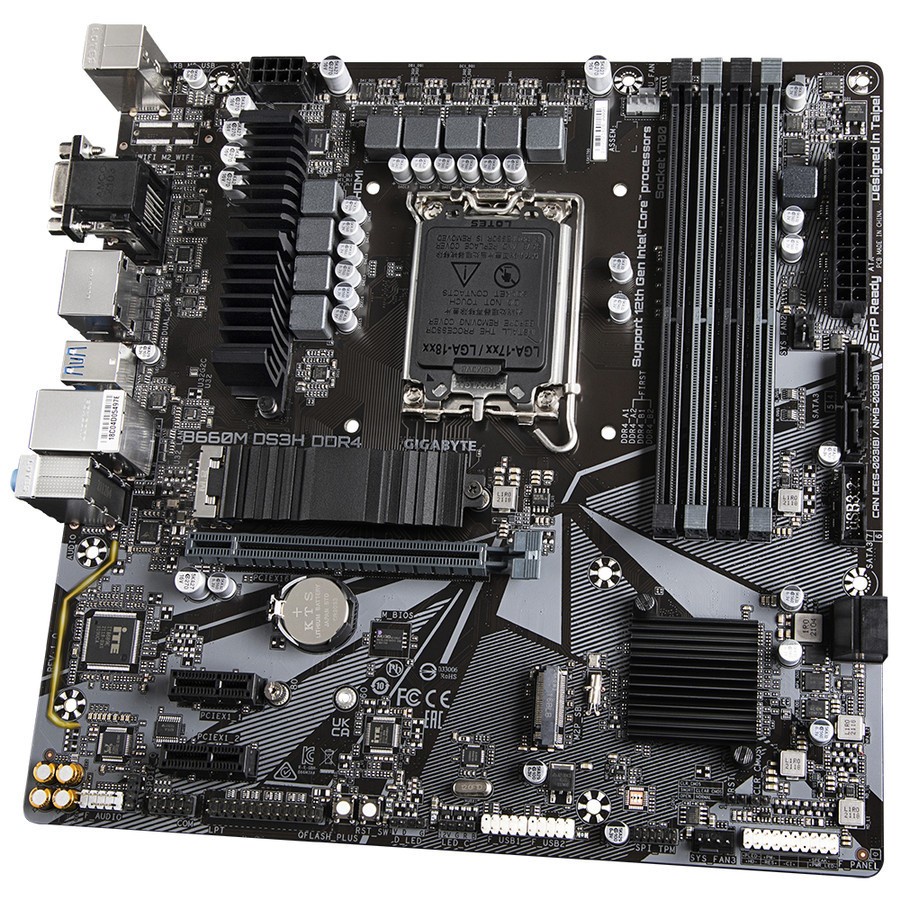

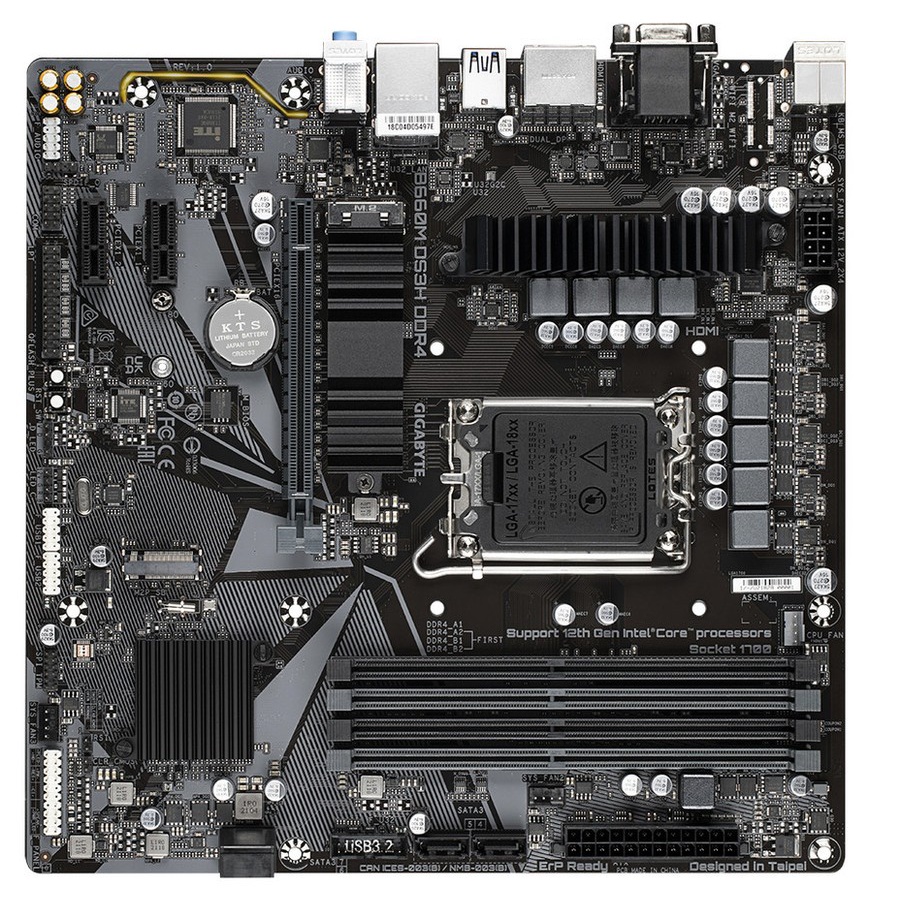

Gambar produk
