GIGABYTE B660M AORUS PRO DDR4 Intel B660 LGA 1700 DDR4 Micro ATX

Detail GIGABYTE B660M AORUS PRO DDR4 Intel B660 LGA 1700 DDR4 Micro ATX

Gigabyte B660M Aorus Pro ialah salah satu motherboard yang memiliki desain tangguh, kokoh, dan performanya sangat menakjubkan. Motherboard ini mendukung prosesor Intel Core generasi ke 12 dengan Dual Channel Non-ECC Unbuffered DDR4. Motherboard ini juga dibekali High-End Audio Capacitor​ yang menjadikannya semakin unggul dan bisa menjadi pilihan motherboard saat ini.

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel B660

Memory
- 4 x DIMM, Max. 128GB, DDR4
3200/3000/2933/2666/2400/2133 MHz memory modules

Graphics
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Storage
- CPU:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
* 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
* 4 x SATA 6Gb/s connectors

Ethernet
- 1x Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Form Factor
- microATX
- 24.4cm x 24.4cm

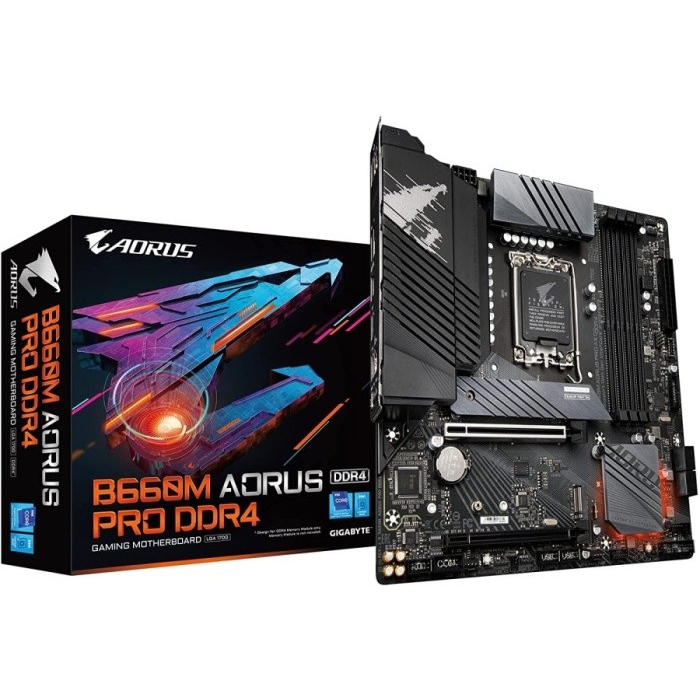

Gambar produk
