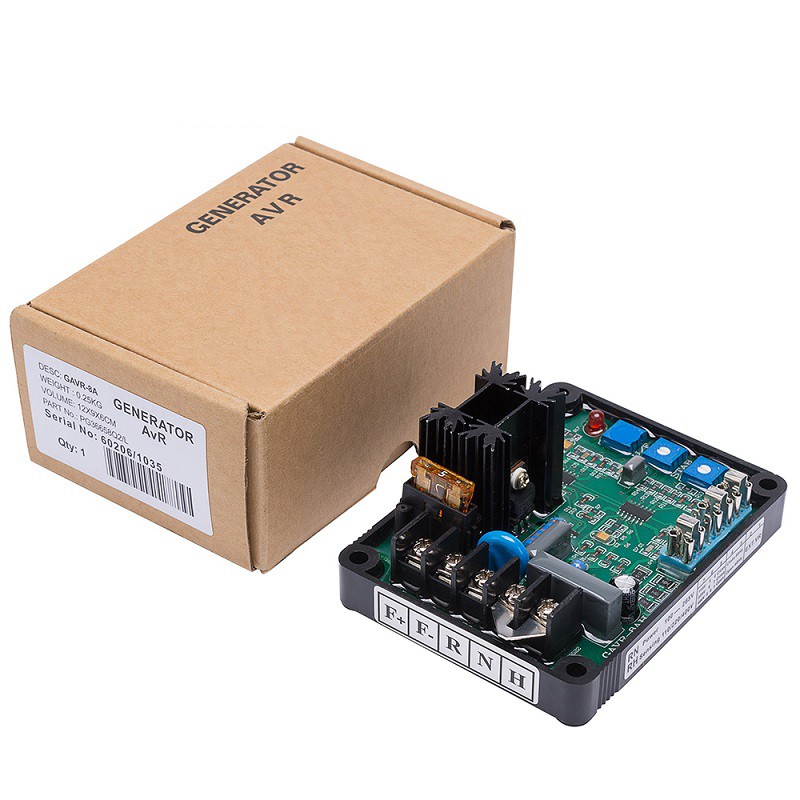

GAVR AVR Modul Universal Genset CF Voltage Stabilizer 8A 12A 15A 20A Generator Penstabil Tegangan Listrik

Detail GAVR AVR Modul Universal Genset CF Voltage Stabilizer 8A 12A 15A 20A Generator Penstabil Tegangan Listrik

Video perkenalan produk GAVR AVR Modul Universal Genset CF Voltage Stabilizer 8A 12A 15A 20A Generator Penstabil Tegangan Listrik. Sumber: Shopee.

Kita ada 4 Variasi: 8A,12A,15A,20A.

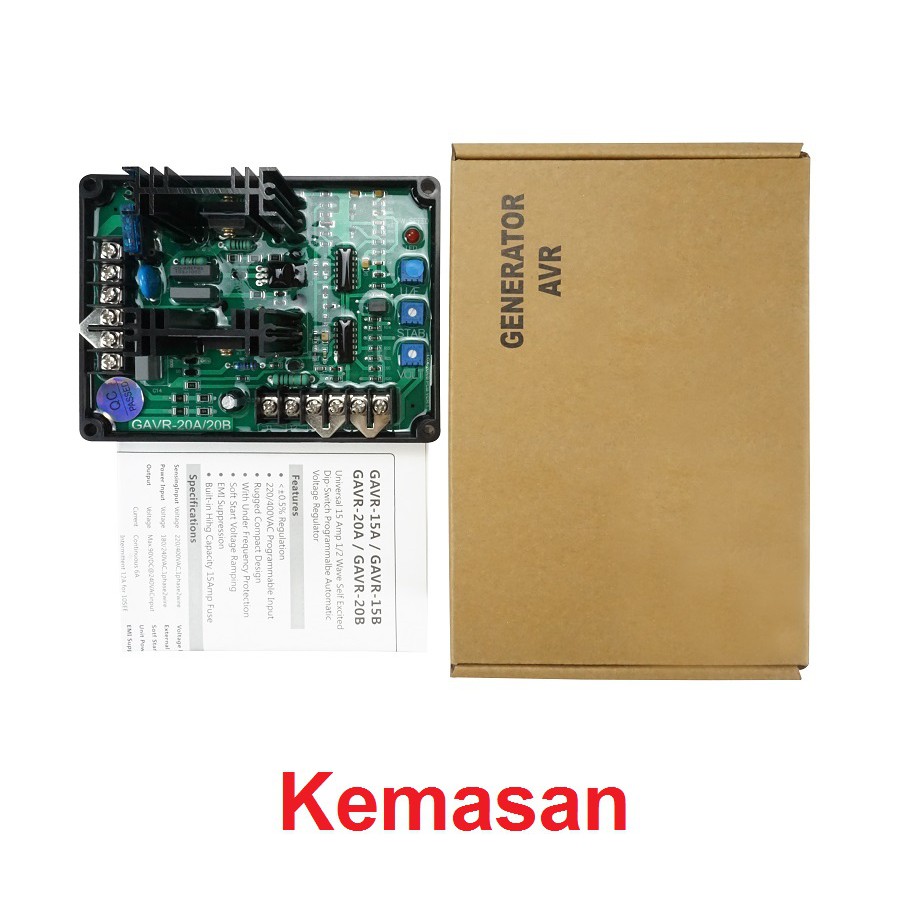

Package Includes:
1 * Automatic Voltage Regulator Module
1 pcs * English user manual
***************************8A****************
Features:
<±1% Regulation
110/220/440 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Built-in Hihg Capacity 8A mp Fuse
Parameter:
SENSING INPUT
Voltage : 90-480V ac max
Frequency : 50-60 Hz nominal
POWER INPUT
Voltage : 95-264V ac max
Frequency : 50-60 Hz nominal
OUTPUT
Voltage : max 90V dc at 207V ac input
Current : continuous 2A,Intermittent 5A for 10 secs.
Resistance : 15 ohms minimum
REGULATION: +/- 1%
***************************12A****************
Product Features:
< ±1% regulation
Rugged compact design
With under frequency protection
Soft start voltage ramping
EMI suppression
Built-in high capacity 12 Amp fuse
Specifications:
SensingInput Voltage: 220/400VAC,1phase 2wire
Power Input Voltage: 180~240VAC, 1phase 2wire
Output Voltage: Max. 90VDC@240VAC input
Current: Continuous 6A , Intermittent 10A for 10SEE
Resistance: Min. 10ω Max 100ω
Voltage Build-up: esidualvolts at AVR teminal>5VAC
External Volts Adjustment: +/-7%with 1Kω 1watt trimmer
Unit Power Dissipation: Max. 8Watt
***************************15A****************
Features
<±5% Regulation
220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Raping
EMI Suppression
Built-in high Capacity 15Amp Fuse
Specification
Sensing Input Voltage: 220/400 VAC,1 phase 2wire
Power Input Voltage: 180~260VAC 1phase 2 wire
Output Voltage: Max.90VDC @240VACCinput
Current: Continuous 6A
Intermittent 12A for 10SEE
Resistance: Min.10Ω Max.100Ω
Volts Regulation: <±1%(with 4% engine governing)
Voltage Build-up: Residual volt at AVR terminal >5VAC
External Volts Adjustment: ±7% with 1KΩ 1watt trimmer
Soft Start Ramp Time: 3 sec.
Unit Power Dispensation: Max.8 Watt
EMI Suppression: Internal Electromagnetic Interference Filtering
******************20A***********
GAVR-20A is Universal 20 Amp 1/2 Wave Self Excited Dip-switch Programmable be Valtage alternator generator , which is suitable for brushless generator.
*Sensing Input Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage Max.90VDC@240VAC input
Current Continuous 6A
Intermittent 15A for 10SEE
Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal >5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
#AVR #AVRUniversal #AVRGlobal #AVRUmum #AutomaticVoltageRegulator #AVR12A #GAVR12A #CF12A #AVRGenerator #AVRAlternator #AutomaticVoltageRegulatorUniversal #Generator #Alternator #SparepartGenset #AVRGenset #SparepartGenerator #SparepartAlternator

Gambar produk
