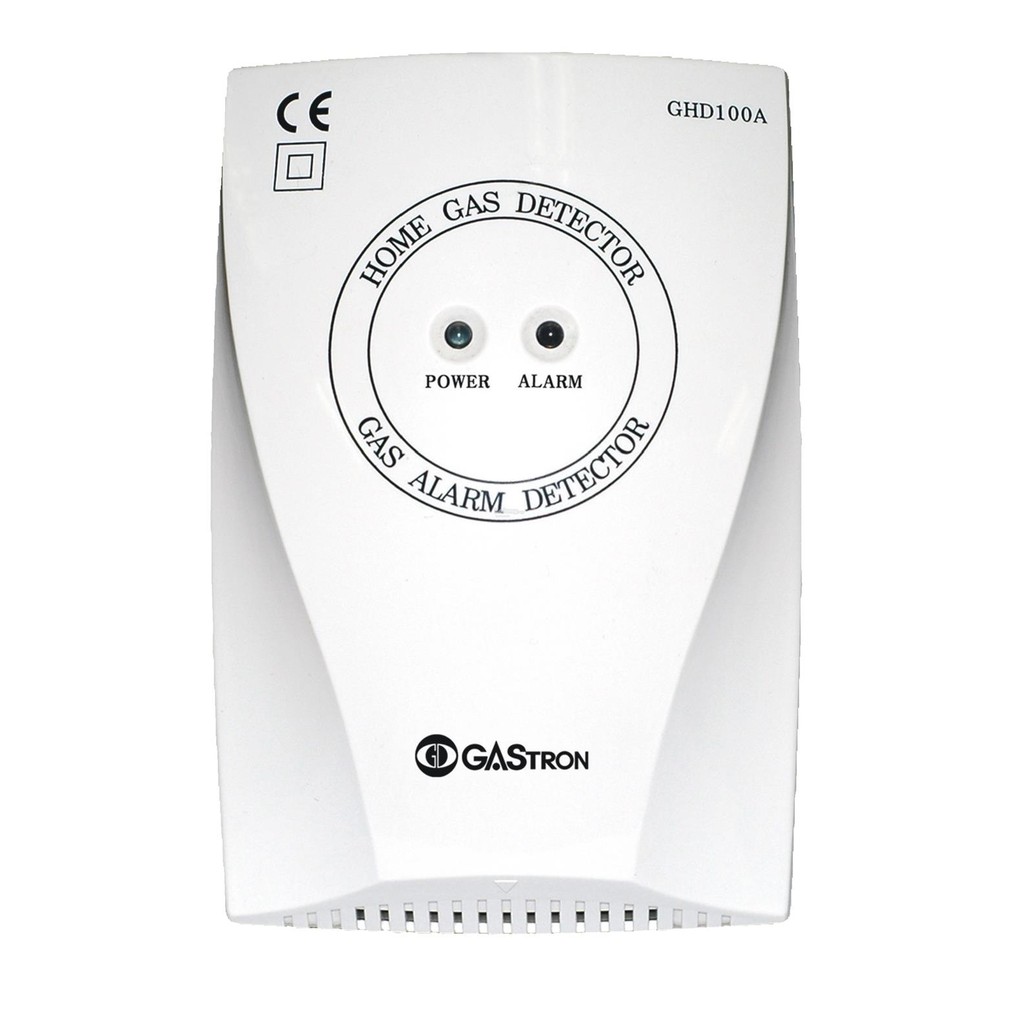

Gastron Wireless Detektor Gas bocor LPG Alarm Detector Korea

Detail Gastron Wireless Detektor Gas bocor LPG Alarm Detector Korea

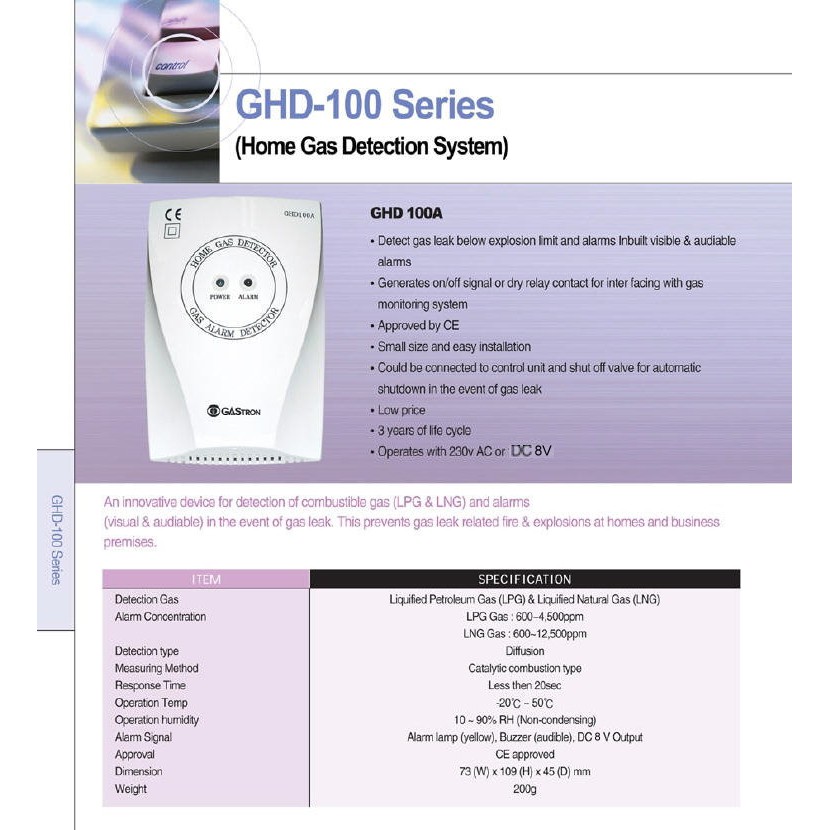

Gas/Alcohol Alarm Detector Gastron Korea

GHD 100A Details - Detect gas/alcohol leak below explosion limit and alarms - Inbuilt visible & audible alarms - Generates on/off signal or dry relay contact for interfacing with gas monitoring systems - Approved by CE - Compact size and easy installation - Connectible to a control unit and shut off valve for automatic shutdown in the event of gas leak
Features
European CE Standard approved.
Visible & audible alarm on gas leakage.
Fast response time.
Robust against surrounding temperature shifts & other gases.
Small size & easy installation.

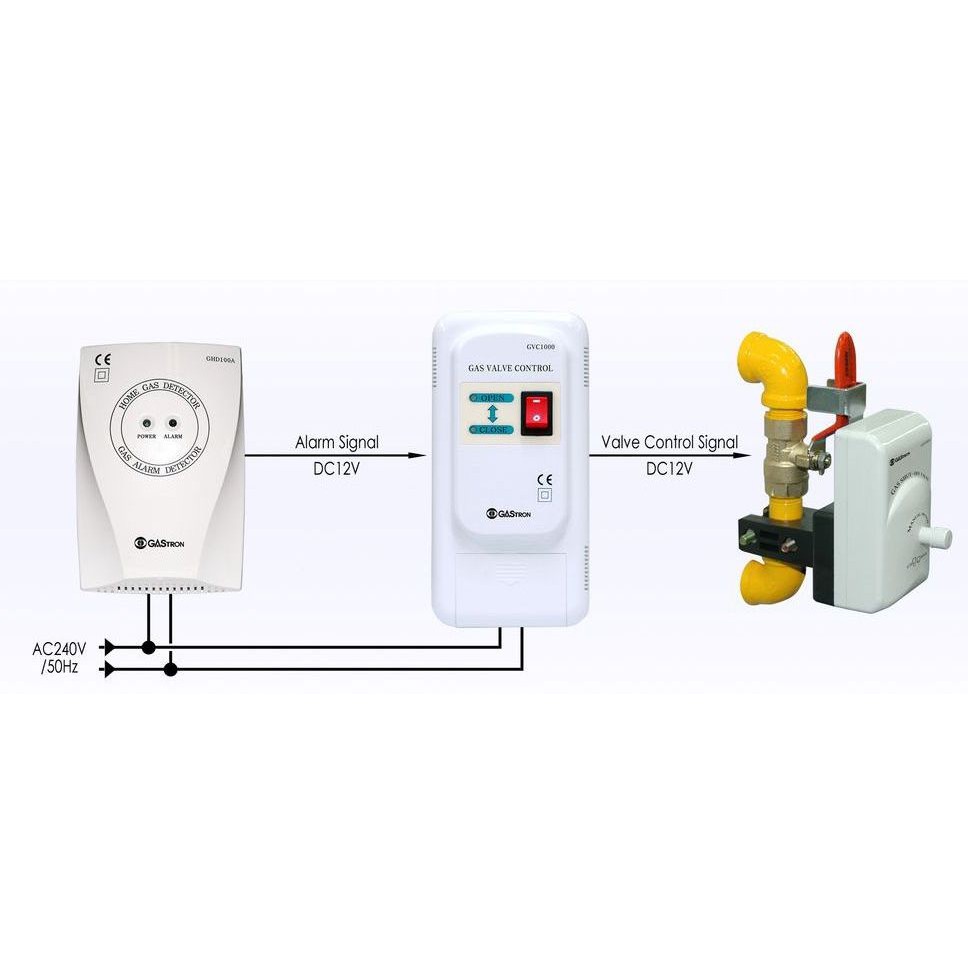

Shutting-off the gas by interlocking with Auto Shut Valve.
Detection Gas LPG, LNG, Alcohol, City Gas & etc.
Alarm Concentration LPG :600~4,500ppm, LNG : 600~12,500ppm
Detection type Diffusion
Measuring method Catalytic Combustion type
Response Time Less than 20 sec
Operation Temp. -20~50C
Operation Humidity 10~90% RH(Non-condensing)
Alarm signal Alarm lamp(yellow), Buzzer(audible), DC 12V Output
Response time T90 15sec , With 100% LEL methane applied
Approval CE approved
Dimension 73(w) x 109(H) x 45(D)mm
Weight 200g

Gambar produk
