Detail FY6600 60MHz DDS Function Arbitrary Waveform Signal Generator VCO

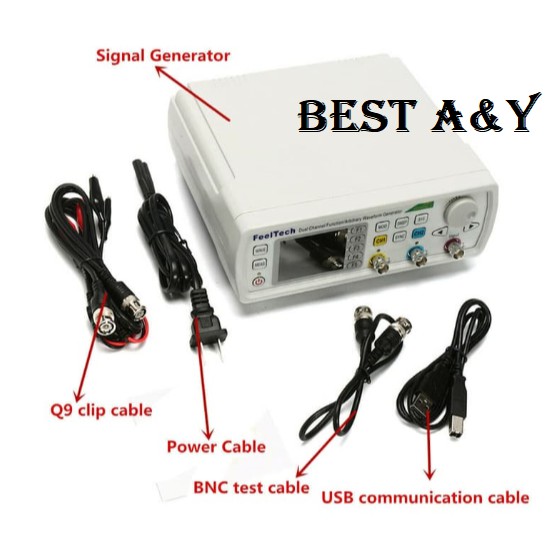

Kelengkapan:1 x FY6600 main unit
1 x Power cable
1 x USB wire
1 x BNC wire
1 x CD
1 x Q9 Clip wire
Specifications:
Model: FY6600
Frequency: 60Mhz
Screen display: 2.4" TFT
Color: Grey
Size: 194x178x69mm
Features:
~ The instrument uses 14-bit high-speed D/Aconverterchip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.
~ -10V~+10V DC Offset function. Resolution 0.01V.
~ Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192points* 14bits;
~ Sweep Function: It can sweep 4 properties of signals including frequency, amplitude, offset and duty cycle;It has Linear and Logarithm two sweep types; 0.01S~999.99S sweep time;Up, Down and roundtrip sweep directions.
~ VCO Function(Voltage Control Output):Can be achieved by an external input signal: voltage controlling frequency, voltage controlling amplitude, voltage controlling offset, voltage controlling duty cycle and PWM modulations.
~ Burst Output Function: There has Manual Trigger, internal CH2 Trigger, and External Trigger for your options. It can output1~1048575 pulse trains.
~ 100M Frequency meter function: It can measure frequency, period, pulse width and duty cycle. Max. frequency workable is 100MHz and Min. frequency workable is 0.01 Hz.
~ Standard dual full functional channels which are equivalent to two independent generators.
~ Channel SYNC Function:Support waveform copy and state copy between channels.
~ Support two or more signal generators connected to achieve multi-channel output, the maximum support 16-channel synchronous output, the phase between each channel can be adjusted.
~ Precisely adjust the phases of the two channels,Precision can be 0.1.
~ Minimum amplitude resolution can be up to 1 mV.Amplitude range is 0~20Vpp.
~ Duty-cycle of each channel can be adjusted independently0.1%-99.9%, the adjusting resolution is 0.1%.

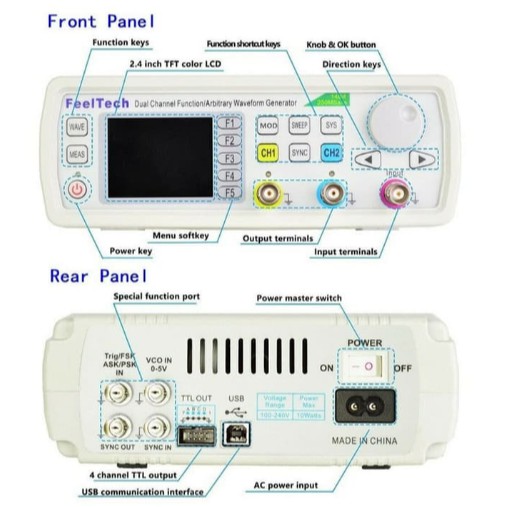

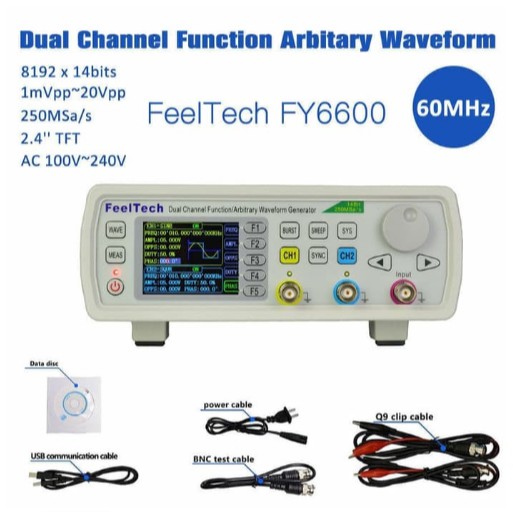

Gambar produk
