FUTABA S3003 SERVO MOTOR SERVO FUTABA

Detail FUTABA S3003 SERVO MOTOR SERVO FUTABA

Hi #RekanEasyWare ...
EasyWare Part#: EP001746

*** Bismillah,

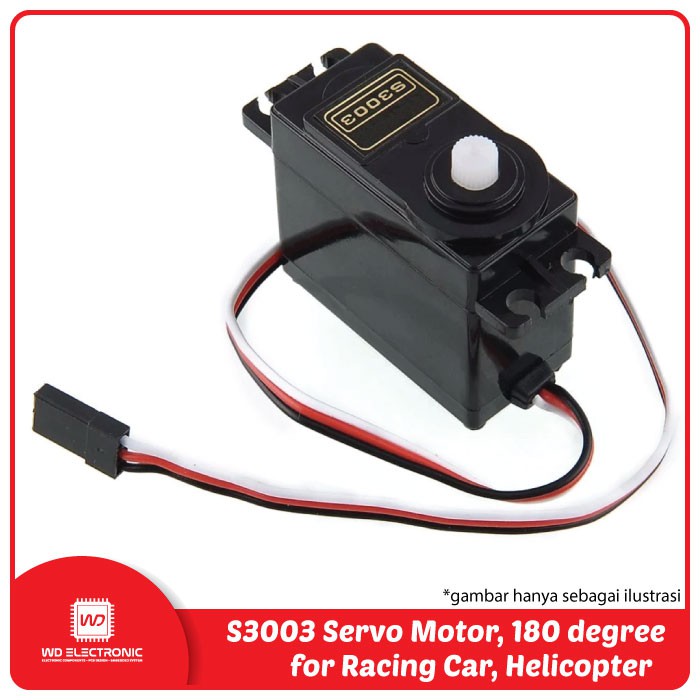

Foto asli produk ada digambar ketiga yah, ini varian 180 derajat yah.
Gambar tersebut kami dapat dari sumber di internet. Jika ingin gambar asli, silahkan chat kami terlebih dahulu. Terima kasih ***


FITUR :
* Cheap and strong.
* Easy to work with not need to program.
* Popular, Lots of projects had been done before.
* This servo motor can be used directly with Arduino's servo motor libraries.

## **SPESIFIKASI :**
* Model: Futaba S3003 Clone
* Dead Band: 0.100 ms
* Control System: +Pulse Width Control
* Working Frequence: 20ms period / 50hz (Analog Control)
* (RX) Required Pulse: 3.0 ~ 5 Volt Peak to Peak Square Wave
* Operating Voltage: 4.8 ~ 6 V DC Volts
* Operating Temperature Range: -0 to + 55 Degree C
* Operating Speed (4.8v): 0.200 sec/60 degrees at no load
* Operating Speed (6v) 0.160 sec/60 degrees at no load
* Stall Torque (4.8v): 9.4kg/cm
* Stall Torque (6v): 11kg/cm
* Motor Type: Brushed Motor
* Potentiometer Drive: Direct Drive
* Bearing Type: No Bearing
* Gear Type: Plastic Gears
* Case Material: Plastic
* Programmable: NO
* Connector Wire Length: 32.0cm (12.6 inch)
* Dimensions: 40.719.742.9mm

KELENGKAPAN :
- 1pcs Futaba S3003 Servo Motor

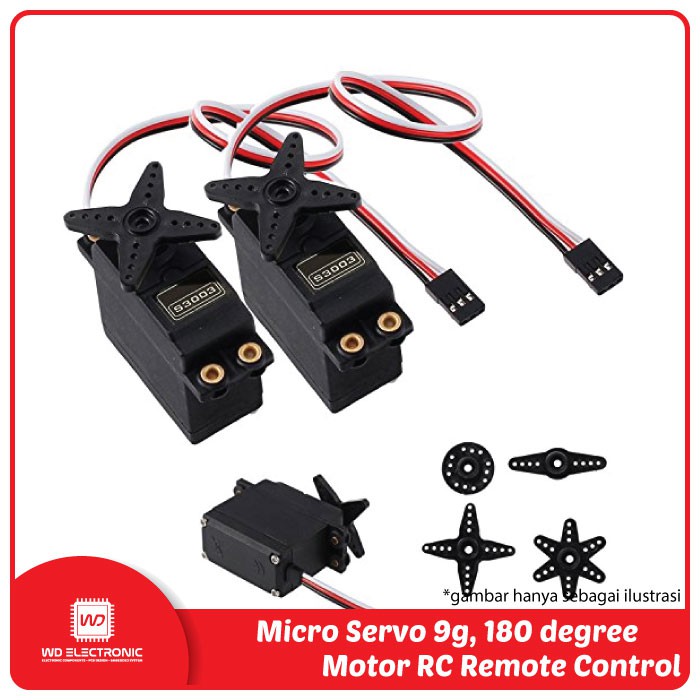

Gambar produk
