Futaba S3003 Motor Servo

Detail Futaba S3003 Motor Servo

Deskripsi Futaba S3003 Motor Servo
A servo motor is a rotary actuator that allows for precise control of the angular position. It consists of a motor coupled to a sensor for position feedback. It also requires a servo drive to complete the system. The drive uses the feedback sensor to precisely control the rotary position of the motor. This is called a closed-loop operation. By running the system closed-loop, servo motors provide a high-performance alternative to stepper and AC induction motors.

Features/Specs:
• Control System: +Pulse Width Control 1520usec Neutral
• Current Drain (4.8V): 7.2mA/idle
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Current Drain (6.0V): 8mA/idle
• Operating Voltage: 4.8-6.0 Volts
• Direction: Counter Clockwise/Pulse Traveling 1520-1900usec
• Operating Temperature Range: -20ºC to +60ºC
• Motor Type: 3 Pole Ferrite
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Potentiometer Drive: Indirect Drive
• Operating Speed (6.0V): 0.19sec/60 degrees at no load
• Bearing Type: Plastic Bearing
• Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
• Gear Type: All Nylon Gears
• Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
• Connector Wire Length: 12″
• Operating Angle: 45 Deg. one side pulse traveling 400usec

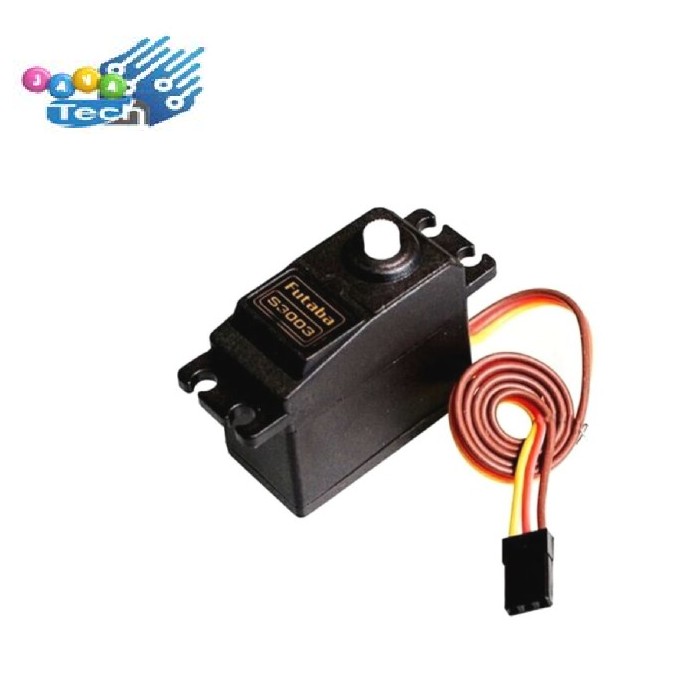

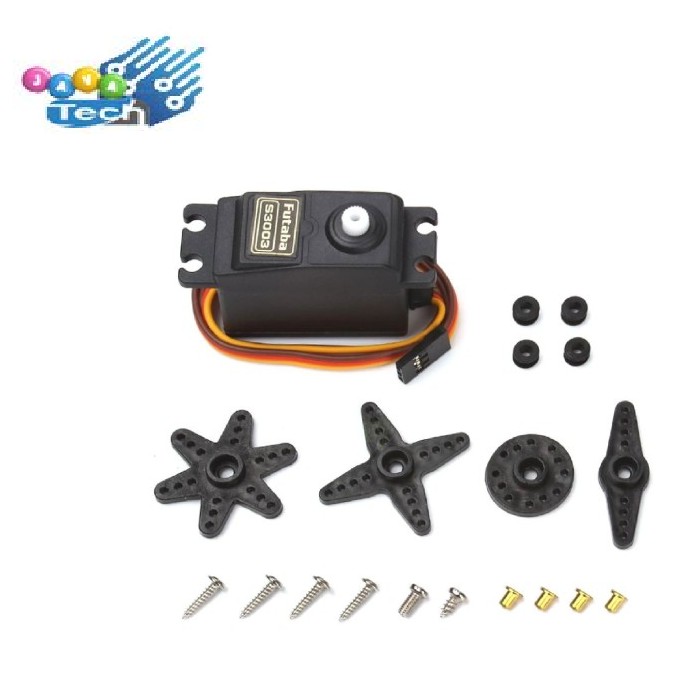

Gambar produk
