Fusion Splicer TUMTEC 13MMT S1 Splicing Machine Fiber Optik

Detail Fusion Splicer TUMTEC 13MMT S1 Splicing Machine Fiber Optik

Garansi 1 Tahun..!!

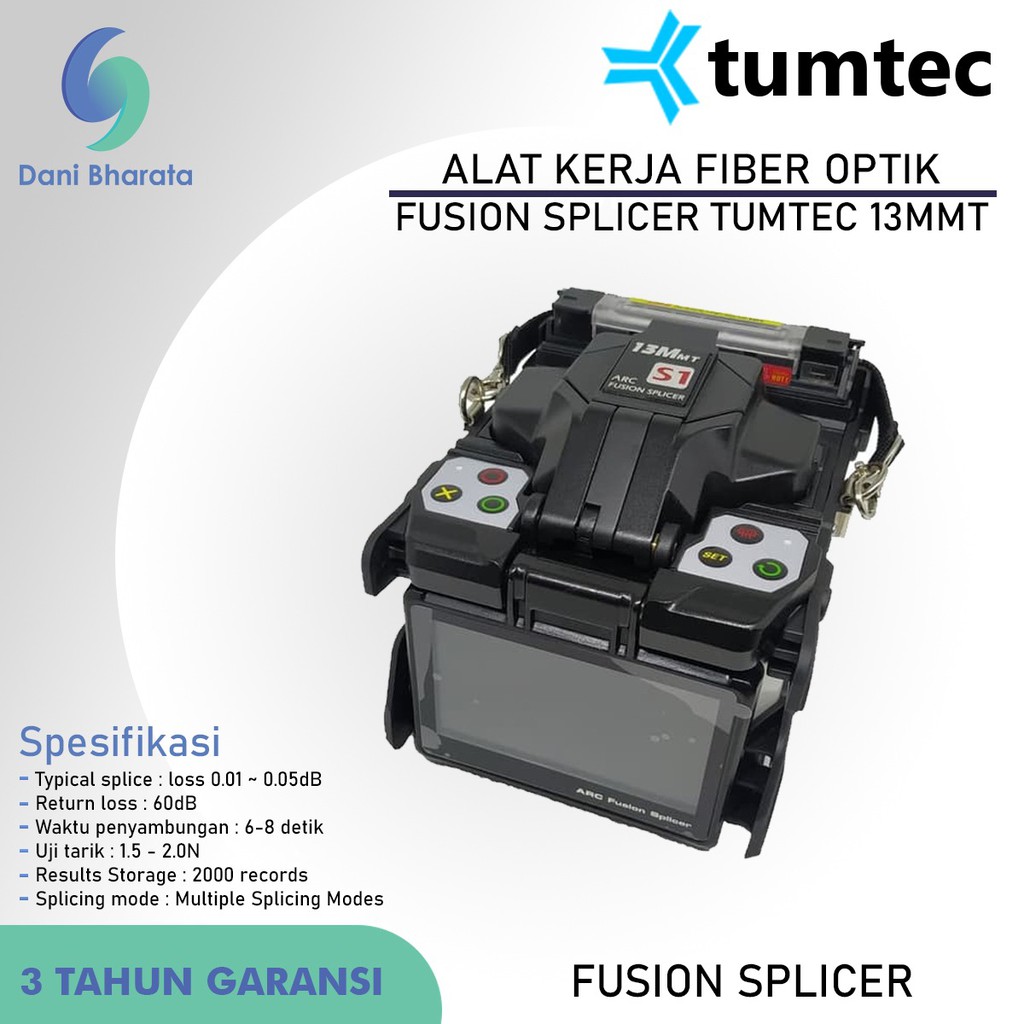

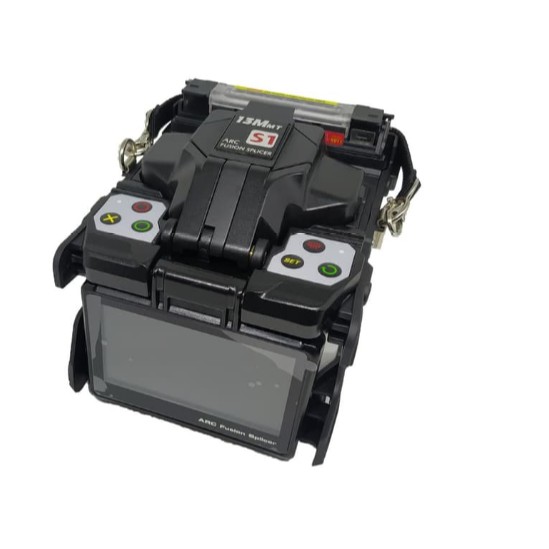

Fusion Splicer TUMTEC 13MMT-S1

Dapat di aplikasikan dengan penyambungan sistem SOC

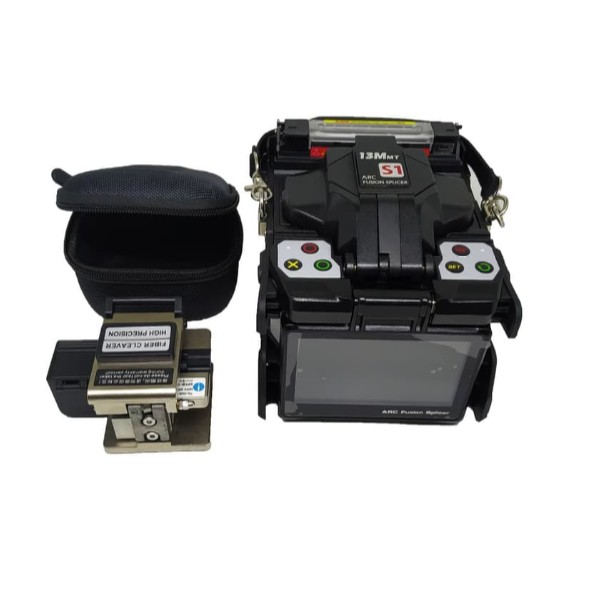

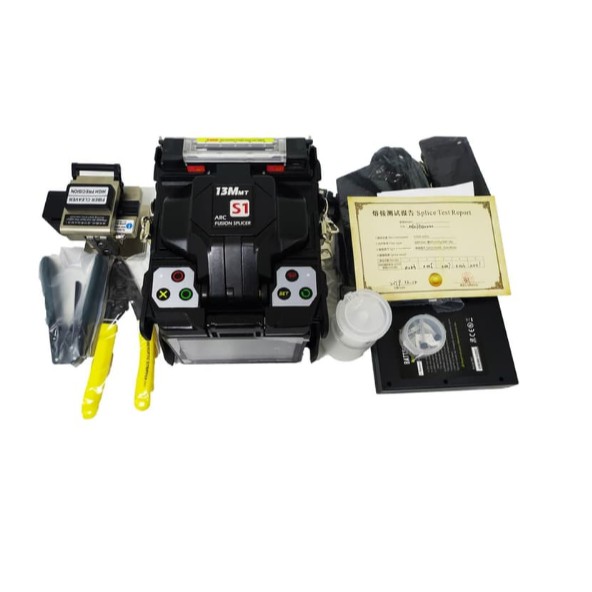

Kelengkapan : Charger + Baterai 5200mAh + Stripper + Cleaver + Stripper Dropcore + SOC holder Elektroda + Botol alcohol + Box

Model : 13MMT
Appicable : Fibers SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible : Fiber/Cable 0.25-3.0mm/Indoor Cable
Cleaved Length Coating Diameter : 0.125-1mm/Cleave length:5-16mm
Splicing Mode : Multiple Splicing Modes
Typical Splice : Loss 0.01-0.05db
Return Loss : 60db
Lighting : 3 powerful white LED and illuminated keypads
Splicing : Time 6-8 seconds
Estimated Splice Loss : Available
Protection Sleeve : Length 20-60mm
Heating Mode : Multi Heating Modes
Heating Time Typical Heating Time: 15s
Results Storage 2000 records
Tension Test 1.5-2.0N
Operating Condition Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50 max wind 15m/s
Storage Condition 0~95% relative humidity, -40~80
Power Supply AC Input : 100-240V,DC Input 12-15V
No. of Splice/Heating with Battery 4800mAh battery capacity, typical above 200 times(splice+heat)
Operating Methods Button/Touch Screen
Automatic Calibration Automatic ARC calibration by air pressure and temperature
Electrode Life 3500 ARCS, can be extended by using an electrode grinder

Gambar produk
