fusion splicer tumtec 13Mmt s1

Detail fusion splicer tumtec 13Mmt s1

produk terbaru dari tumtec:
splicer tumtec 13Mmt-S1+
model baru kokoh dan kuat,layar touchscreen cocok untuk pengerjaan ftth
Specification for Fusion Splicer Tumtec 13MT 13MMT
Model 13MMT
Number of Fiber Single
Appicable Fibers SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable 0.25-3.0mm/Indoor Cable
Cleaved Length Coating Diameter: 0.125-1mm/Cleave length:5-16mm
Splicing Mode Multiple Splicing Modes
Typical Splice Loss 0.01-0.05db
Return Loss 60db
Lighting 3 powerful white LED and illuminated keypads
Splicing Time 6-8 seconds
Estimated Splice Loss Available
Protection Sleeve Length 20-60mm
Heating Mode Multi Heating Modes
Heating Time Typical Heating Time: 15s
Results Storage 2000 records
Tension Test 1.5-2.0N
Operating Condition Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50 max wind 15m/s
Storage Condition 0~95% relative humidity, -40~80
Display 90bi-directional view,4.3 color high resolution display with touch screen
Fiber View & Magnification X,Y,XY,X/Y:380Magnification
Power Supply AC Input 100-240V,DC Input 12-15V
No. of Splice/Heating with Battery 4800mAh battery capacity, typical above 200 times(splice+heat)
Operating Methods Button/Touch Screen
Automatic Calibration Automatic ARC calibration by air pressure and temperature
Electrode Life 3500 ARCS, can be extended by using an electrode grinder
Terminal USD 2.0/Phone Jack 140W*165L*160Hmm (including rubber Bumper)
Dimension
140W*165L*148Hmm (including rubber Bumper)
130W*165L*138Hmm (excluding rubber Bumper)

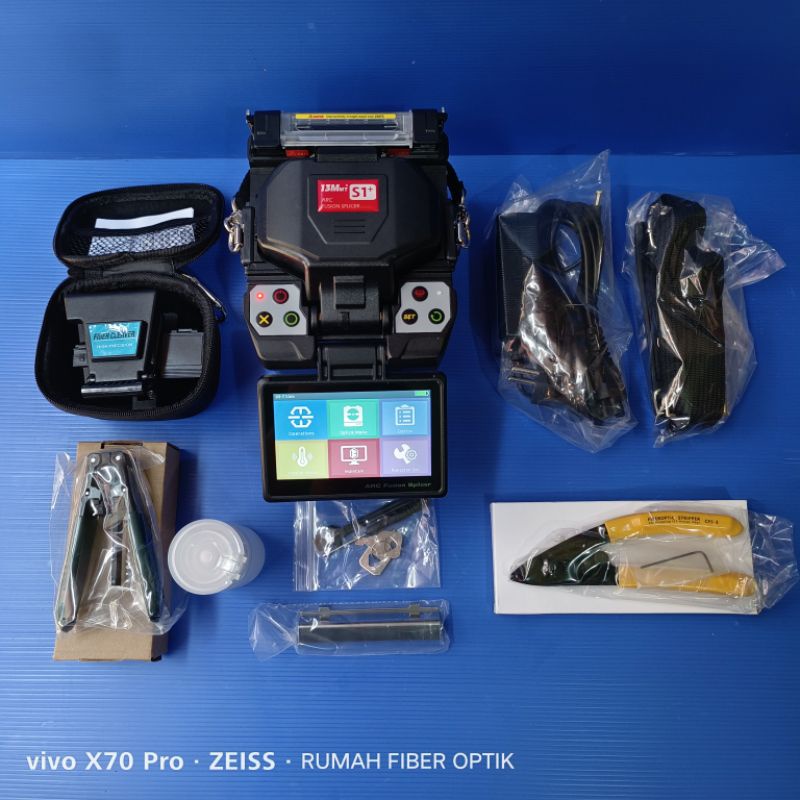

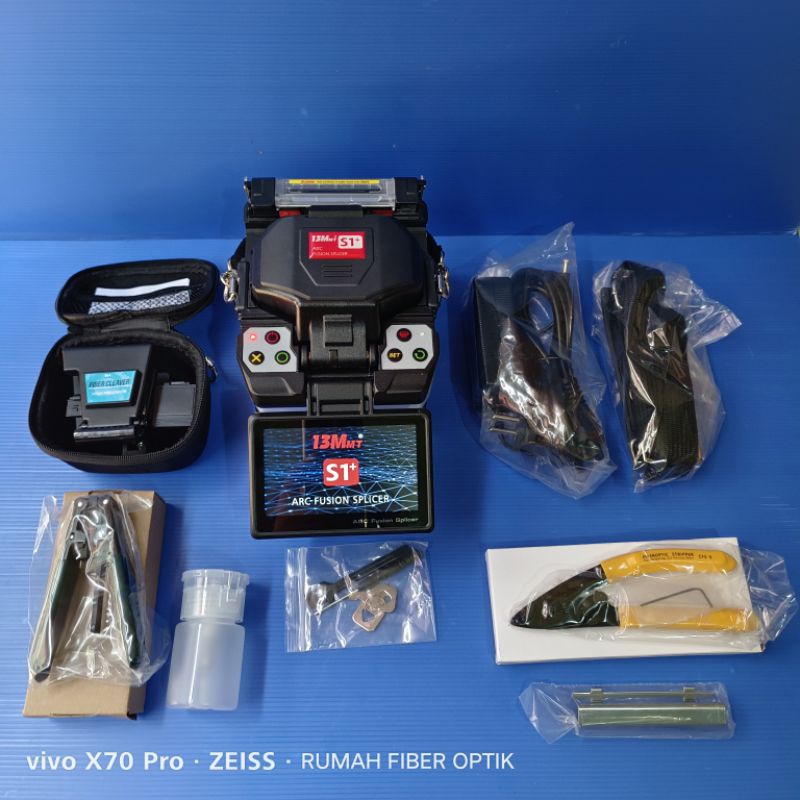

Kelengkapan
Charger
Batere 5200mAh
Striper
Cleaver
Tang dropcore
Soc holder
Elektroda
Botol alkohol
Box

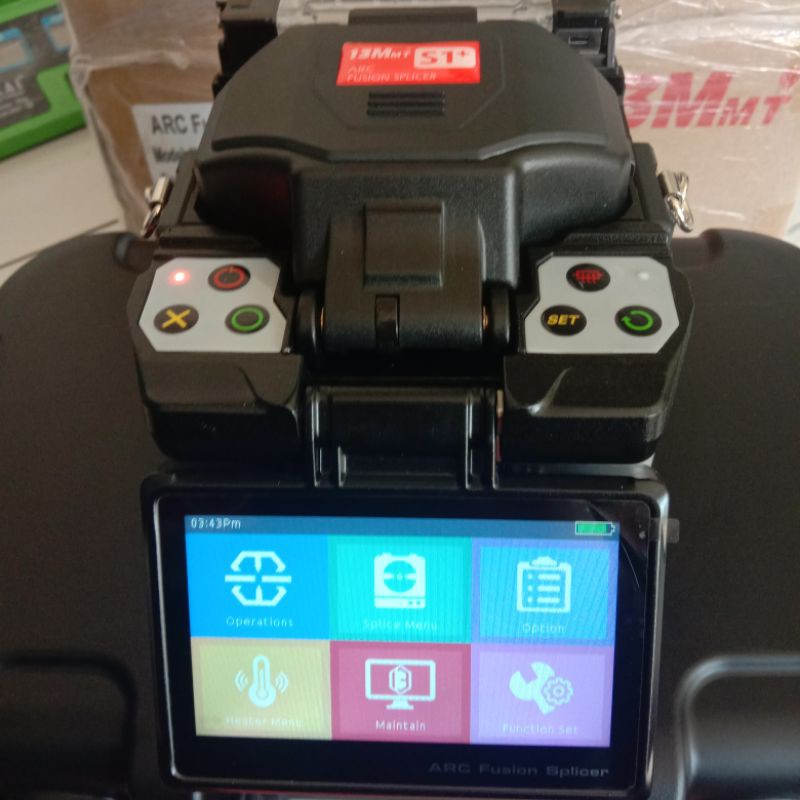

Gambar produk
